The following example illustrates the interaction between
the various tyre settings and how the resulting information
is relayed by the monitoring system for display in the app�
NOTE: The Alert Indicator uses LED flashes and audible
(beep) tones to deliver tyre event notifications�

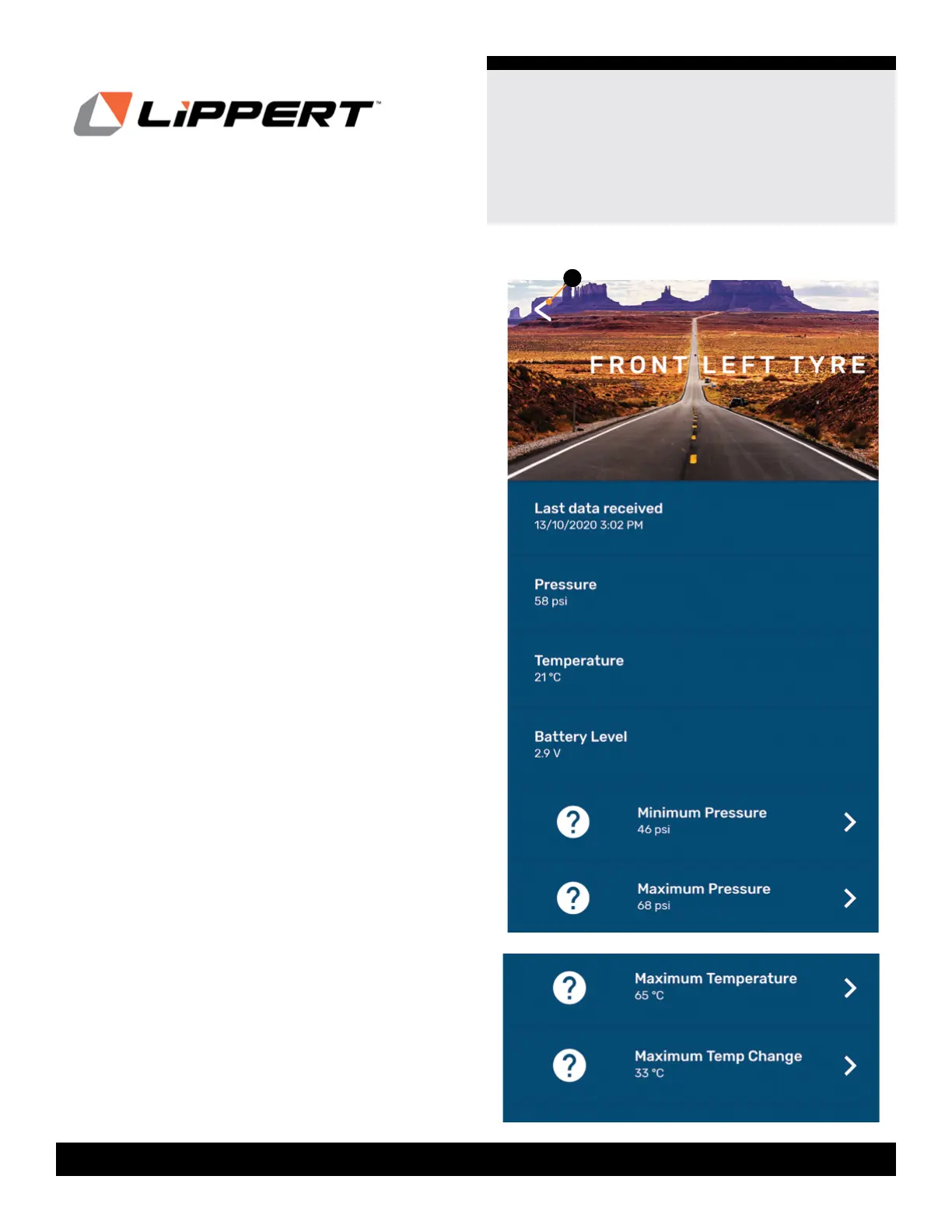

1. Select a tyre by tapping its information button to launch
its settings window FRONT LEFT TYRE�
A. In this example, the reported current tyre Pressure is
listed as “58 psi” (Fig.21)�
NOTE: Stem Sensor Pressure Reading Tolerance: +/-1�5
psi (+/-10�3 kPa)� For example—because of differences in
accuracy and conversion between a Stem Sensor and a
tyre gauge—actual tyre pressure at 38 psi (262 kPa) may
be reported by the Stem Sensor as 36 psi (248�2 kPa)
while the tyre gauge may report 40 psi (275�8 kPa)�
B. Compare the tyre’s minimum/maximum pressure range
(46 - 68 psi) against the reported tyre pressure (58 psi)�
Make sure tyre pressures are within recommended limits�
C. If the Minimum Pressure Threshold requires
adjusting, tap the next arrow to launch its settings window�
Scroll through the window to a desired limit and select it
(Figs.21 and 23)�
D. If the Maximum Pressure Threshold requires
adjusting, tap the next arrow to launch its settings window�
Scroll through the window to a desired limit and select it
(Figs.21 and 24)�
E. The Maximum Temperature Threshold and the
Maximum Temperature Change can also be adjusted
(Figs.22, 25 and 26)� Scroll through the window to access
the temperature adjustments�
NOTE: Stem Sensor Temperature Reading Tolerance:
+/-3 °C (+/-5�4 °F)� For example, if a Stem Sensor reports
tyre temperature at 29 °C (85 °F), actual tyre temperature
may be 32–26 °C (90�4–79�6 °F)�
NOTE: Stem Sensor Working Range: 85 to -20 °C
(185 to -4 °F)�
