box end wrench, tighten the screws and

torque them to 21-25 inch-pounds.

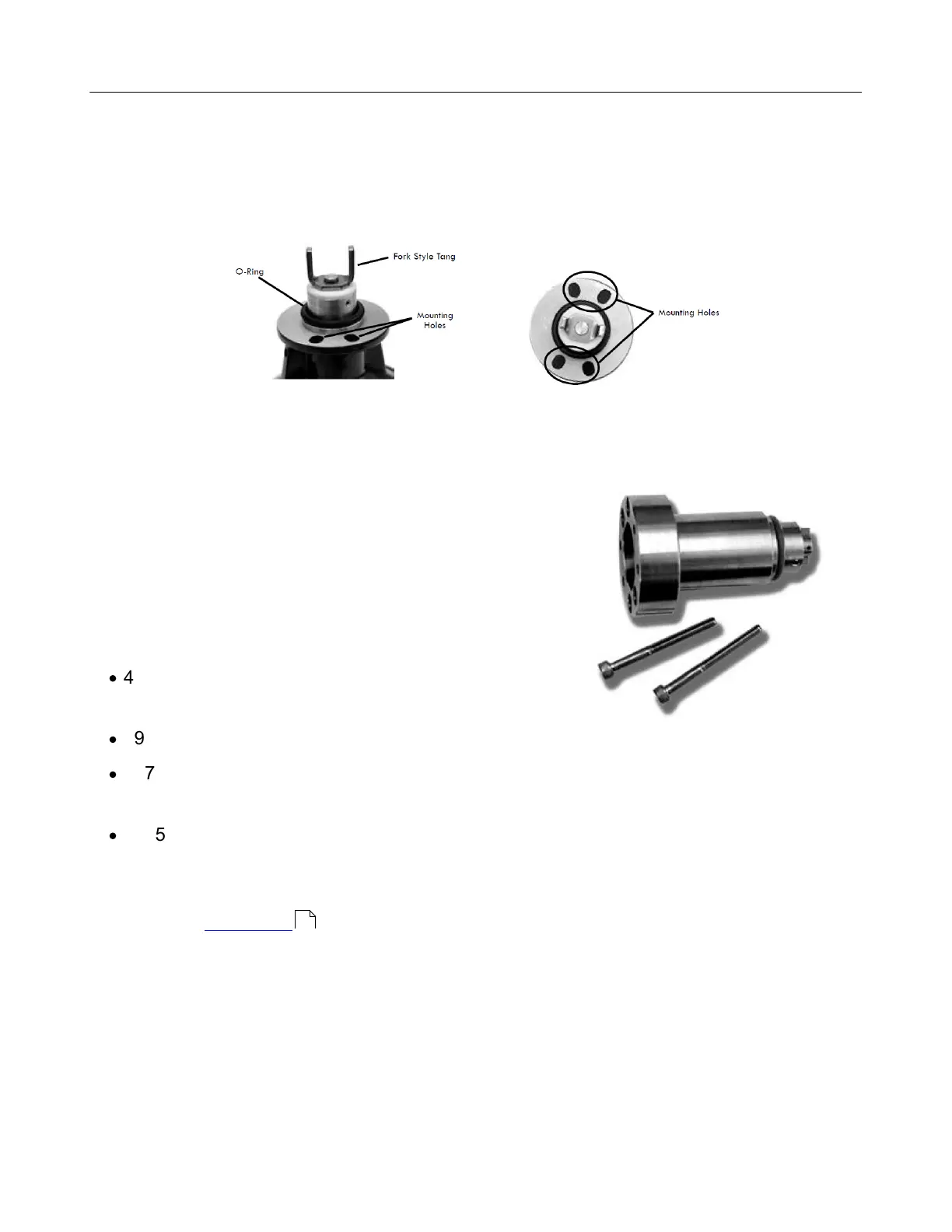

POD Extension Kit Installation

The POD Extension is used when the meter has an

integral counter adapter bracket or for high temperature

applications. The POD Extension is used to extend the

connection away from the meter.

There are four POD Extension models available:

49754 POD1 or POD5 – Fork Drive with Buna-N O-

Ring

49756 POD2 – Fork Drive with Teflon O-Ring

49757 POD1 or POD5 – Blade Drive with Buna-N

O-Ring

49759 POD2 – Blade Drive with Teflon O-Ring

Once the existing hardware has been removed as described in the Retrofit Installations

section of the Installation topic above, the POD Extension can be installed.

NOTE: Regardless of the POD Extension being used, the POD Pulser must be a FORK drive

pulser.
