1. Verify that the proper POD Extension Model was
obtained by comparing the driver tang on the POD
Extension to the driver tang on the packing gland
that was removed in Step 5 of the Retrofit
Installations section of the Installation topic
above. There are two types of Packing Gland/POD
Extension driver tangs: blade type and fork type.
Blade type packing glands must be replaced with
blade type POD Extensions. Fork type packing
glands must be replaced with fork type POD
Extensions.

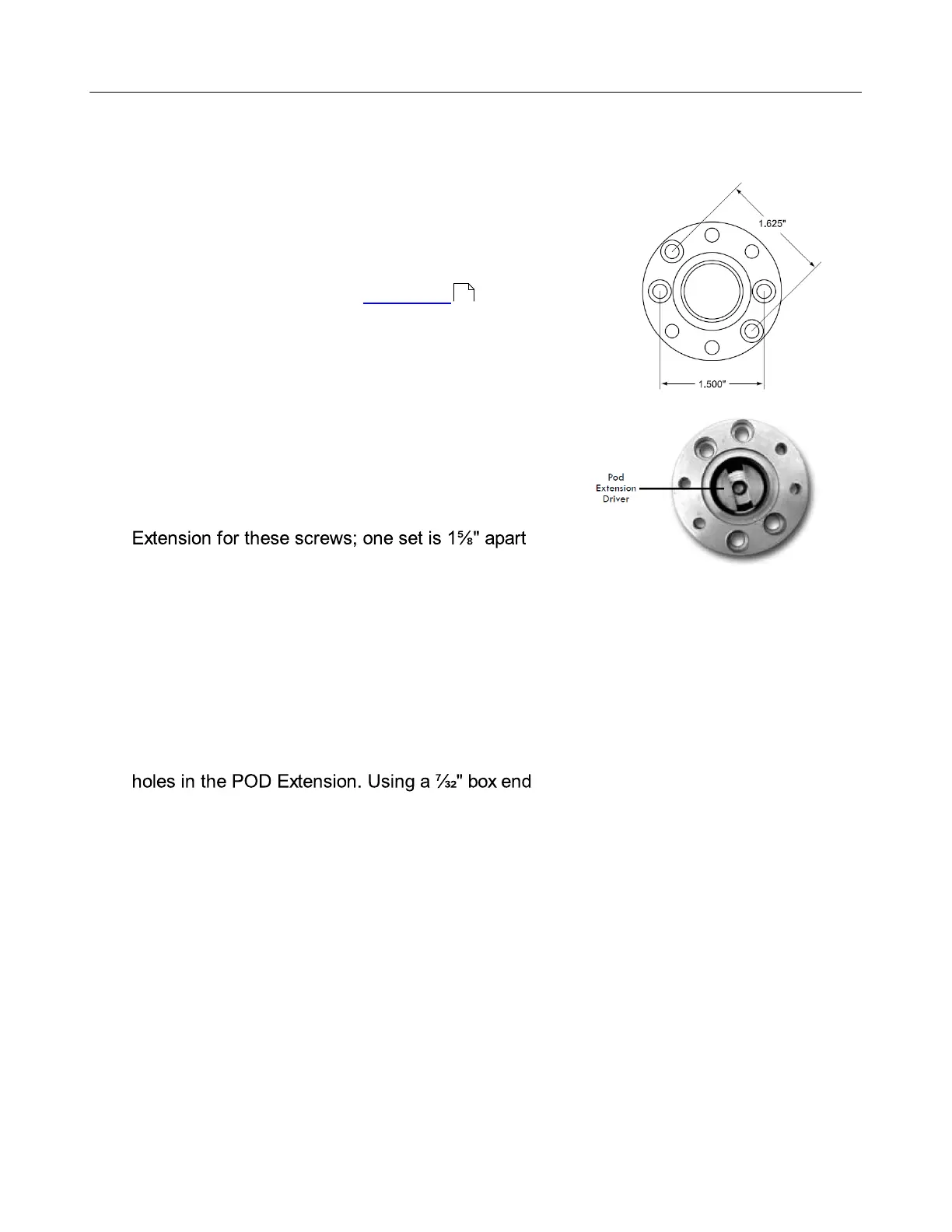

2. Install the POD Extension using the two screws
provided. There are two sets of holes in the POD
and the other is 1½" apart. Line up the holes with
the meter to determine which set to use. Tighten
the screws and torque them to 21-25 inch-pounds.
3. Once the POD Extension is in place, the POD may
be installed onto the POD Extension. Align the
POD Fork Tang with the internal POD Extension
Driver. Use the two screws provided to mount the
POD to the POD Extension using two of the tapped
wrench, tighten the screws and torque them to 21-
25 inch-pounds.
