Designing a System

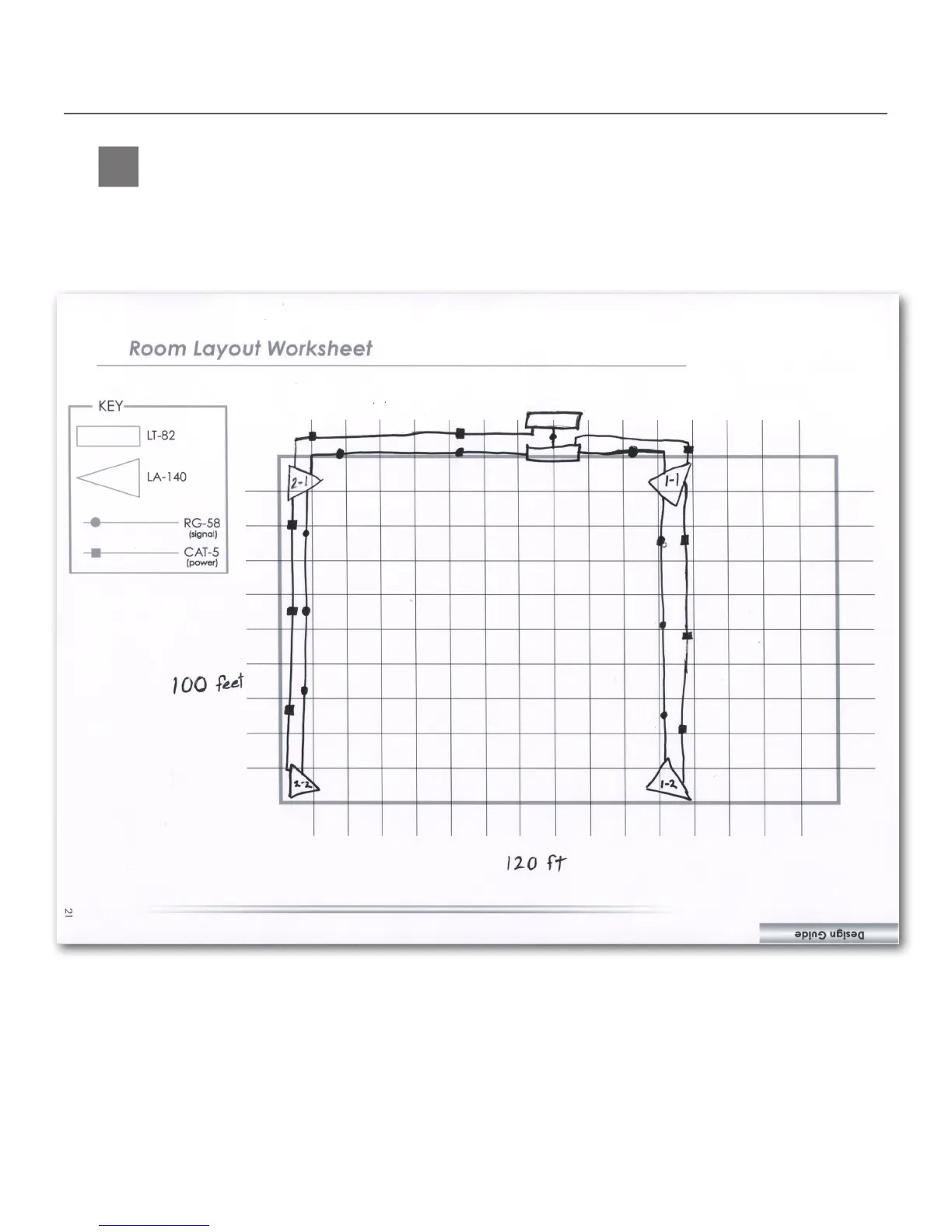

Determine the number of radiators required based on the size and shape of the room. Based on step two, it is
recommended that you draw the room out indicating the location of each radiator in the room and cable runs from
the transmitter(s) and power supplies (if any) to the radiator. We have provided the room layout worksheet for you
to do this towards the back of this design guide. See example below:
4
Determine the number of radiators required
