LA-140 – Mounting your Radiator
Overview
There are several dierent congurations that the radiator can be mounted in. All of them except for
the “Dual Radiator Mounting Congurations” can be accomplished using the mounting hardware
included with the LA-140 IR Radiator Kit (the LA-342 Dual Mounting Bracket is not included with the kit
but is required for mounting two radiators side-by-side). Read through the following mounting strategies
to determine which works best for your application and then follow the instructions for mounting.

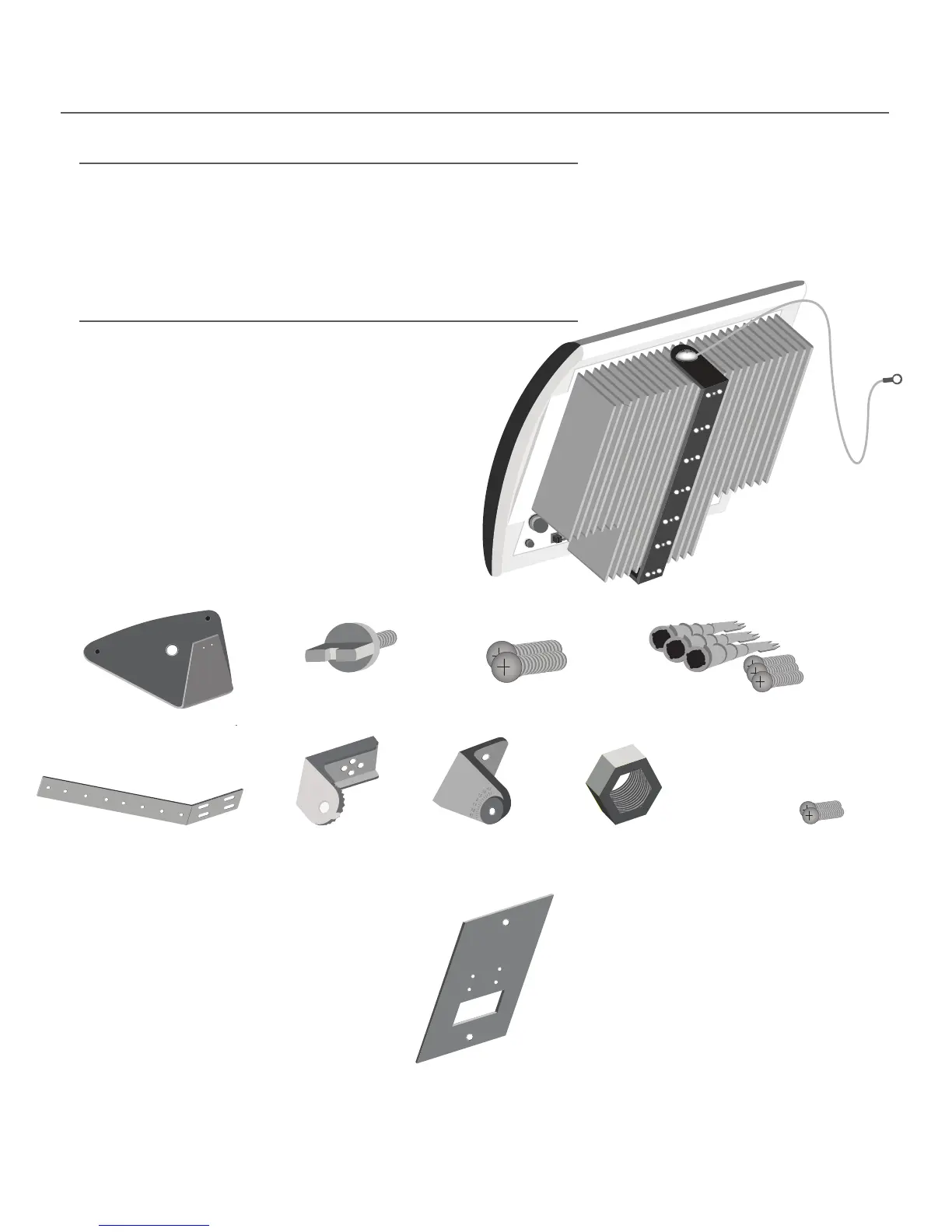

Mounting Hardware Pieces
Wall Box Plate
Universal Bracket
Tilt Arm “A”
Tilt Arm “B”
Tilt Bolt
Corner Mount Bracket
Universal Stand Nut
Wall Box Plate Mounting Screws (2)
Hollow Wall Anchors with Screws (3 of each)
Mounting Hardware Screws (10)
Security Cable (attached to radiator)
NOTE: The parts in this section are not shown to scale.
Universal Bracket
Tilt Bolt Wall Box Plate Mounting Screws
Hollow Wall Anchors with Screws
Tilt Arm “A” Tilt Arm “B” Universal Stand NutCorner Mount Bracket
Wall Box Plate
Mounting Hardware Screws
