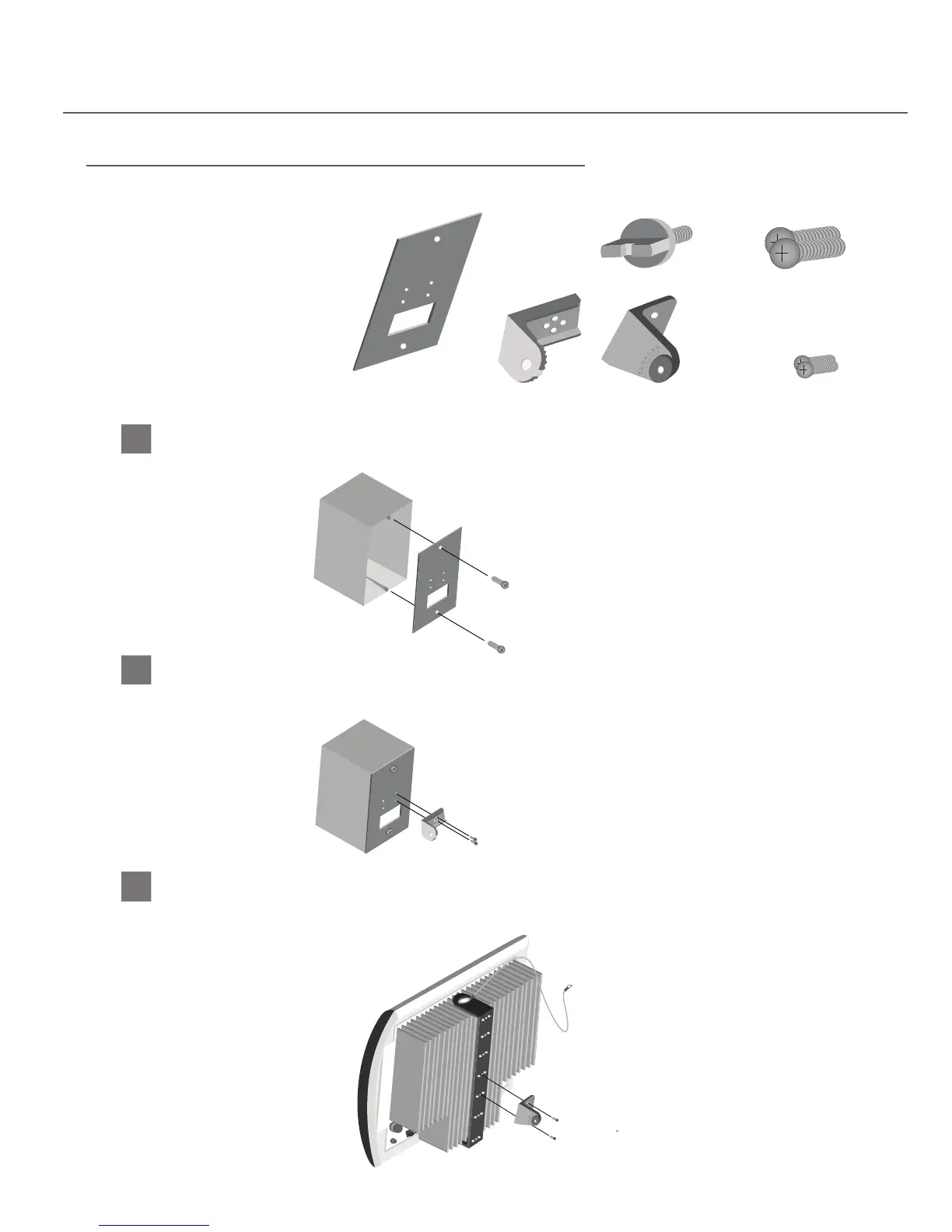

Wall Box Mounting
The wall box mount is a preferred mounting option for the LA-140 IR Radiator. The wall box mount allows
secure mounting of the radiator as well as for allowing the necessary cables to be placed inside the wall.
Pieces Used:
• Wall Box Plate
• Mounting Hardware Screws
• Tilt Arm “A”
• Tilt Arm “B”
• Tilt Bolt
• Mounting Hardware Screws
Installation Steps
1
Screw Wall Box Plate to wall box using included Mounting Hardware Screws.
Screw Wall Box Plate to wall
2
Attach Tilt Arm “A” to Wall Box Plate using included Mounting Hardware Screws. Attach Tilt Arm “A” in such a
manner that it sits across Wall Box Plate, not up and down on plate.
Attach Tilt Arm “A”
3
Attach Tilt Arm “B” to Swing Arm of radiator (swing arm comes attached to rear of radiator) using included
Mounting Hardware Screws. Any of the seven holes in Swing Arm can be used for this.
Attach Tilt Arm “B”
LA-140 – Mounting your Radiator
Wall Box Plate
Wall Box Plate Mounting Screws
Tilt Bolt
Tilt Arm “A”
Tilt Arm “B”
Mounting Hardware Screws
