40
l
4

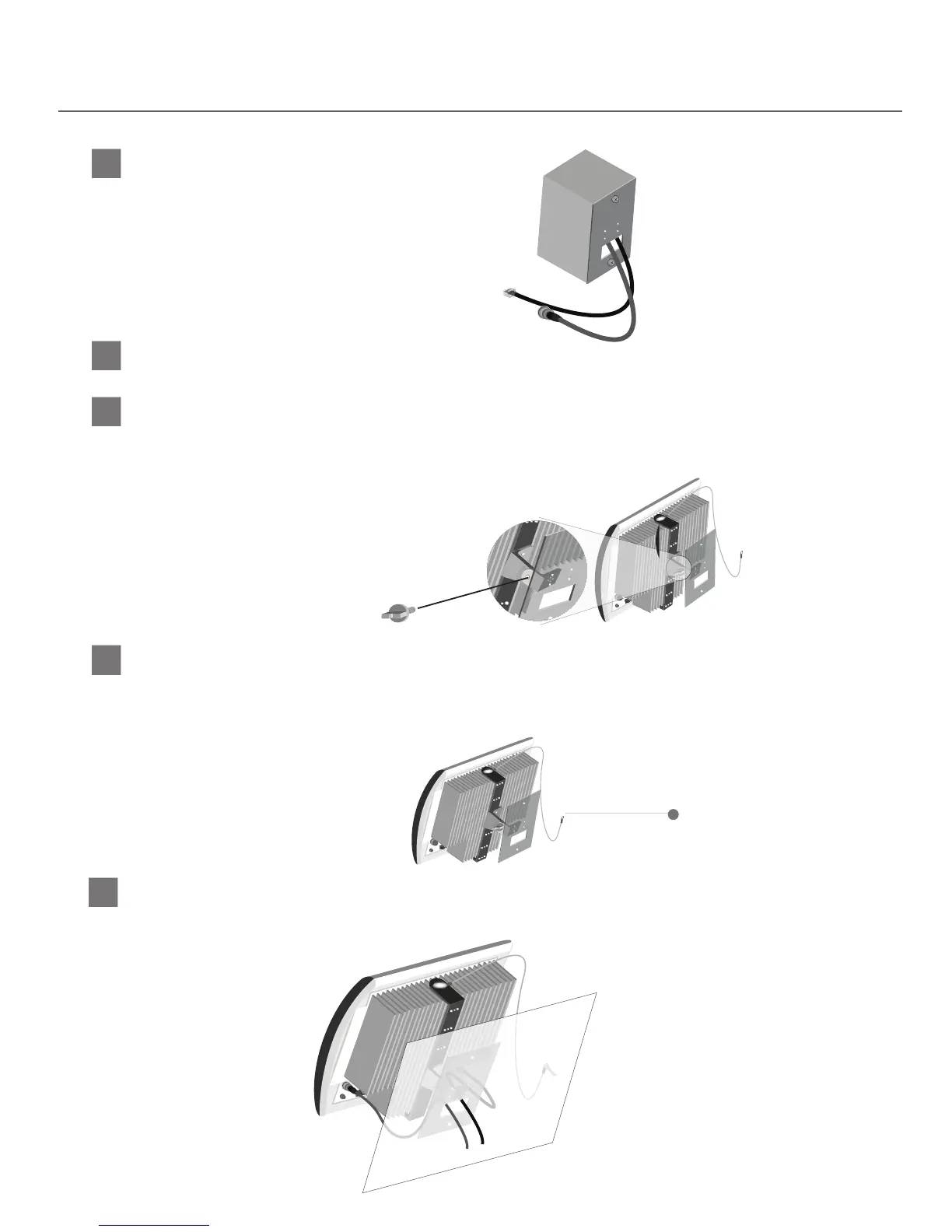

Pull CAT-5 and Coaxial cables through hole in Wall Box Plate
Pull CAT-5 and Coaxial cables through (if necessary)
5
Determine correct angle setting to use for the radiator, see page 11 of designing a system.
Determine correct angle
6
Attach Radiator to Wall Box Plate using Tilt Arm “A” and Tilt Arm “B”. Use the Tilt Bolt to fasten the tilt arms together.
Attach Radiator to Wall Box Plate
8
Connect CAT-5 and Coaxial cables to appropriate locations on radiator.
Connect CAT-5 and Coaxial cables
LA-140 – Mounting your Radiator
ATTENTION: Note the angle measurements on Tilt Arm “B” and verify that the correct angle is selected
before fully tightening Tilt Bolt.
7
The radiator has a safety cable attached to the top of the swing arm. This cable must be attached to a secure base to
prevent the radiator from falling in the event of a mounting hardware component failing. Possible injury to persons and
damage to the radiator is prevented by securely attaching this cable to a base.
Attach Safety Mounting Cable
attach to a secure base
To Next Page
