LA-140 – Mounting your Radiator
Hollow Wall Mounting
A hollow wall installation is not as preferrable as a wall box installation but can be done without problems.
The hollow wall installation still requires the Wall Box Plate to be used.

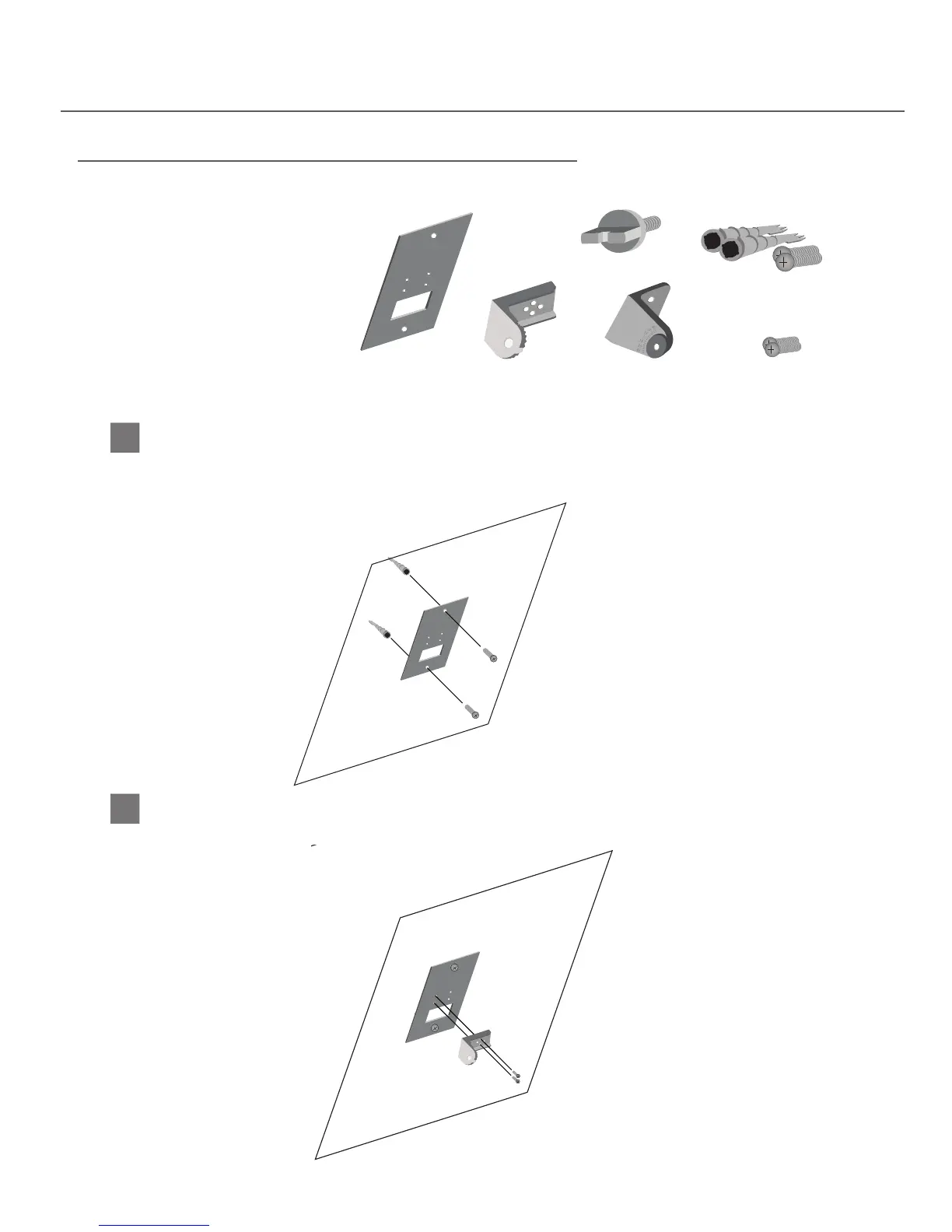

Pieces Used:
• Wall Box Plate
• Hollow Wall Mounting Screws
• Tilt Arm “A”
• Tilt Arm “B”
• Tilt Bolt
• Mounting Hardware Screws
Installation Steps
1
Fasten Wall Box Plate securely to wall using Hollow Wall Mounting Screws.
ATTENTION: The Wall Box Plate must be used in this installation to provide a secure base for the radiator
to be mounted on.
Fasten Wall Box Plate to wall
2
Attach Tilt Arm “A” to Wall Box Plate using included Mounting Hardware Screws. Attach Tilt Arm “A” in such a manner
that it sits across Wall Box Plate, not up and down on plate.
Attach Tilt Arm “A”
Wall Box Plate
Tilt Bolt
Tilt Arm “A”
Tilt Arm “B”
Mounting Hardware Screws
Hollow Wall Anchors with Screws
To Next Page
