42
l
3

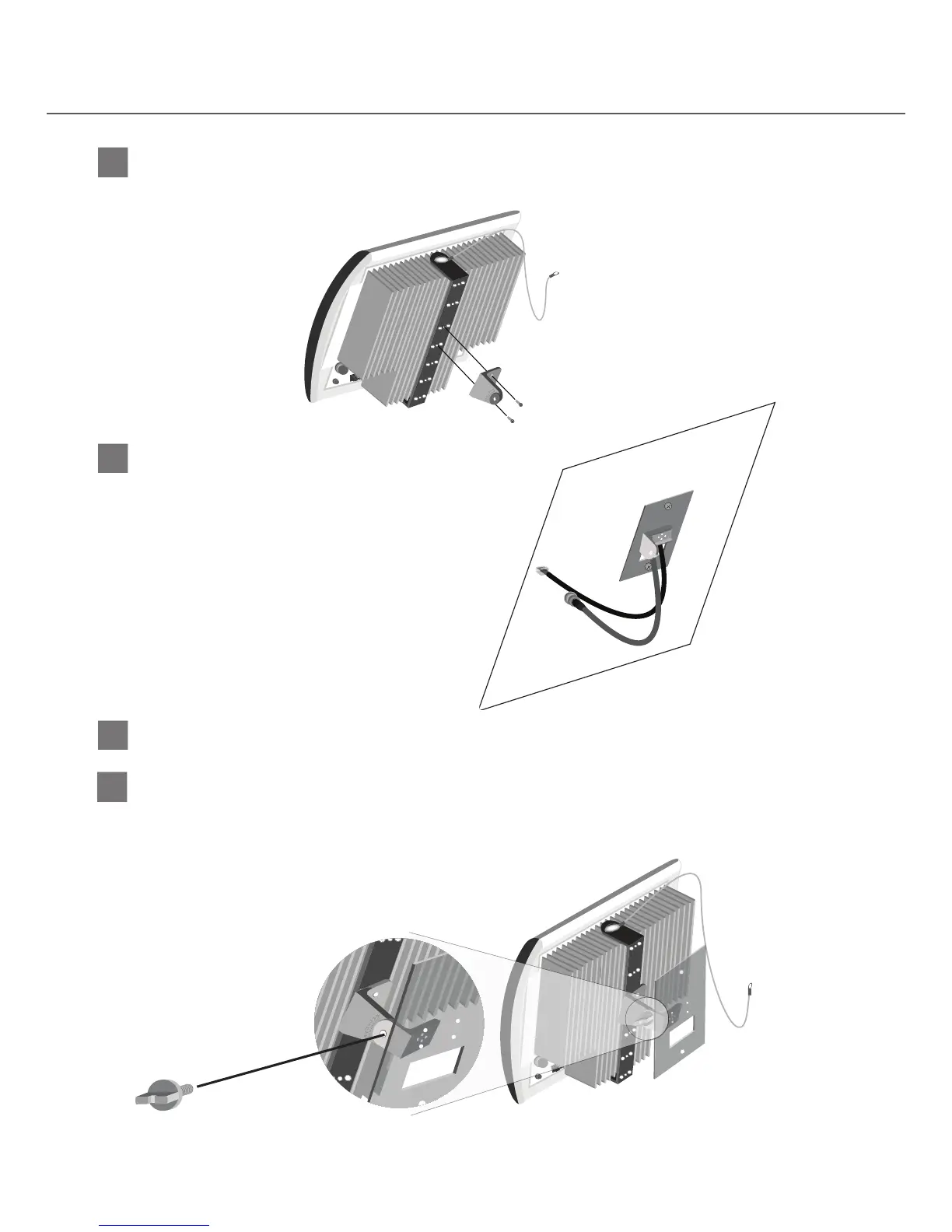

Attach Tilt Arm “B” to Swing Arm of radiator (swing arm comes attached to rear of radiator) using included Mounting Hard-
ware Screws. Any of the seven holes in Swing Arm can be used for this.
Attach Tilt Arm “B”
4
Pull CAT-5 and Coaxial cables through hole in Wall Box Plate.
Pull CAT-5 and Coaxial cables through (if necessary)
5
Determine correct angle setting to use for the radiator, see page 11 of designing a system.
Determine correct angle
6
Attach Radiator to Wall Box Plate using Tilt Arm “A” and Tilt Arm “B.” Use the Tilt Bolt to fasten the tilt arms together.
ATTENTION: Note the angle measurements on Tilt Arm “B” and verify that the correct angle is selected
before fully tightening Tilt Bolt.
Attach Radiator to Wall Box Plate
LA-140 – Mounting your Radiator
