LA-140 – Mounting your Radiator
5

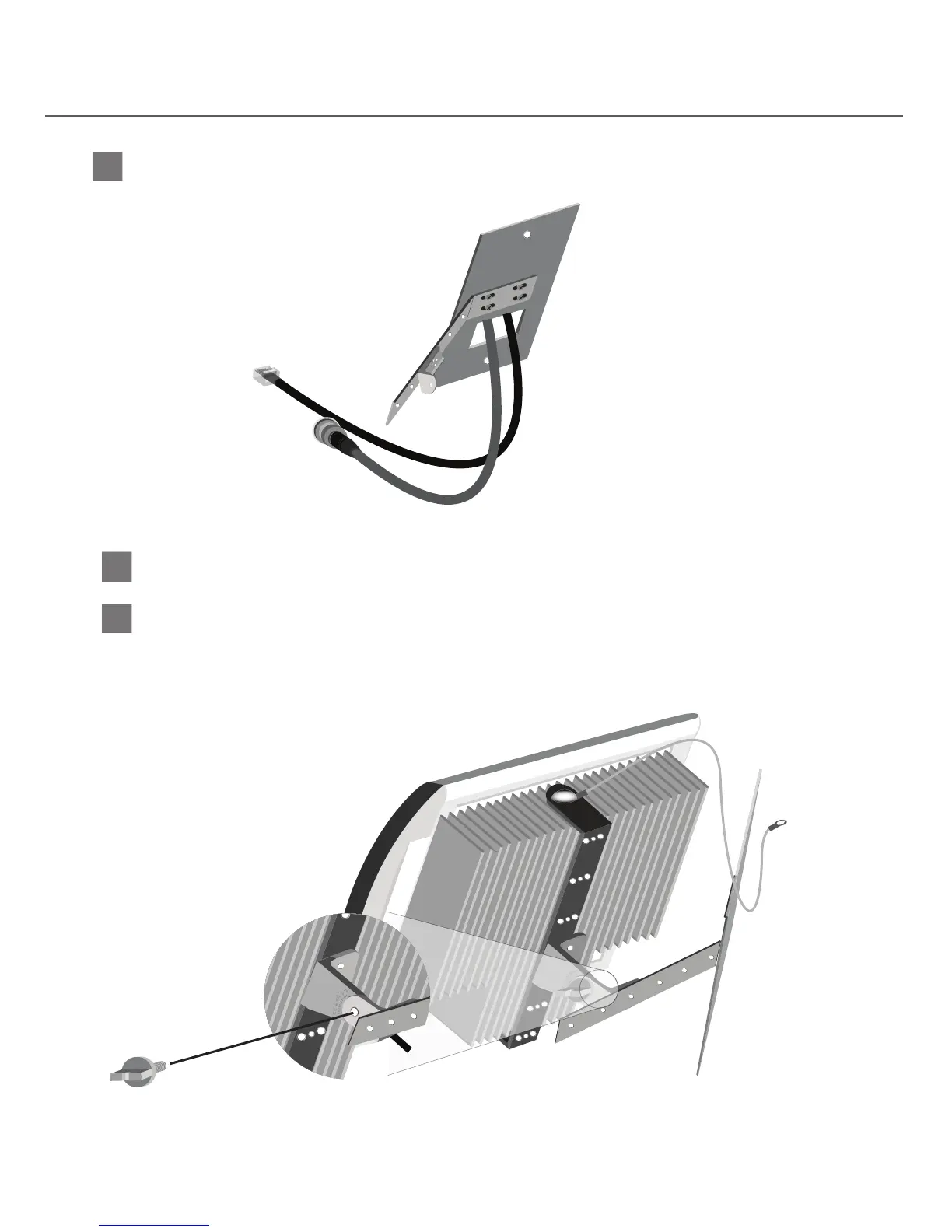

Pull CAT-5 and Coaxial cables through hole in Wall Box Plate (if necessary).
Pull CAT-5 and Coaxial cables through
6
Determine correct angle setting to use for the radiator, see page 11 of designing a system.
Determine correct angle
7
Attach Radiator to Corner Mount Bracket using Tilt Arm “A” and Tilt Arm “B.” Use the Tilt Bolt to fasten the tilt arms
together.
ATTENTION: Note the angle measurements on Tilt Arm “B” and verify that the correct angle is selected
before fully tightening Tilt Bolt.
Attach Radiator to Corner Mount Bracket
