LA-140 – Mounting your Radiator
Ceiling Mounting
Description: Radiator is mounted on the ceiling with or without a wall box available for this use.
Pieces Used:
• Wall Box Plate
• Hollow Wall Mounting Screws (if attaching to wall box) or
Hollow Wall Anchors with Screws (if attached to hollow wall)
• Tilt Arm “A”
• Tilt Arm “B”
• Tilt Bolt
• Mounting Hardware Screws

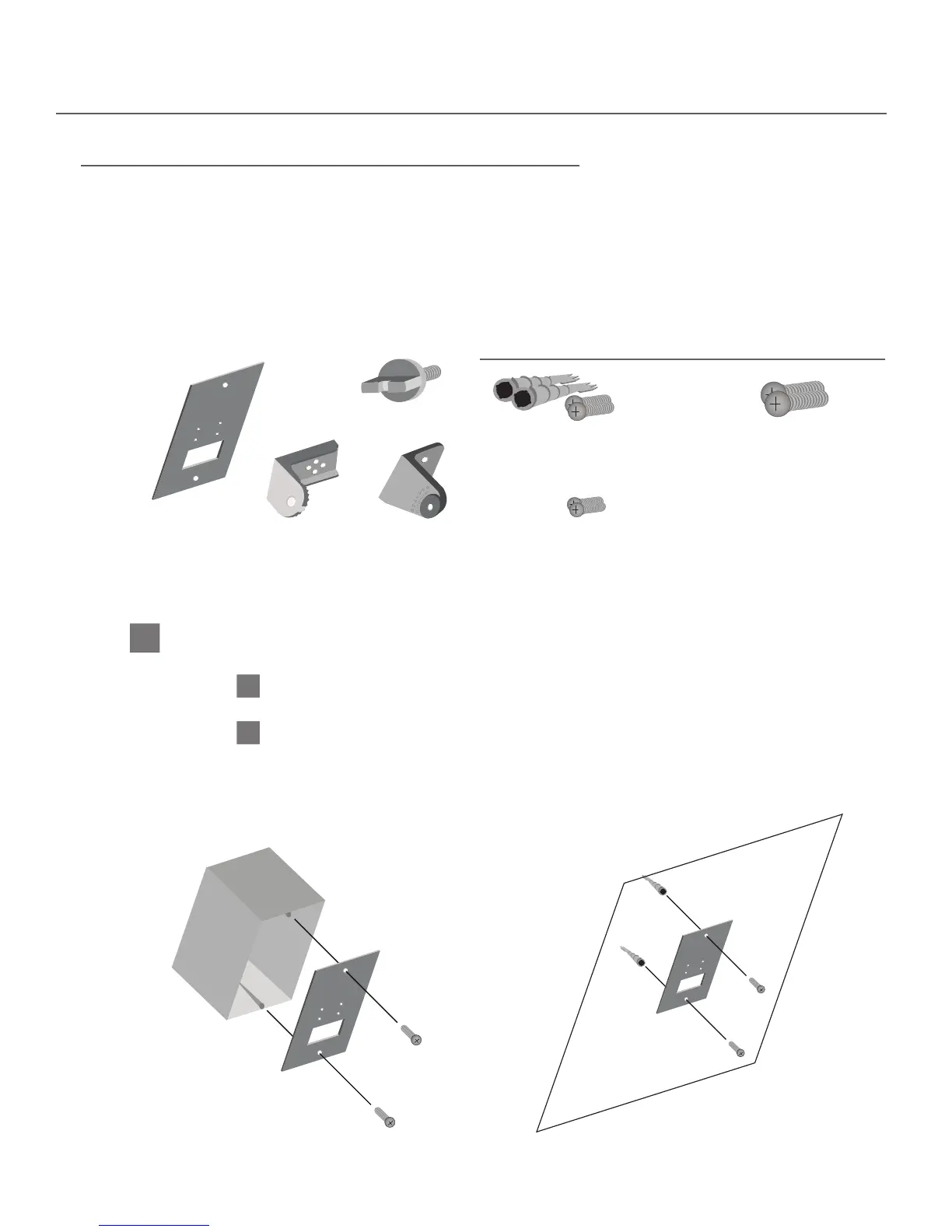

Installation Steps
1
Attach Wall Box Plate securely to ceiling.
Attach Wall Box Plate securely to ceiling
1A
If using a wall box, attach Wall Box Plate to wall box using included Mounting Hardware
Screws
1B
If attaching directly to a hollow ceiling, attach Wall Box Plate securely to ceiling using included Hollow
Wall Anchors with Screws.
ATTENTION: The Wall Box Plate must be used in this installation to provide a secure base
for the radiator to be mounted on.
Wall Box Plate
Tilt Bolt
Tilt Arm “A”
Tilt Arm “B”
Mounting Hardware Screws
Hollow Wall Anchors with Screws
Wall Box Plate Mounting Screws
Anchors with
or
