2
3

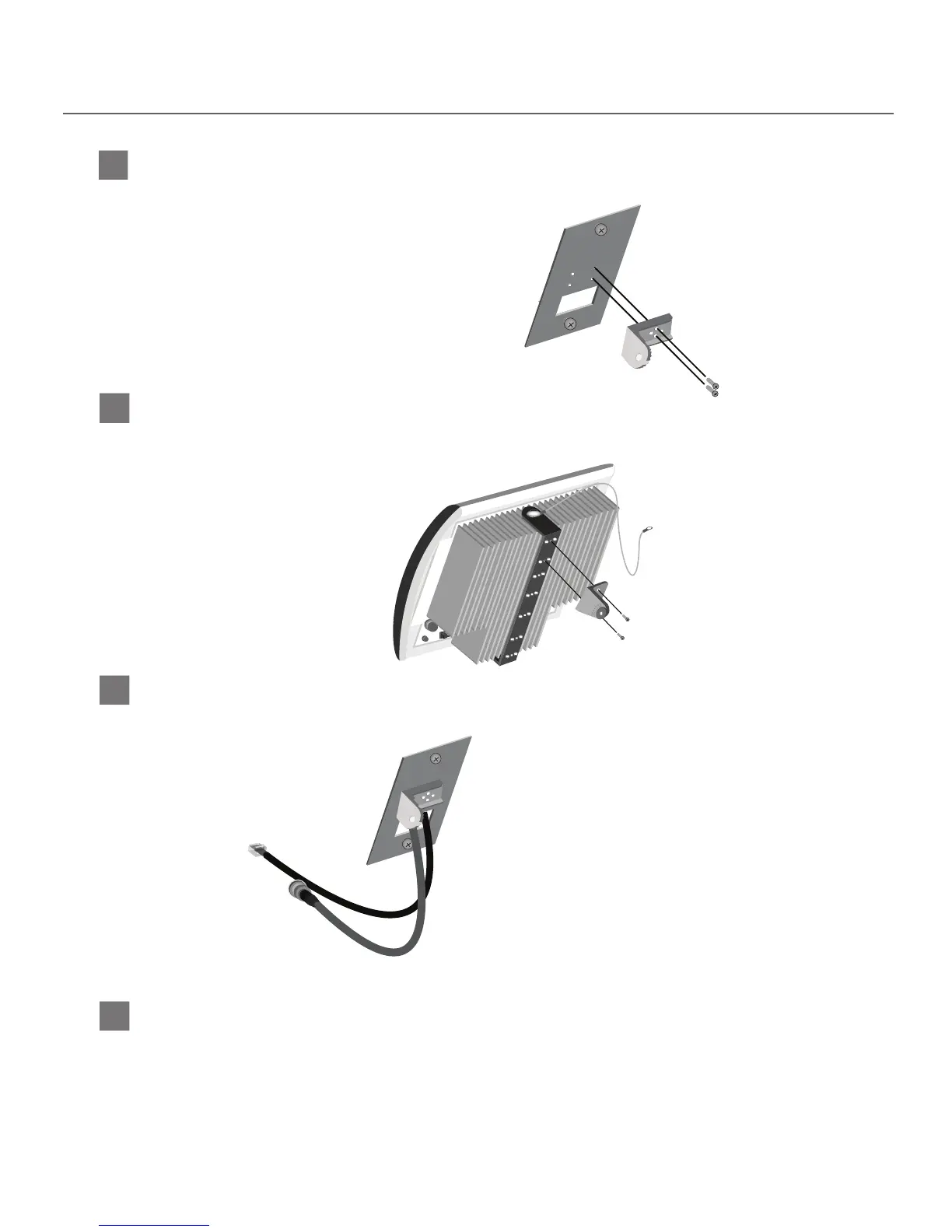

Attach Tilt Arm “B” to Swing Arm of radiator (swing arm comes attached to rear of radiator) using included
Mounting Hardware Screws. It is recomended that the top hole of the radiator swing arm be used using included
mounting hardware screws in this install.
Attach Tilt Arm “B”
4
Attach Tilt Arm “A” to Wall Box Plate. Attach Tilt Arm “A” in such a manner that it sits across Wall Box Plate using Mounting
Hardware Screws, not up and down on plate.
Attach Tilt Arm “A”
5
Pull CAT-5 and Coaxial cables through hole in Wall Box Plate.
Pull CAT-5 and Coaxial cables through (if necessary)
Determine correct angle setting to use for the radiator, see page 11 of designing a system.
Determine correct angle
LA-140 – Mounting your Radiator
