LA-140 – Mounting your Radiator
Desk/Table Mounting
Radiator is mounted to a support bracket that can be set on any at surface. This is a exible and
non-permanent mounting strategy.
Pieces Used:
• Universal Bracket
• Tilt Arm “A”
• Tilt Arm “B”
• Tilt Bolt
• Mounting Hardware Screws
Installation Steps

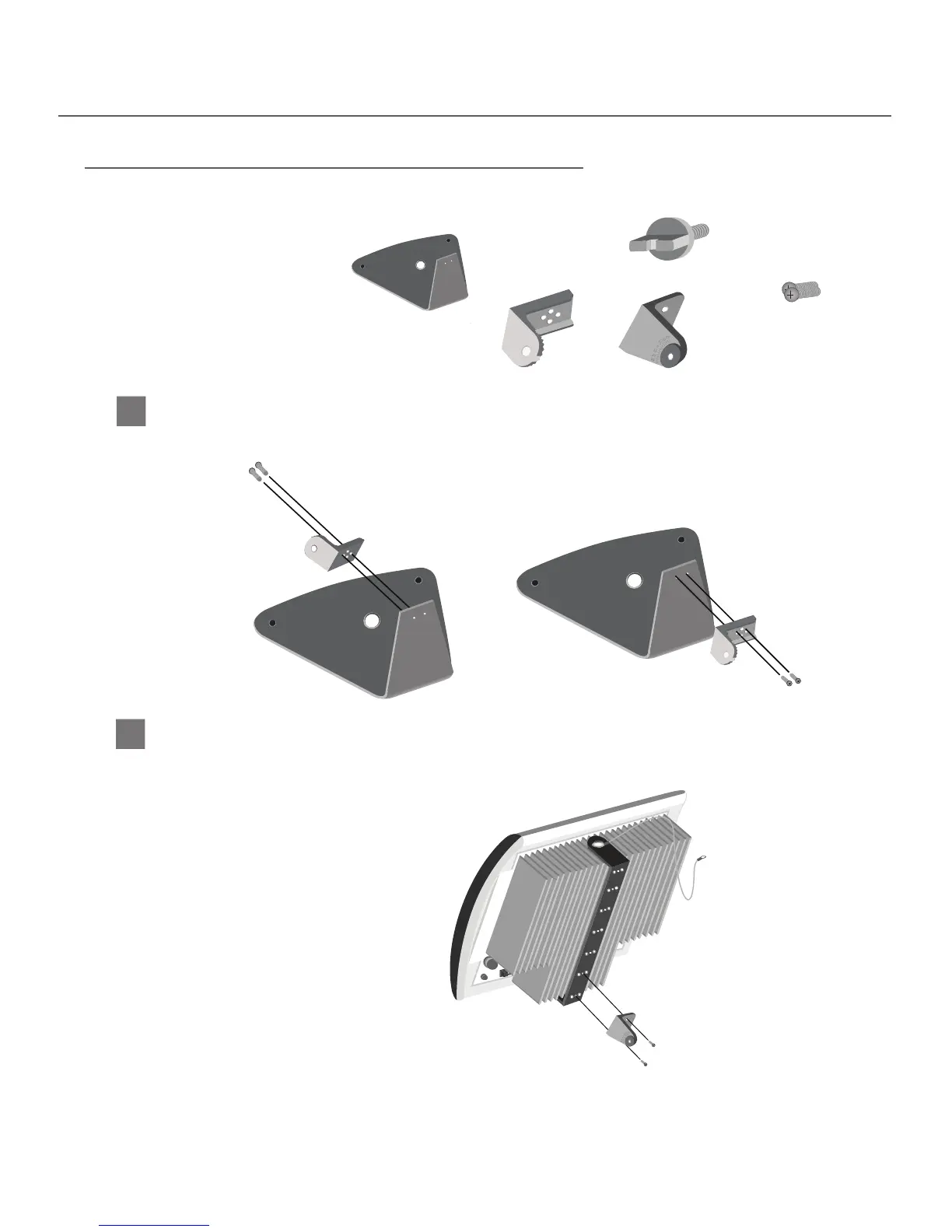

1
Attach Tilt Arm “A” to Universal Bracket using included Mounting Hardware Screws. Tilt Arm “A” can be attached to
either side of the Universal Barcket.
Attach Tilt Arm “A”
2
Attach Tilt Arm “B” to Swing Arm of radiator (swing arm comes attached to rear of radiator) using Mounting Harware
Screws. The bottom hole in Swing Arm must be used for this install.
Attach Tilt Arm “B”
Universal Bracket
Tilt Bolt
Tilt Arm “A”
Tilt Arm “B”
Mounting Hardware Screws
or
To Next Page
