52
l
3
Determine correct angle setting to use for the radiator, see page 11 of designing a system.
Determine correct angle
4

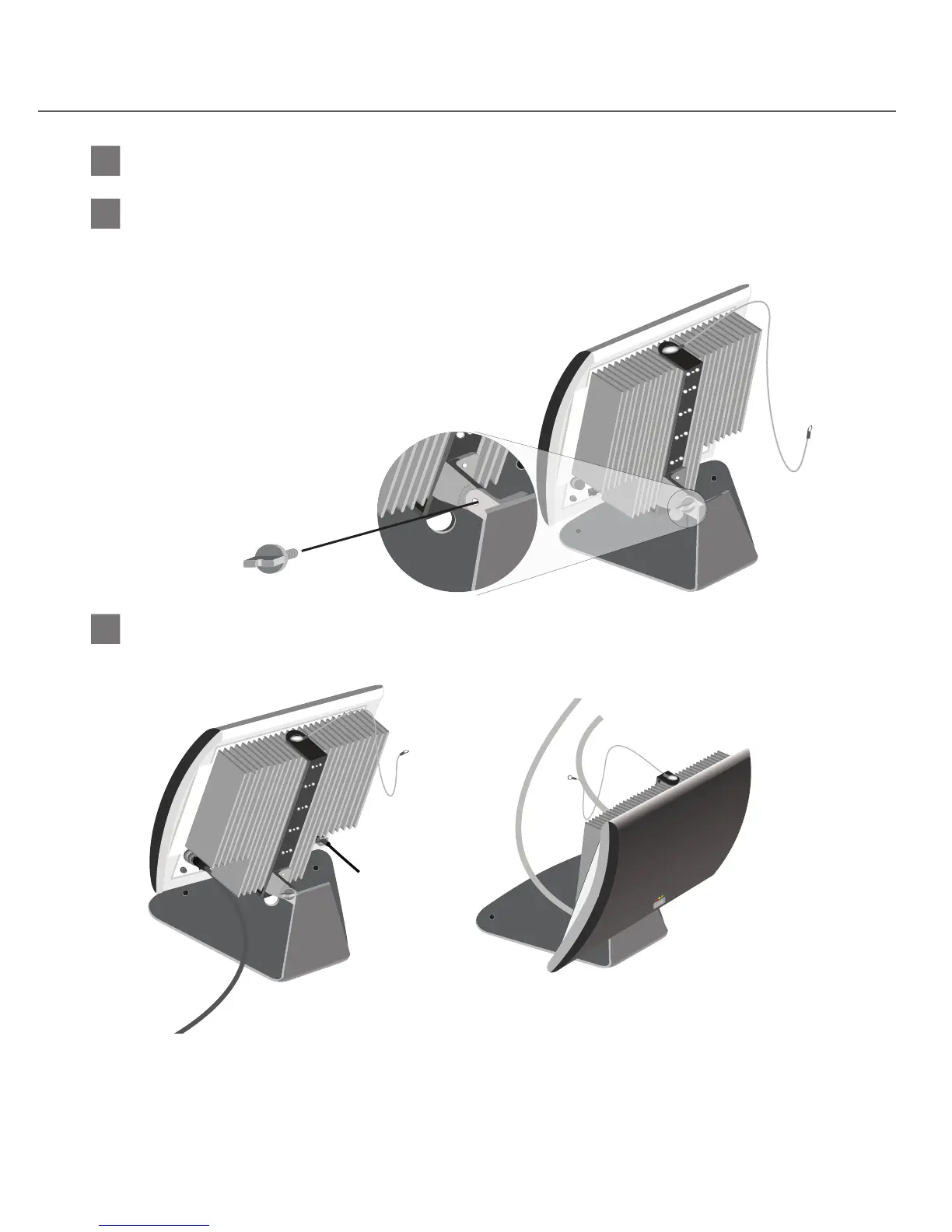

Attach Radiator to Desk/Mic Stand using Tilt Arm “A” and Tilt Arm “B.” Use the Tilt Bolt to fasten the tilt arms together.
ATTENTION: Note the angle measurements on Tilt Arm “B” and verify that the correct angle is selected
before fully tightening Tilt Bolt.
Attach Radiator to Desk/Mic Stand
5
Connect CAT-5 and Coaxial cables to appropriate locations on radiator.
Connect CAT-5 and Coaxial cables
LA-140 – Mounting your Radiator
