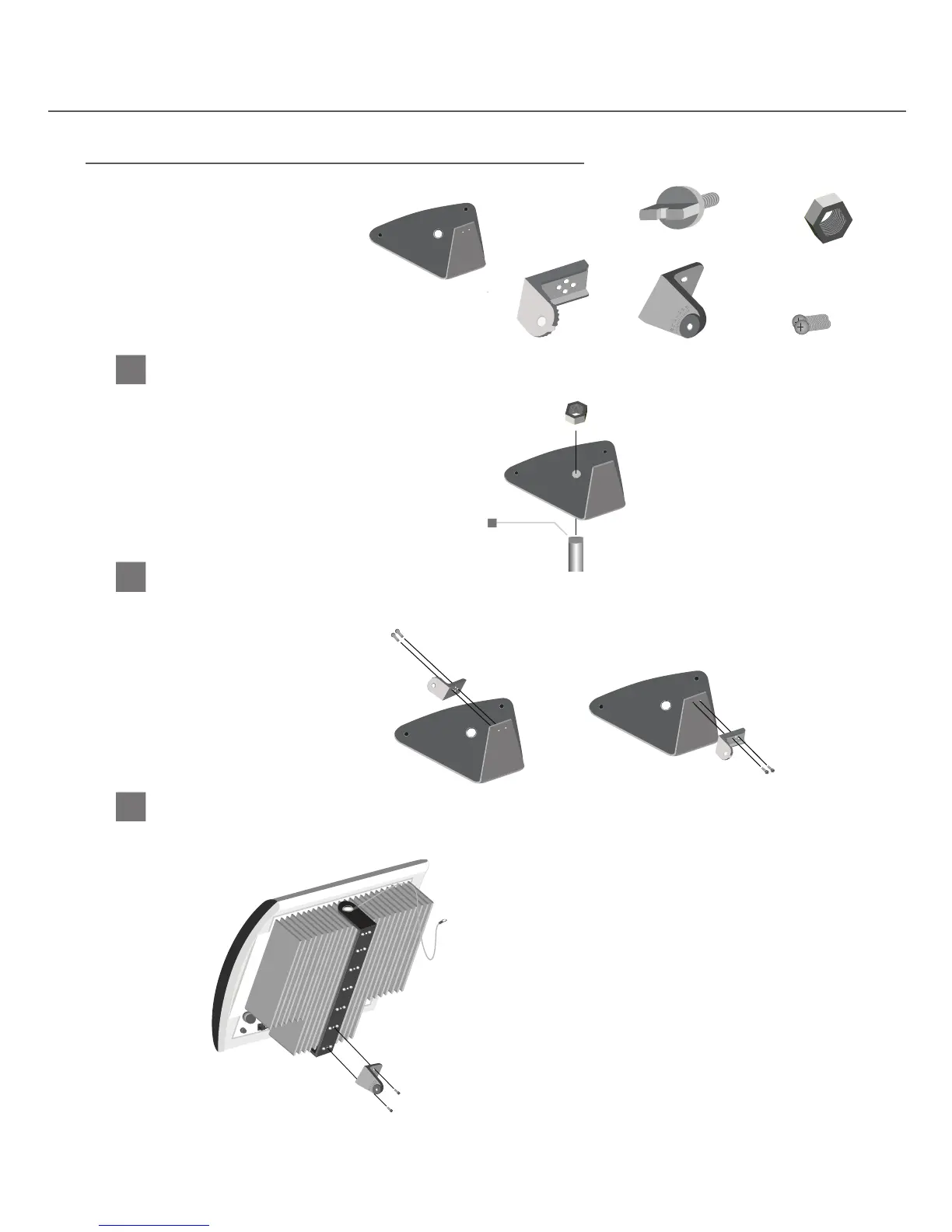

LA-140 – Mounting your Radiator
Microphone Stand Mounting
Radiator is mounted on a standard microphone stand.
Pieces Used:
• Universal Bracket
• Universal Stand Nut
• Tilt Arm “A”
• Tilt Arm “B”
• Tilt Bolt
Installation Steps
1
Attach Universal Bracket to Mic Stand using Universal Stand Nut.
Attach Universal Bracket to Mic Stand
2
Attach Tilt Arm “A” to Universal Bracket using included Mounting Hardware Screws. Tilt Arm “A” can be attached to either
side of the Universal Barcket.
Attach Tilt Arm “A”
3
Attach Tilt Arm “B” to Swing Arm of radiator (swing arm comes attached to rear of radiator) using included Mounting
Hardware Screws. The bottom hole in Swing Arm must be used for this install.
Attach Tilt Arm “B”
Microphone stand
Universal Bracket
Tilt Bolt
Tilt Arm “A”
Tilt Arm “B”
Mounting Hardware Screws
Universal Stand Nut
