LA-140 – Mounting your Radiator
Tripod Stand Mounting
Radiator is mounted on a tripod stand. If Listen part number LA-337 is used the radiator can be
mounted up to nine feet high.
Pieces Used:
• Universal Stand Nut
• Universal Bracket
• Tilt Arm “A”
• Tilt Arm “B”
• Tilt Bolt
• Mounting Hardware Screws
Installation Steps

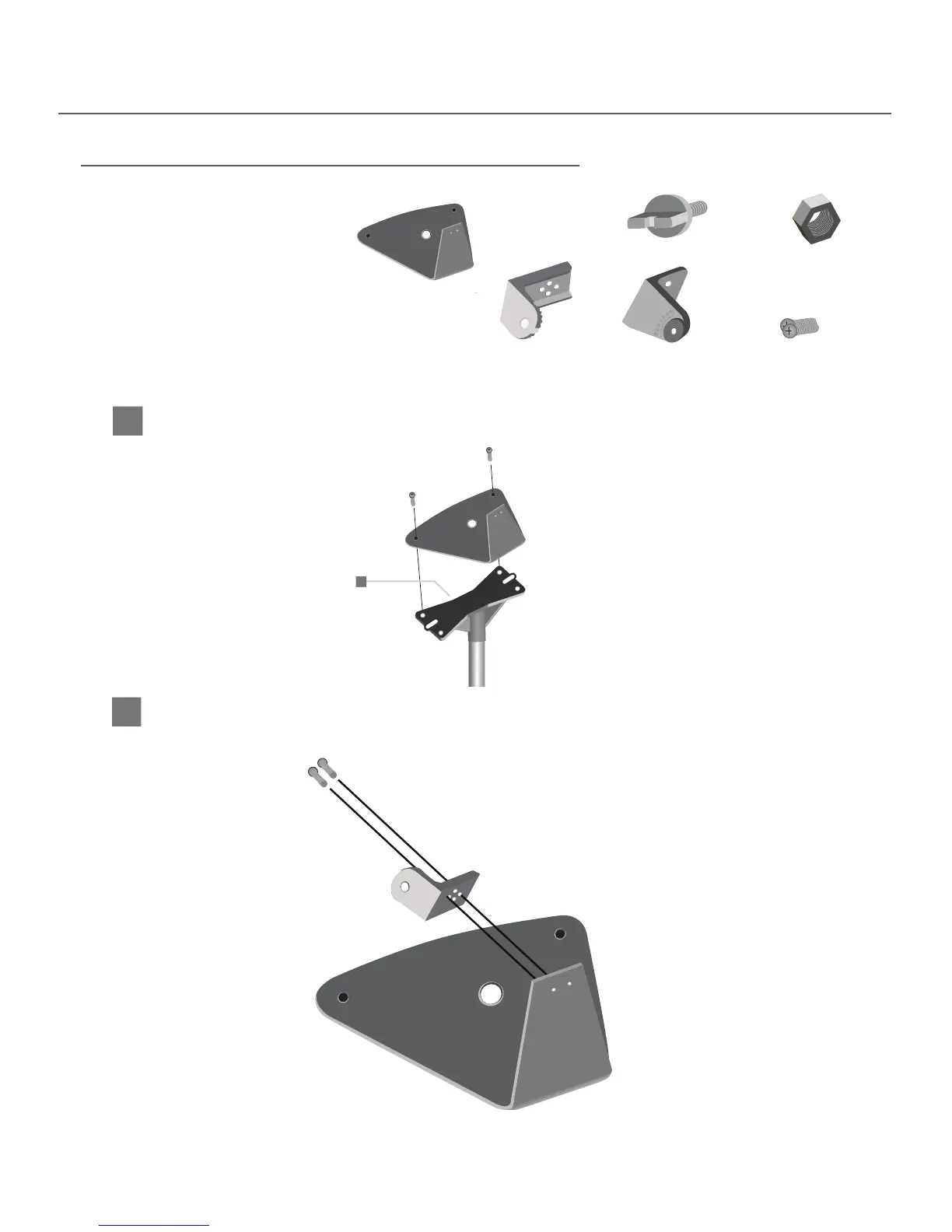

1
Attach Universal Bracket to LA-337 tripod stand using equipment included in LA-337
Attach Universal Bracket to tripod stand
2
Attach Tilt Arm “A” to Universal Bracket using included mounting hardware screws.
Attach Tilt Arm “A”
Tripod
Universal Bracket
Tilt Bolt
Tilt Arm “A”
Tilt Arm “B”
Mounting Hardware Screws
Universal Stand Nut
