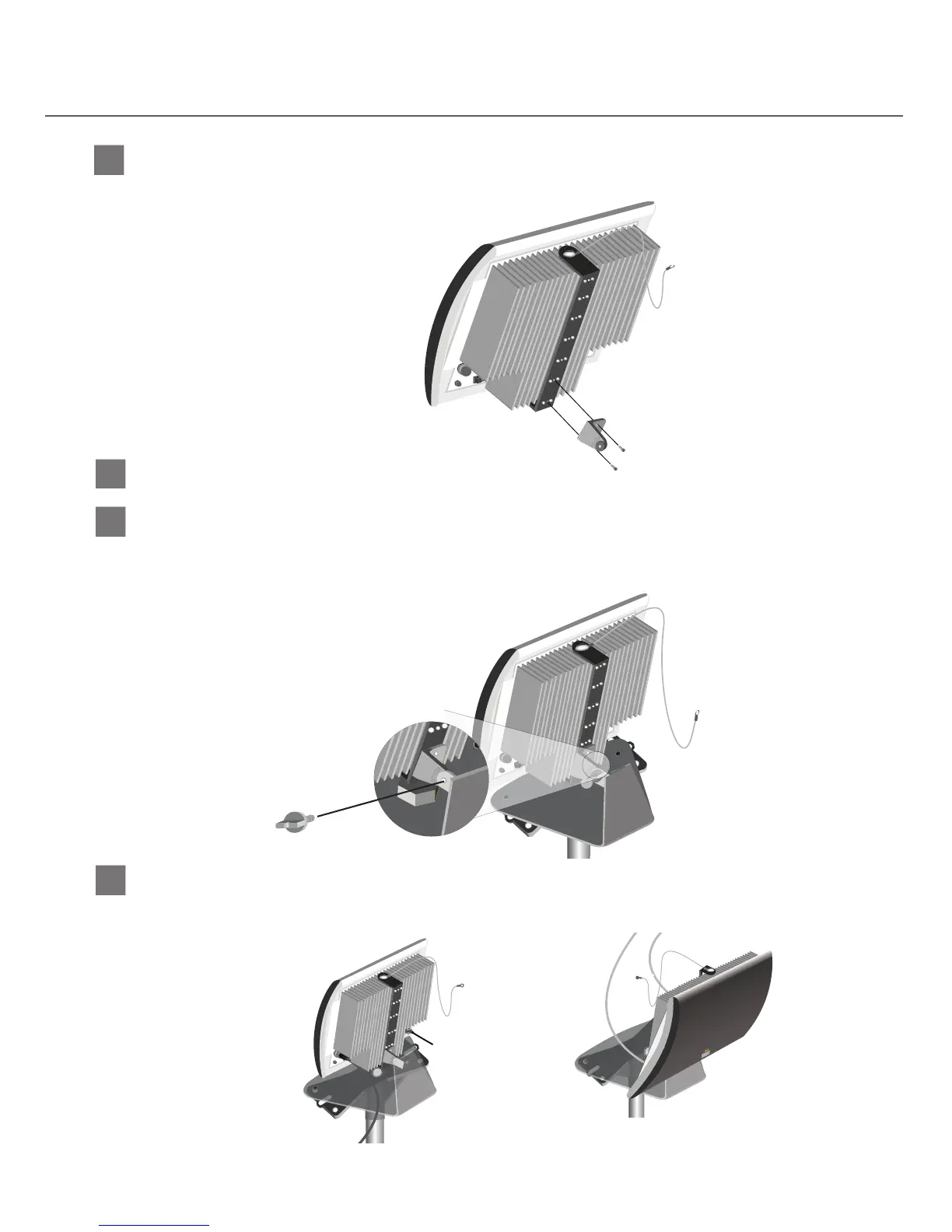

Attach Tilt Arm “B” to Swing Arm of radiator (swing arm comes attached to rear of radiator) using included mounting
hardware screws. The bottom hole in Swing Arm must be used for this install.
Attach Tilt Arm “B”
4
Determine correct angle setting to use for the radiator, see page 11 of designing a system.
Determine correct angle
5
Attach Radiator to Desk/Mic Stand using Tilt Arm “A” and Tilt Arm “B.” Use the Tilt Bolt to fasten the tilt arms together.
ATTENTION: Note the angle measurements on Tilt Arm “B” and verify that the correct angle is selected
before fully tightening Tilt Bolt.
Attach Radiator to Desk/Mic Stand
6
Connect CAT-5 and Coaxial cables to appropriate locations on radiator.
Connect CAT-5 and Coaxial cables
LA-140 – Mounting your Radiator
