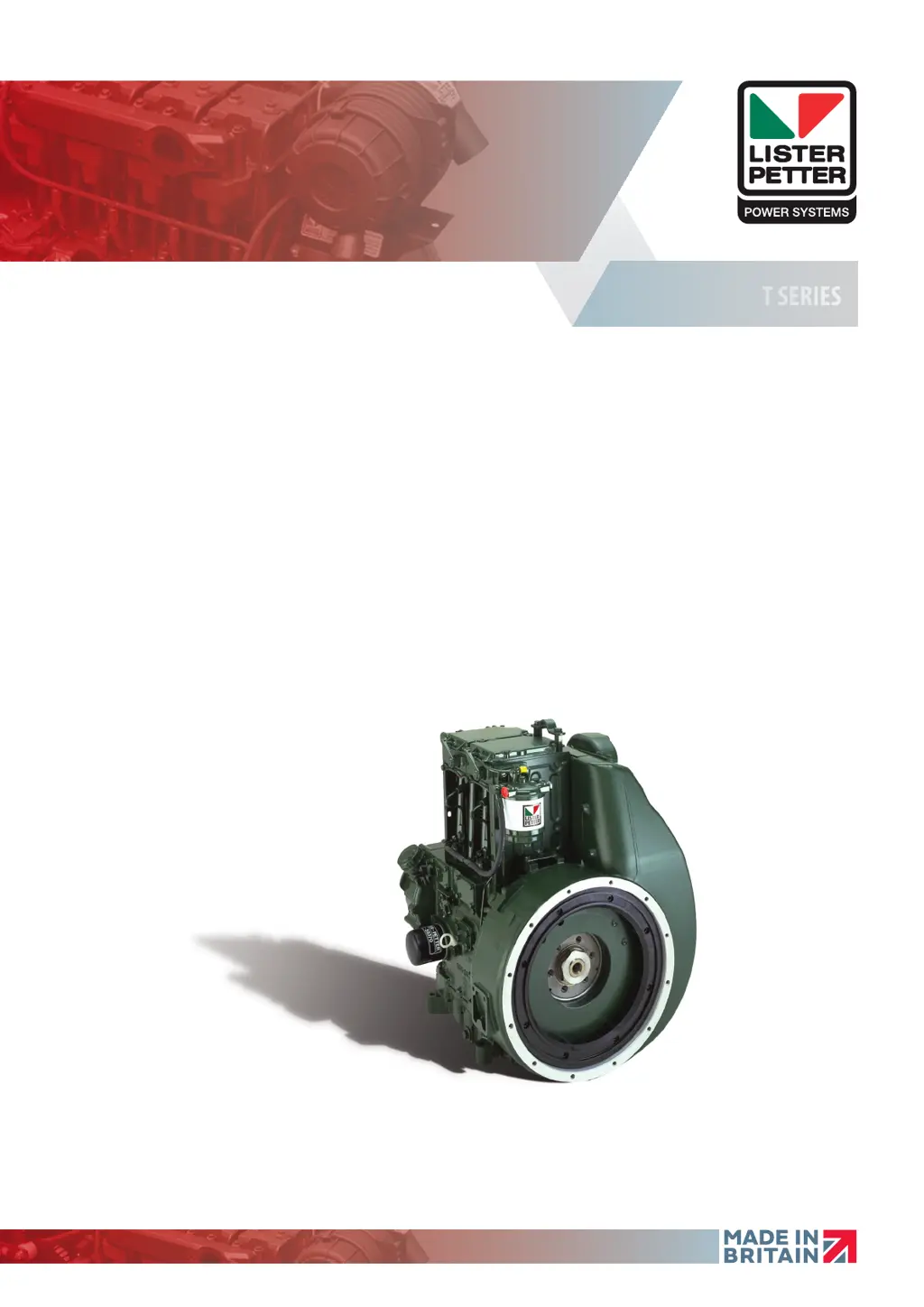

P027-08270 | edition 8 | April 2021
TS, TR, TX Engines
Workshop Manual
T SERIES

Table of Contents

Questions and Answers

  • W
    Willie JohnsAug 22, 2025
    Why does my Lister Petter TS/TR2 have excessive carbon deposits?
    • W
      walshannAug 22, 2025
      Excessive carbon deposits in your Lister Petter Engine can be caused by several factors. These include a choked air filter, a choked exhaust system, unsuitable fuel, unsuitable lubricating oil, or continuous low or no-load running. To resolve this, dismantle and clean the cap and element of the air filter if it is choked, dismantle and clean the exhaust system if it is choked, use fuel of the correct specification if the fuel is unsuitable, and use oil of the correct viscosity and specification if the lubricating oil is unsuitable. Also, investigate your load management program if the engine is continuously running at a low or no load.
  • J
    John BuckNov 6, 2025
    What to do if my Lister Petter TS/TR2 Engine is difficult to start?
    • D
      Diane BartlettNov 6, 2025
      If your Lister Petter Engine is difficult to start, there could be several reasons. First, ensure you are using the correct starting procedure. Other potential causes include unsuitable lubricating oil (too heavy), incorrect fuel, no fuel in the tank, a choked fuel filter, or an air lock in the fuel system. You might also have water or dirt in the fuel system, a dirty or faulty injector, or a discharged battery. Check the fuel pump solenoid, battery connections, and the fuel pump itself. If the lubricating oil is too heavy, use oil of the correct viscosity and specification; if the fuel is incorrect, use fuel of the correct specification; if there is no fuel, refill the tank; if the fuel filter is choked, replace it; if there is an air lock, check the fuel level and prime the fuel filter; ...

Summary

General Information

1.1 Safety Precautions and Safe Working Practices

Outlines essential safety rules, hazards, and precautions for safe operation.

1.2 Safety Symbols

1.5 Battery Details

Engine Servicing & Adjustments

2.1 Preliminary Instructions

General guidelines and warnings before commencing any service or adjustment.

2.3 The Cold Start Aid

2.18 Valve Clearance

2.24 Priming the Fuel System

2.26 The Fuel Injector

Replacing an Injector

Step-by-step guide for replacing fuel injectors.

2.28 Fuel Pump Timing

Procedure for setting the fuel pump timing.

2.30 The Governor

2.31 Setting the Governor

Instructions for setting and adjusting the engine governor.

Governor E Setting

Governor Q Setting

Governor A Setting

Governor G Setting

2.32 Governor G Setting and Timing Tables

Tables for 'G' settings and timing based on engine builds.

2.33 Speed Adjustment

How to adjust engine speed settings for fixed and variable speed controls.

2.34 The Engine Controls

2.36 The Camshaft

2.39 The Cylinder Barrel

2.40 The Piston and Connecting Rod

2.41 The Flywheel

Flywheel Housing and Main Bearing Housing

2.43 Main Bearing Housing

Crankshaft and Bearings

2.44 The Crankshaft

Instructions for removing and refitting the crankshaft.

2.46 Checking Bearing Clearance

2.47 Crankshaft Main Bearings

Ancillary Components and Systems

2.49 The Oil Filter

2.52 The Oil Strainer and Pump

Engine Fluids

3.1 Engine Fluids - Lubricating Oil

Detailed classifications and specifications for lubricating oils.

3.2 Engine Fluids - Fuel

Specifications and requirements for diesel fuel used in the engines.

Operating Instructions

4.1 Preliminary Instructions

Essential operating precautions and safety advice.

4.2 Hand Starting

Step-by-step guide for starting the engine manually.

4.3 Electric Starting

Procedures for starting the engine using electric start.

4.4 Stopping the Engine

Correct procedures for safely stopping the engine.

Routine Maintenance

5.1 Preliminary Instructions

General warnings and advice for routine maintenance.

5.2 Routine Maintenance - Schedule Hours

Maintenance tasks organized by operating hours.

5.3 Spanner Torque Settings

A list of torque values for engine fasteners.

Troubleshooting

6.1 Preliminary Information

Guidance on diagnosing and resolving engine problems.

6.2 Method of Troubleshooting

6.3 Troubleshooting Tables

Tables listing problems, causes, and solutions.

Dismantle & Rebuild

TS;TR Dismantle and Rebuild

Detailed steps for dismantling and rebuilding TS/TR engines.

TX Dismantle and Rebuild

Detailed steps for dismantling and rebuilding TX engines.

Electrical Wiring Diagrams

9.1 Wiring Diagrams

Schematics for engine electrical systems.

Technical Data

10.1 Engine Mechanical Data - TS

Detailed mechanical specifications for TS series engines.

10.2 Engine Mechanical Data - TR

Detailed mechanical specifications for TR series engines.

10.3 Engine Mechanical Data - TX

Detailed mechanical specifications for TX series engines.

10.4 Builds - TS

10.5 Builds - TR

10.6 Builds - TX

Lister Petter TS/TR2 Specifications

General IconGeneral
Engine ModelTS/TR2
ConfigurationInline
Number of Cylinders2
Compression Ratio17.5:1
Cooling SystemAir-cooled
Fuel SystemDirect Injection
Lubrication SystemForced feed
TypeDiesel
Starting SystemElectric start
