2.7 Product Dimensions
Frame Size 1
200V:
EVO600021S0D2E20F, EVO600021S0D4E20F, EVO600021SD75E20F, EVO600023S0D2E20,
EVO600023S0D4E20, EVO600023SD75E20, EVO600023S1D5E20
400V:
EVO600043S0D4E20F, EVO600043SD75E20F, EVO600043S1D5E20F
Frame Size 2
200V:
EVO600021S1D5E20F, EVO600021S2D2E20F, EVO600023S2D2E20, EVO600023S3D7E20
400V:
EVO600043S2D2E20F, EVO600043S3D7E20F

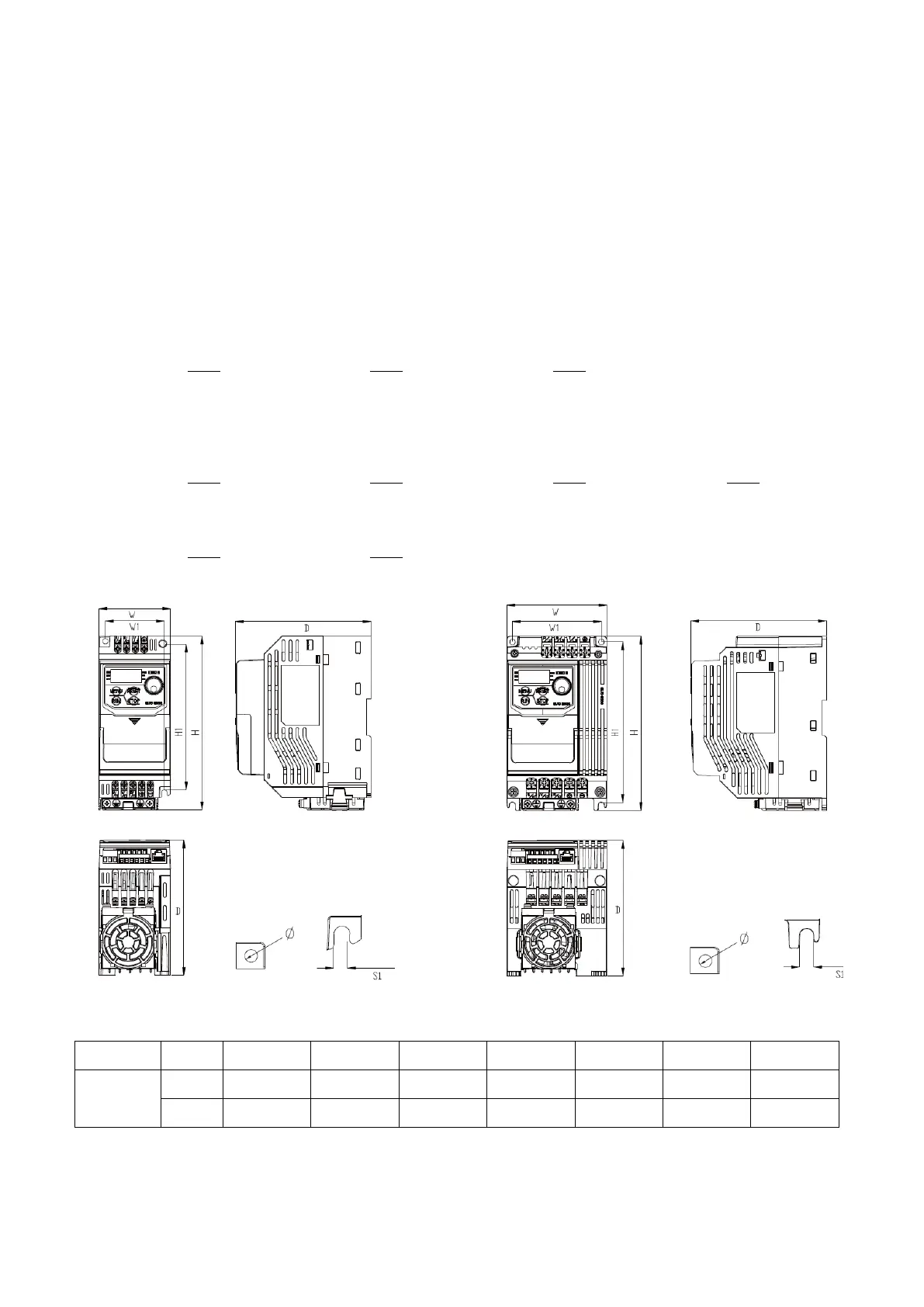

Frame Size 1 Frame Size 2
Unit: mm/inch
Series
Frame
W
W1
H
H1
D
S1
Φ
EVO6000
1
72[2.83]
59[2.32]
174.2[6.86]
151.6[5.97]
135.6[5.34]
5.4[0.21]
5.4[0.21]
2
100[3.94]
89[3.50]
174.2[6.86]
162.6[6.41]
135.6[5.34]
5.8[0.23]
5.4[0.21]
