6. Wiring.

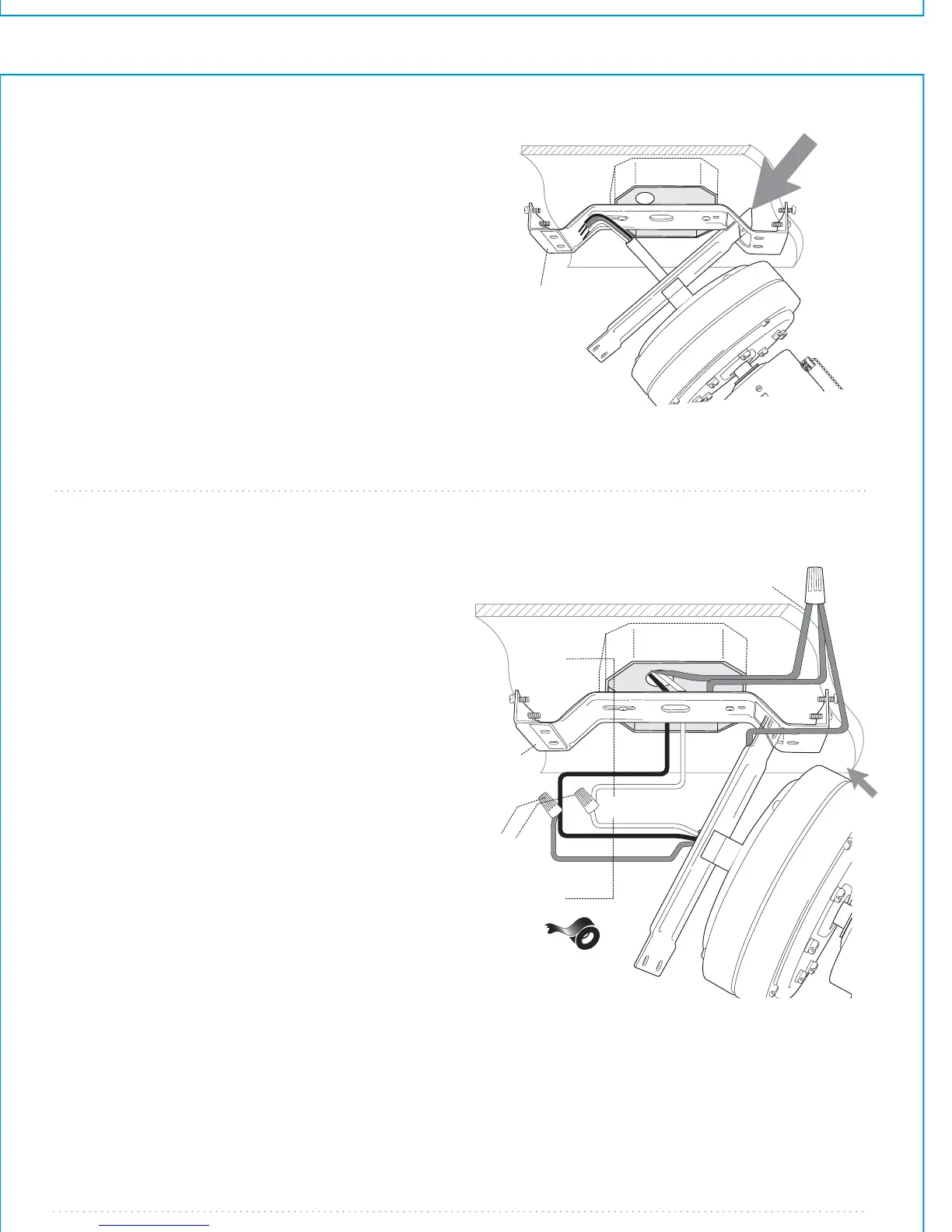

Locate notched end on bar at top of motor
assembly. Lift motor assembly to hanging
bracket and slide notched end of bar on the
motor assembly into square opening on hanging
bracket (see diagram at right). This will allow the
motor assembly to hang out of the way while
wiring.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you
once you are set on the ladder.
motor assembly
hanging
bracket
notched
end
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical
wiring or if the house/building wires are different
colors than those referred to below, please use a
qualified electrician.
When fan is secured in place on the hanging
bracket, electrical wiring can be made as
follows:
Connect BLACK and BLUE wire from fan to
BLACK wire from ceiling with wire connector
provided.
Connect WHITE wire from fan to WHITE wire
from ceiling with wire connector provided.
Connect all GROUND (GREEN) wires together
from fan to BARE/GREEN wire from ceiling with
wire connector provided.
If you intend to control the fan light with a
separate light switch, connect BLUE wire from
fan to the BLACK supply from the independent
switch.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
wire connector
WHITE
WHITE
BLACK
BLACK
BLUE
GROUND (GREEN OR BARE)
GREEN
hanging
bracket
motor assembly
*
wire
connectors
from ceiling
from fan
