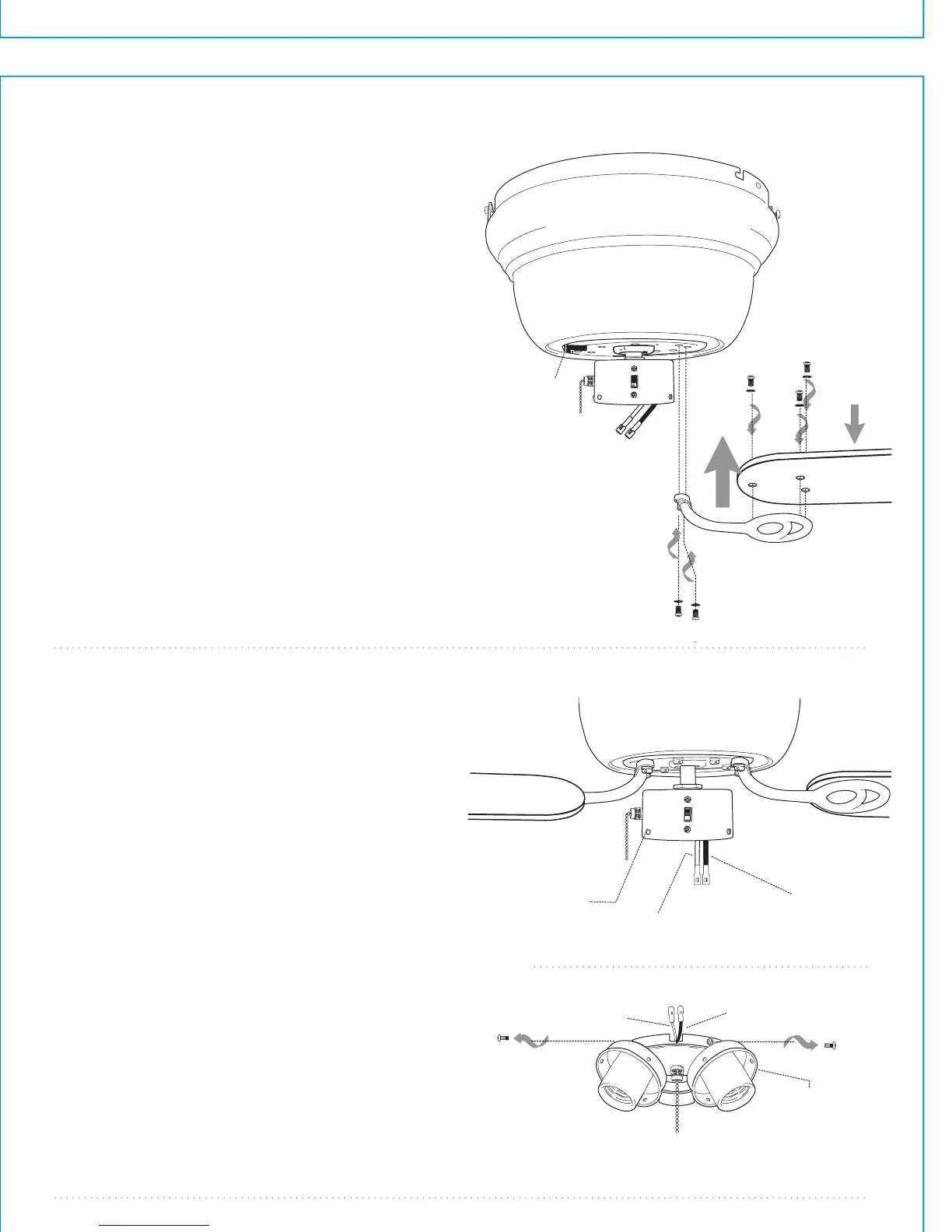

9. Blade Assembly.
10. Light Kit Assembly.
light kit
fitter
black wire
white wire
Locate BLUE (or BLACK) and WHITE wires in
the switch housing labeled LIGHT. Remove
and discard plastic that holds these 2 wires
together.
Remove 3 screws from light kit fitter.
Next, locate WHITE and BLACK wires in light
kit fitter.
["Light Kit Assembly" continued on next
page.]
Time Saver: Washers for blade screws can be
set on each blade screw prior to installing
blades.
Locate 15 blade attachment screws and
washers in one of the hardware packs. Hold
blade arm up to blade and align holes. Insert 3
blade attachment screws (along with washers)
with fingers first and then tighten screws
securely with a Phillips screwdriver. Repeat
procedure for the remaining blades.
Remove blade arm screws and lock washers
from underside of motor. If plastic motor locks
are installed with blade arm screws, discard
plastic motor locks (save blade arm screws and
lock washers to secure blade arms). Align blade
arm holes with motor screw holes and attach
blade arm with lock washers and blade arm
screws. Before securing screws permanently,
repeat this procedure with remaining blade
arms. Secure all screws.
Note: Tighten blade arm screws twice a year.
J
motor
housing
blade
lock washers
blade arm screws
blade attachment
screws and washers
blade arm
plastic
motor
lock
switch
housing
blue
(or black)
wire
white wire
motor housing
