Lithonia Lighting EDGR - Wiring Diagrams

SAVE THESE INSTRUCTIONS
and deliver to owner after installation
SAVE THESE INSTRUCTIONS!
AND DELIVER TO OWNER AFTER INSTALLATION

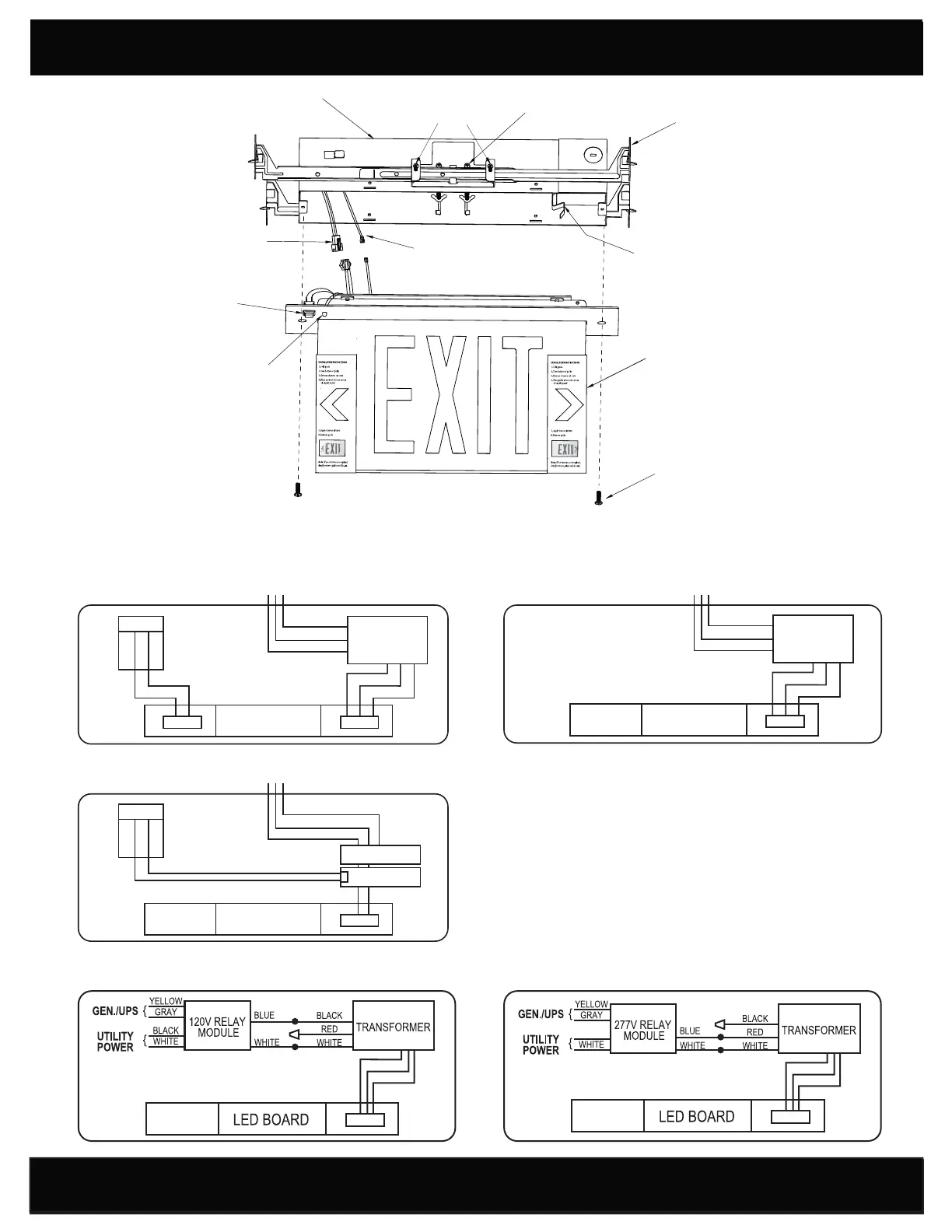

WIRING DIAGRAMS
Note: Unused input lead must be properly insulated with wire nut or other approved method.
TRANSFORMER
LED BOARD
RED 277VAC
BLACK 120VAC
WHITE COMM
Battery
120 / 277 VOLT (BATTERY BACKUP)
TRANSFORMER
LED BOARD
RED 277VAC
BLACK 120VAC
WHITE COMM
120 / 277 VOLT (AC ONLY)
TRANSFORMER
PC BOARD
LED BOARD
RED 277VAC
BLACK 120VAC
WHITE COMM
Battery
120 / 277 VOLT (SELF DIAGNOSTIC)
120 VOLT (DUAL CIRCUIT) 277 VOLT (DUAL CIRCUIT)
ORANGE
PAGE: 3 of 5
Fig. 1
Screw (provided)
Templates for chevron
J-Box (for wiring)
Adjustable
Bar Hangers (up to 2-ft)
Adjusting
Slots(up to 1-in)
Bar Hanger
Setting Screws
Metal Housing
Quick Connector
for Transformer
Test Switch
(EL Model)
Quick Connector for Battrery
(EL Model)
LED Indicator
INSTALLATION INSTRUCTIONS for Lithonia Lighting EDGR & EDGRNY Models
