Lochinvar 400 - Alcove Installation

9
Installation & Operation Manual
1 Determine boiler location (continued)
ALCOVE INSTALLATION
OPEN
FRONT
1" MINIMUM CLEARANCE
AROUND HOT WATER
PIPES AND VENT PIPE
18" (457 MM)
FRONT
0"
RIGHT
13" (330)
TOP
12"
(305 MM)
LEFT
14" (356 MM)
REAR
RECOMMENDED SERVICE CLEARANCES:
FRONT - 30” (762 mm)
TOP - 24” (610 mm)
LEFT SIDE - 24” (610 mm)
REAR - 24” (610 mm)

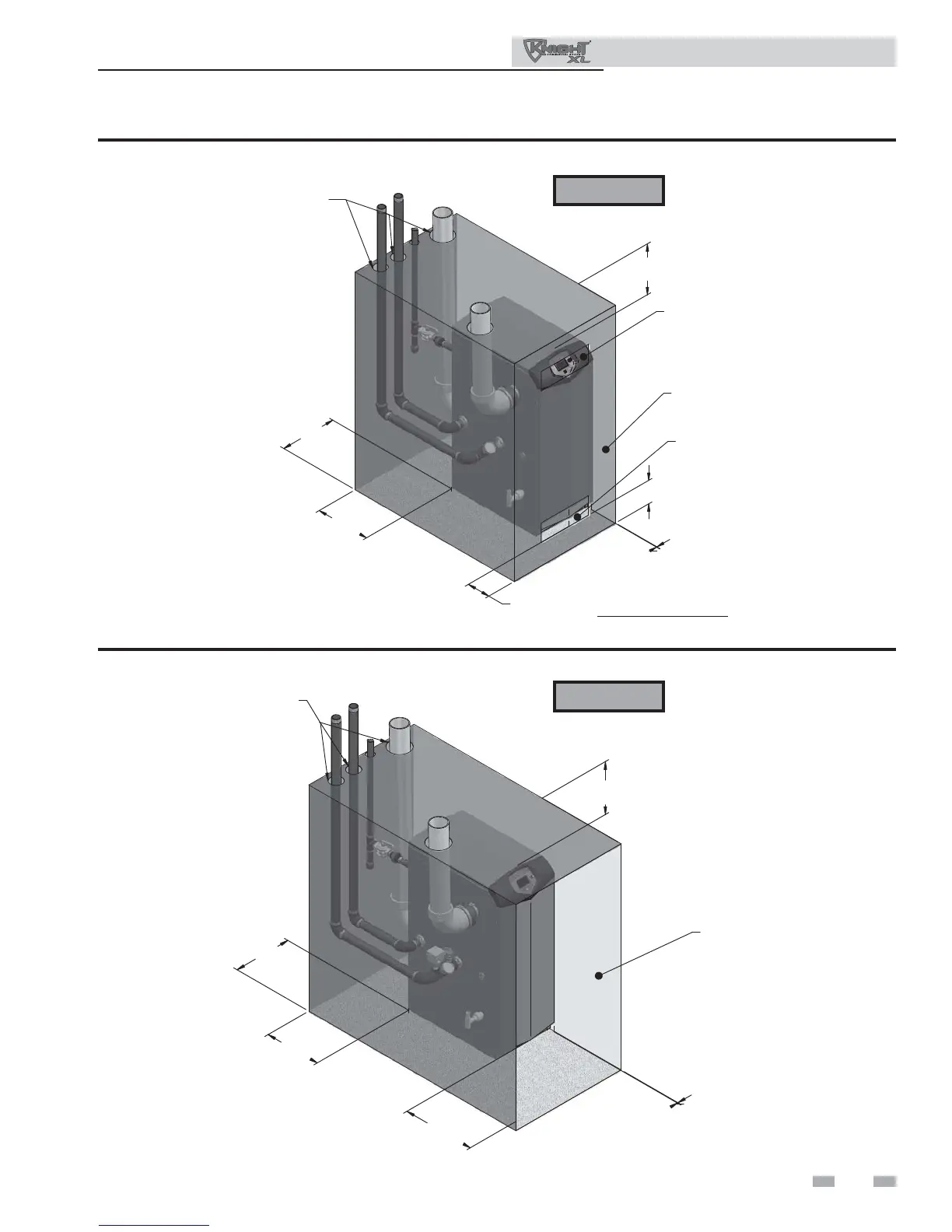

Figure 1-2 Alcove Installation - Minimum Required Clearances
CLOSET INSTALLATION
CLOSED DOOR
VENTILATING
AIR OPENING
*
*
*
A
REA OF
EACH O
P
ENING:
1 SQ. INCH PER 1000 BTU PER HOUR INPUT
WITH A MINIMUM OF 100 SQ. INCHES.
1" MINIMUM CLEARANCE
AROUND HOT WATER
PIPES AND VENT PIPE
6" (152 MM)
FRONT
6"
13"
TOP
0"
RIGHT
12"
(305 MM)
LEFT
14" (356 MM)
REAR
VENTILATING
AIR OPENING
RECOMMENDED SERVICE CLEARANCES:
FRONT - 30” (762 mm)
TOP - 24” (610 mm)
LEFT SIDE - 24” (610 mm)
REAR - 24” (610 mm)
Figure 1-1 Closet Installation - Minimum Required Clearances
 WARNING
For closet installations, CPVC or
stainless steel vent material MUST
BE used in a closet structure due to
elevated temperatures. Failure to
follow this warning could result in
fire, personal injury, or death.
 WARNING
For alcove installations, CPVC or
stainless steel vent material MUST
BE used in an alcove structure due
to elevated temperatures. Failure to
follow this warning could result in
fire, personal injury, or death.
