6
The ship loose kit inside the FBD6000 Dual Fuel contains
parts required for assembly to the propane inlet gas train prior
to connection to the incoming propane gas line. Reference
FIG. 1-1 along with Table 1A for the required assembly order
and identification of parts. Use pipe sealant approved for
use with propane gas on all primary joints. Thread tape is
recommended on all 1/8" pipe joints for the high and low gas
pressure switches.
Assemble/install proof of closure
valve (FBD 6000 model only)
1 Gas connections
Dual Fuel Supplemental Manual
NOTICE
Before installing your FBD6000 boiler
YOU MUST install the LP proof of
closure assembly provided in the ship
loose kit with the unit.
Table 1A Ship Loose Kit Components
Kit Components
Material / Part No. Description QTY.
100134332 Tee, 1/8 NPT, CLS 150, BLK, Straight 2
100134403 Nipple, 1/8 NPT, X Close, SCH40 BLK 1
100134379 Bushing, HEX, 1/4 X 1/8 NPT, SCH40, BLK 1
100134327 Elbow, Street 90, 1/8 NPT, SCH40, BLK 1
100135488 Plug, HEX, 1/8 NPT, Brass 1
100134398 Nipple, 1/8 NPT X 2", SCH40, BLK 1
100161647 Switch, Pressure, 27" WC 1
100166123 Switch, Pressure, 3" WC 1
100273736 Valve, Actuator, Proof of Closure 1
100273737 Valve, Proof of Closure 1
100173738 Valve, Ball, 2-1/2, THRD, NPT 1
100134284 Nipple, 2-1/2 X Close, SCH40, BLK 1
100134241 Nipple, 2-1/2" NPT X 6" SCH40, BLK 1
100163145 Bushing, Wire, 7/8 1
100280830 Harness, Dual Fuel, GPS/POC Switch 1
100134283 Union, 2-1/2 NPT, SCH40, BLK 1
Failure to apply pipe sealing compound
as detailed in this manual can result in
severe personal injury, death, or substantial
property damage.
WARNING

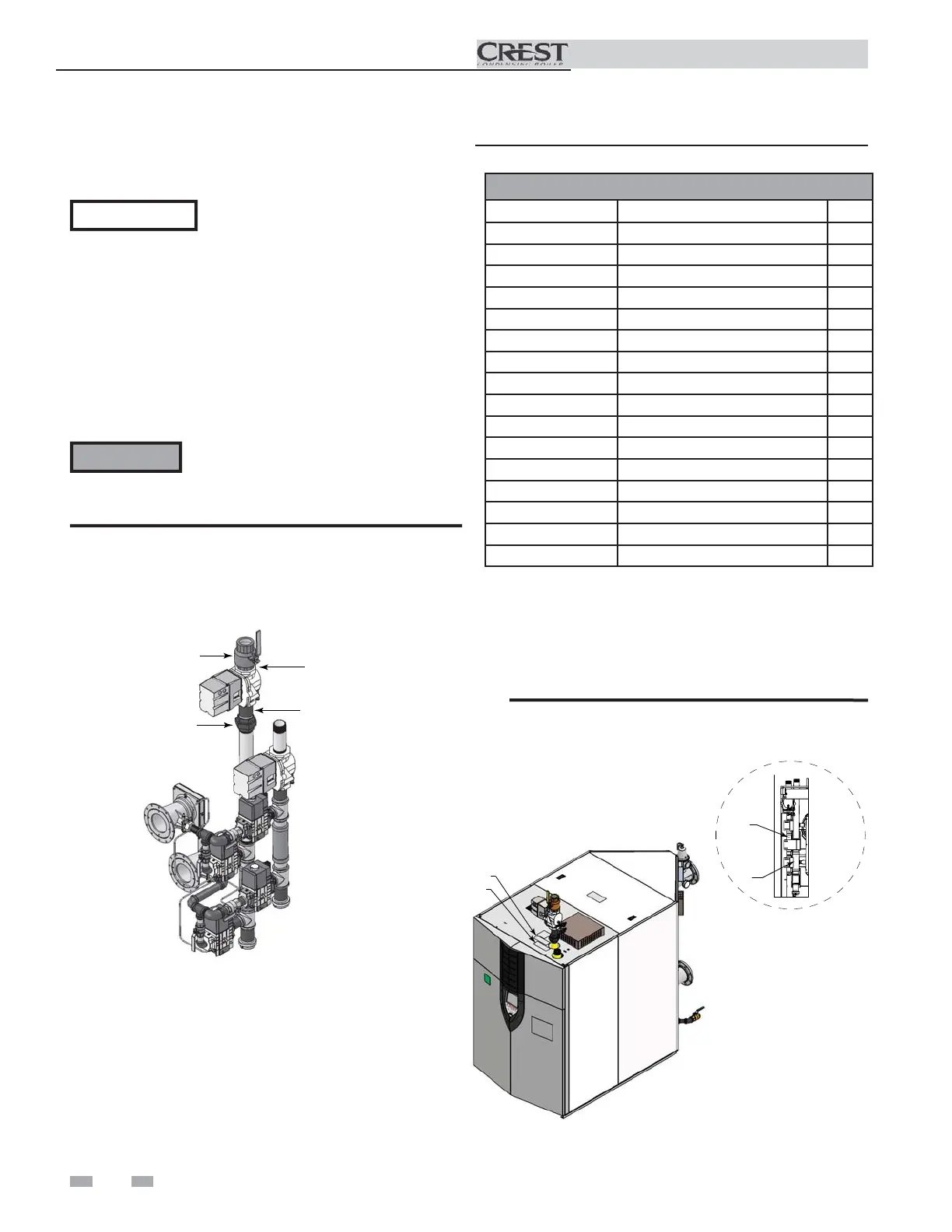

Figure 1-1 Proof of Closure Part Identification
DIR #2000540611 00
NIPPLE 2 1/2” X 6”
NIPPLE 2 1/2 X CLOSE
SHUTOFF VALVE
UNION
Labels on the top panel of the unit will identify the type of
gas for each of the two (2) inlet gas trains (see FIG. 1-2).
Verify this with the corresponding labels attached to the
gas trains inside the boiler. The natural gas train will have
a proof of closure valve already installed inside the boiler.
Figure 1-2 Labels Located on the Top Panel of the
Unit
DIR #2000540605 00
PROPANE
LABEL
NATURAL
LABEL
PROPANE
LABEL
NATURAL
LABEL
INSIDE UNIT
Note: Reference Table 1A.
