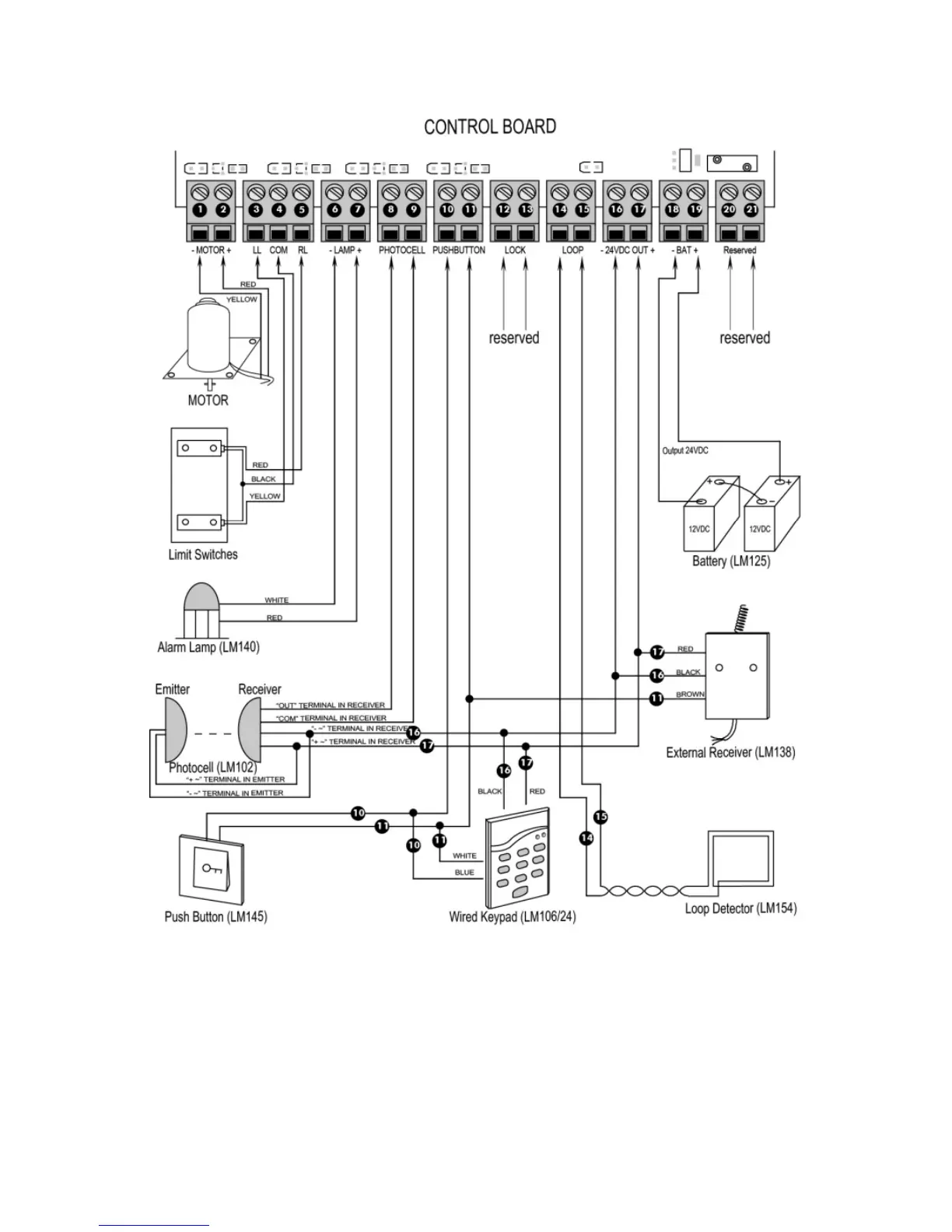

Connecting Of The Control Board
1. Motor
The YELLOW wire of the motor should be connected into the “1” terminal.
The RED wire of the motor should be connected into the “2” terminal.
2. Limit Switches
The YELLOW wire of the limit switches should be connected into the “3” terminal.
The BLACK wire of the limit switches should be connected into the “4” terminal.
The RED wire of the limit switches should be connected into the “5” terminal.
3. Alarm Lamp (24VDC)
The WHITE wire of the alarm lamp should be connected into the “6” terminal.
