Technical Specifications & Features
Specifications
·Power supply: 230V/50HZ or 120V/60HZ
·Absorbed power: 180W for DSC 600 / 350W for DSC 1000
·Gate moving speed: 0.2 m/sec
·Max gate weight: 600KGS for DSC 600 / 1000KGS for DSC 1000
·Max torque: 12Nm for DSC 600 / 24Nm for DSC 1000
·Ambient: from -15°C to +40°C; Humidity: max 75%
·Protection class: IP44
·Dimensions: 396 x 190 × 555 mm
Features:
·Get the desired chain tension by adjusting the chain bolts.
·Soft start and soft stop
·Midway mode. Quick selection for gate open/close direction
·Reliable rolling code technology
·Emergency release key in case of power failure
·Stop/Reverse in case of obstruction during gate opening/closing
·Built in adjustable auto-close (0, 30, 60, 90 seconds)
·Built in max. 90 seconds Motor running time (MRT) for multiple safety protection
·Reliable electromagnetism limit for easy adjustment
·Can be equipped with a wide range of accessories

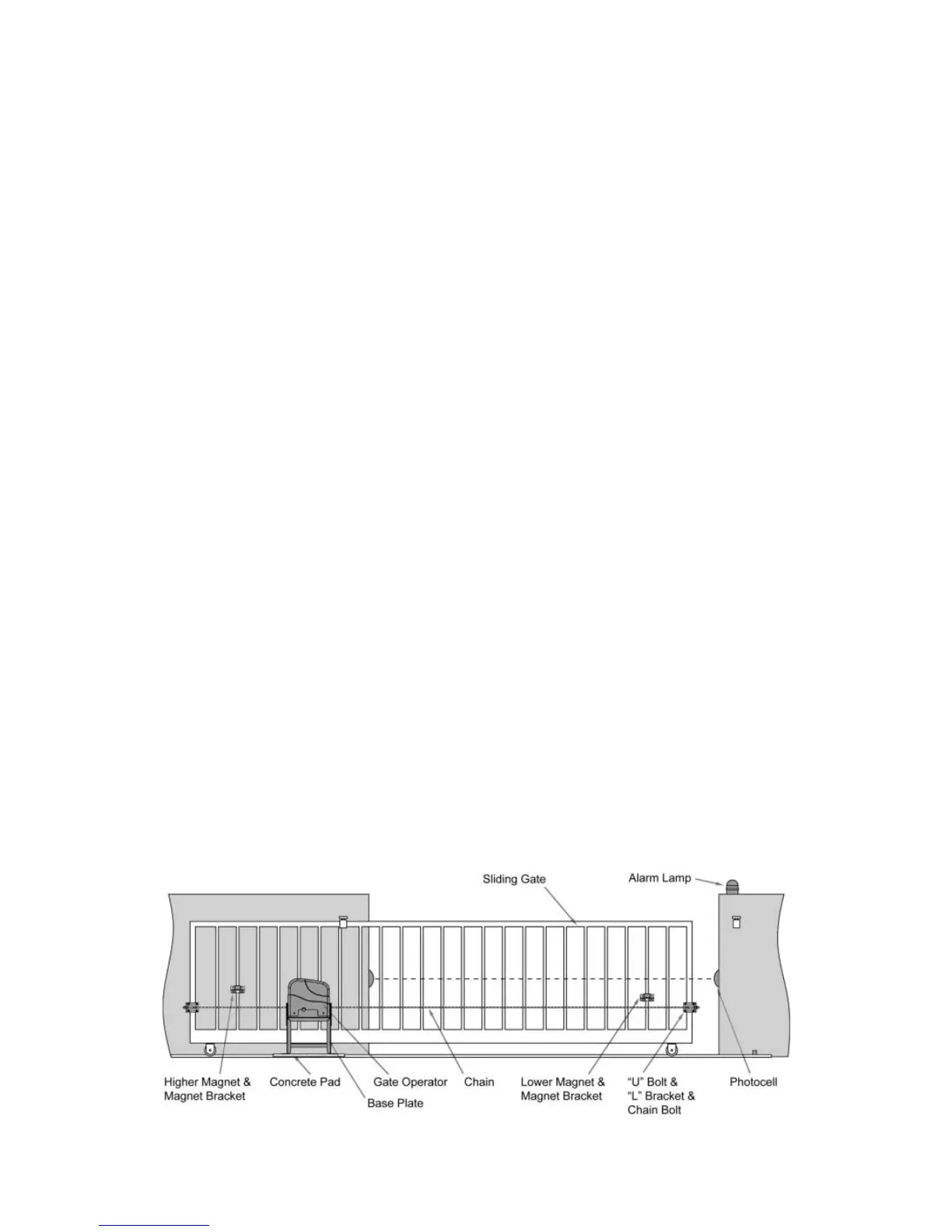

Installation Overview
