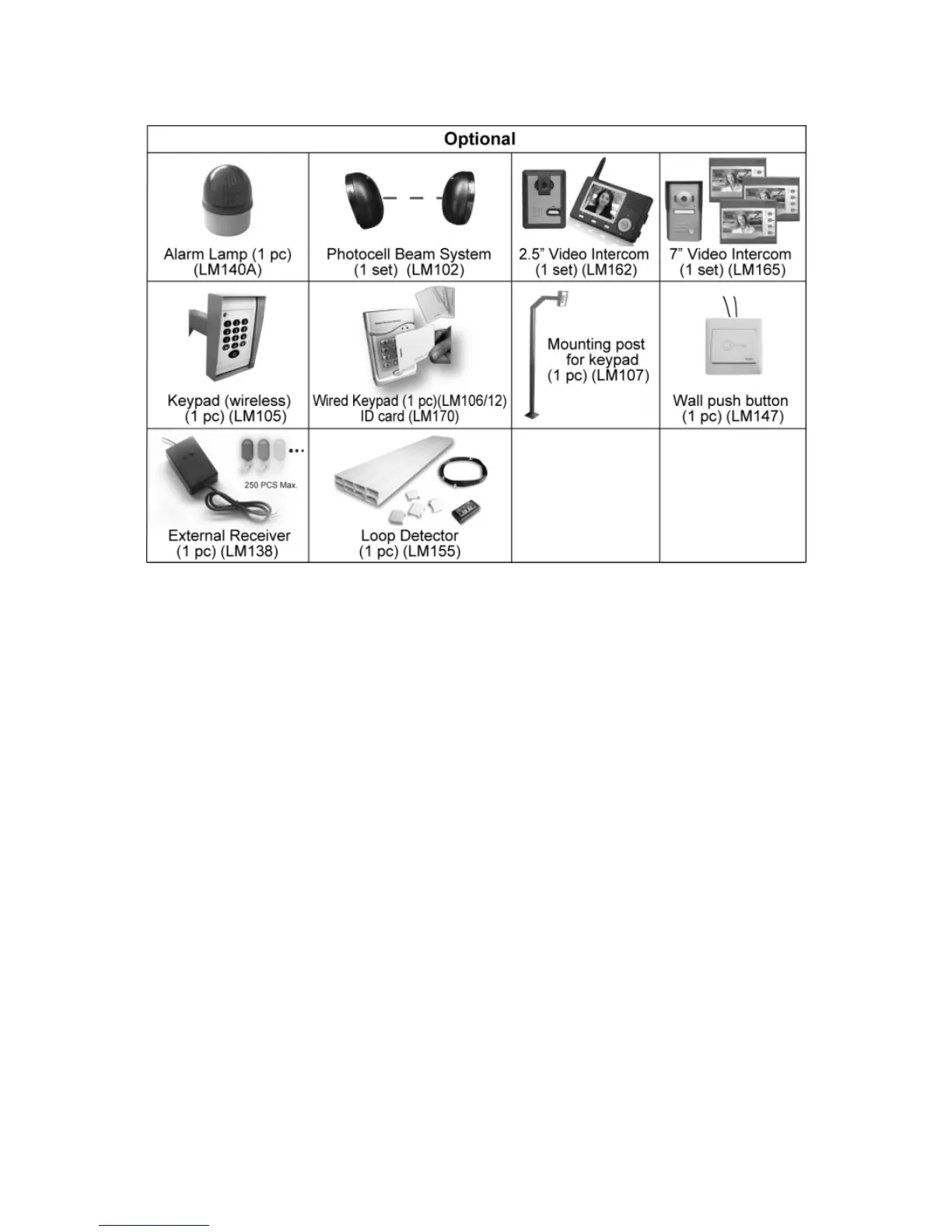

Optional Accessories Parts List
Technical Specifications & Features
Specifications
·Power supply: 120V/60HZ or 230V/50HZ
·Motor: 120VAC or 230VAC
·Absorbed power: SCG18H：370W / SCG21H：550W
·Gate moving speed: (7.9“/second) 20 cm/second
·Max gate weight: SCG18H: 800KGS / SCG21H: 1200KGS
·Max torque: SCG18H: 24Nm / SCG21H: 35Nm
·Environmental conditions: From -15°C to +40°C
·Protection class: IP44
·Dimensions: 29×22×27.6 CM
Features:
·Easy to install and low maintain.
·Midway mode，Quick selection for gate open/close direction
