4) Power Cord
5) Headphone (AUDIO LINE OUT)
jack
6) DVD VIDEO OUT jack
7) HDMI in jack
8) SCART jack (AV IN 2)
9) VIDEO IN jack (AV IN 1)
10) AUDIO IN jacks (Left/Right)
(AV IN 1)
11) TV Aerial port

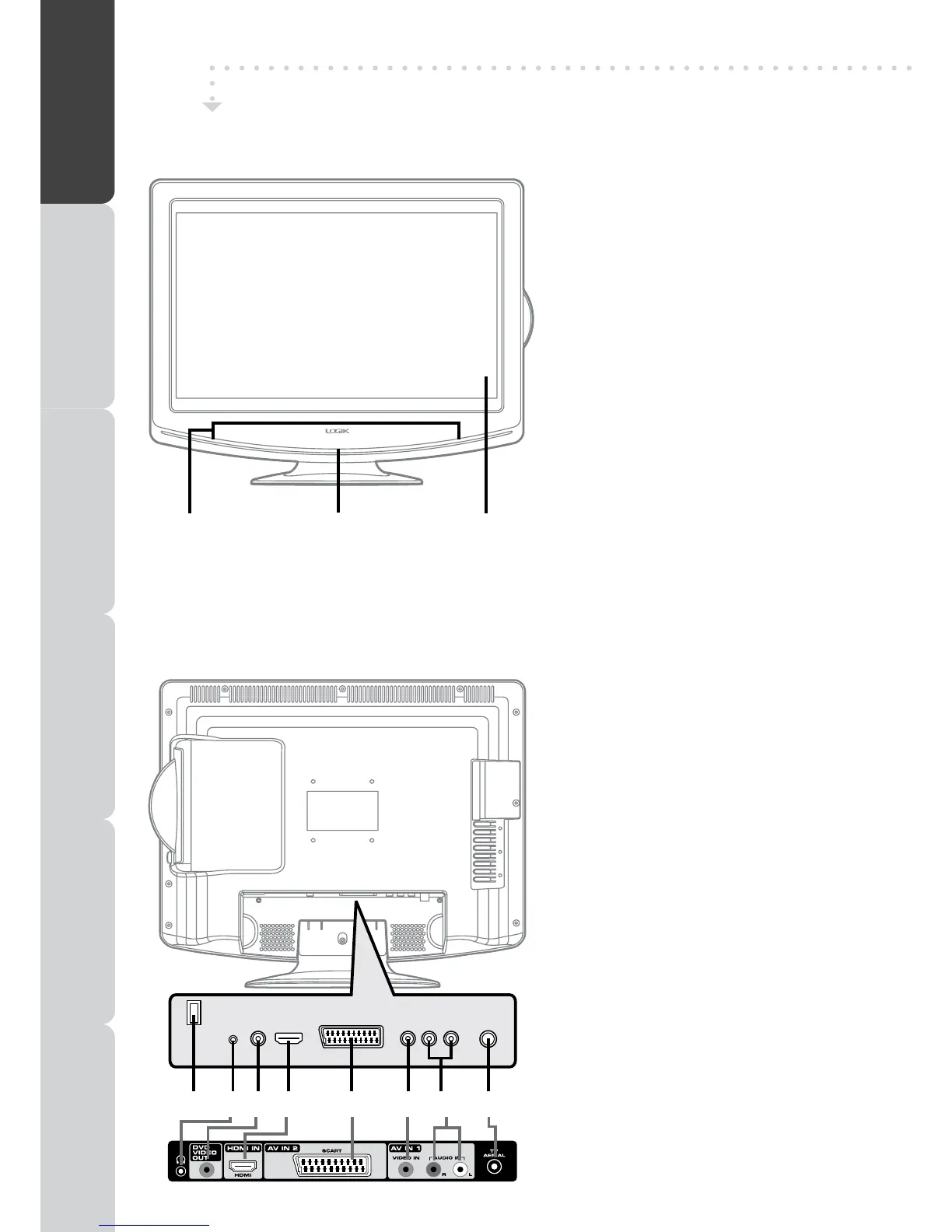

LCD TV
FRONT VIEW
BACK VIEW
1) Speakers
2) Remote Sensor
Do not block this sensor or the remote
control will not work.
Standby Indicator
Indicates whether the unit is ON or in
STANDBY (OFF) mode.
Light On: The unit is in STANDBY.
Light Off: The unit is turned ON.
3) Colour LCD Screen
PREPARATION
CONNECTIONS USING THE FEATURES SPECIFICATIONTROUBLESHOOTING
USING THE DVD
FEATURES
5
7
4
8
6
9
10 11
1 2 3
