GB
15

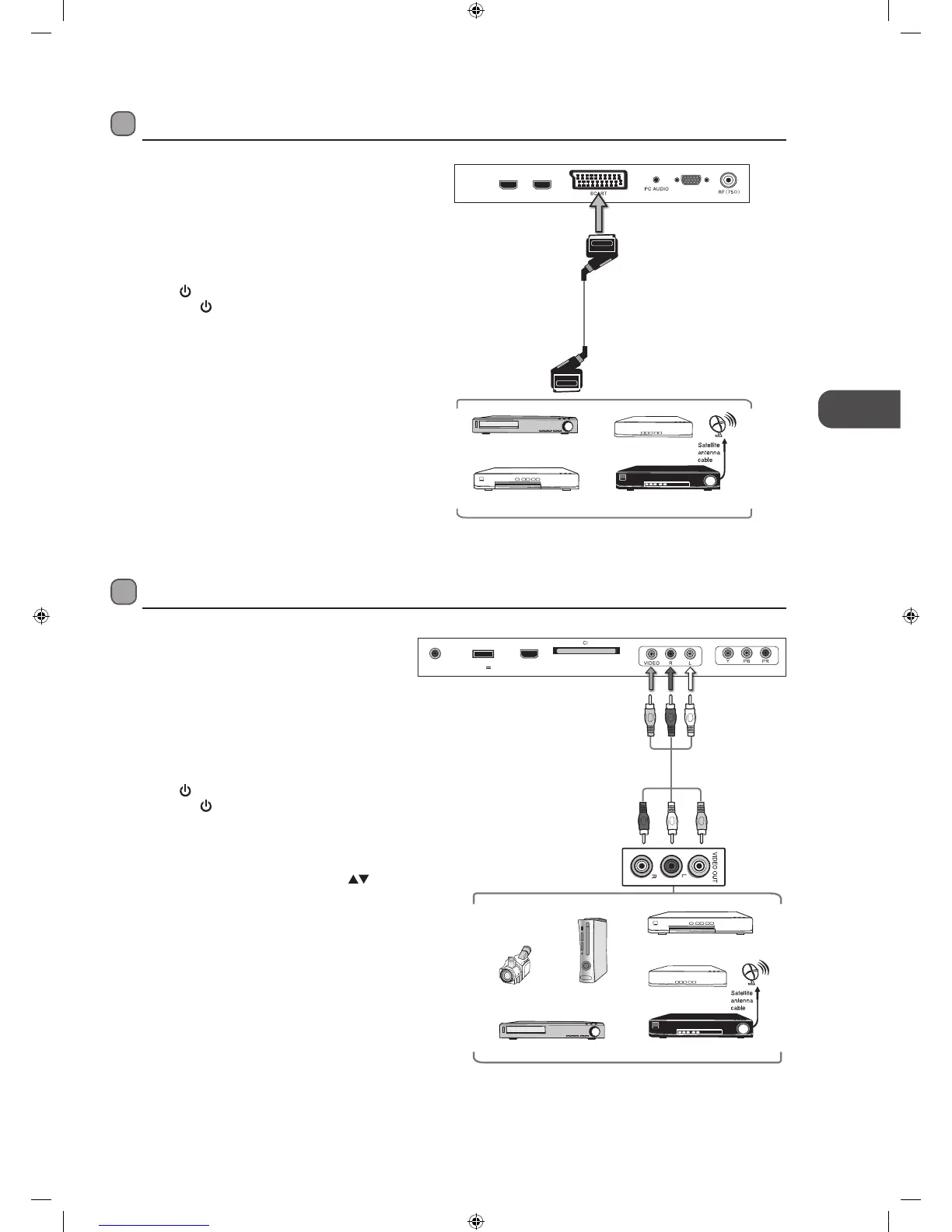

Connections
Connecting an AV Device Using Composite Cable
1. Use the supplied AV cable to connect the TVs
AUDIO(L/R)/VIDEO input sockets to an external AV
device’s composite audio/video sockets.
(Video = yellow, Audio Left = white, and Audio
Right = red)
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the front right side under the
frame.
3. Press the
/ I button on the front right side panel of
the TV or the
button on the remote control to turn
on your TV.
4. Press the SOURCE button on the front right side
panel of the TV or the INPUT button on the remote
control to display the Source List. Use the
buttons
to select AV and then press the OK button to confirm.
Connecting an AV Device Using a SCART Cable
1. Use a SCART cable (not included) to connect the TVs
SCART input socket to an external AV device’s SCART
output socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the front right side under the
frame.
3. Press the
/ I button on the front right side panel of
the TV or the
button on the remote control to turn
on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Rear Right Bottom View of TV
HDMI1 IN
HDMI2 IN
PC IN
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Rear Right Side View of TV
DIGITAL
AUDIO OUT
COAXIAL
USB
OUTPUT 5V 500mA
HDMI3 IN
AUDIO
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
