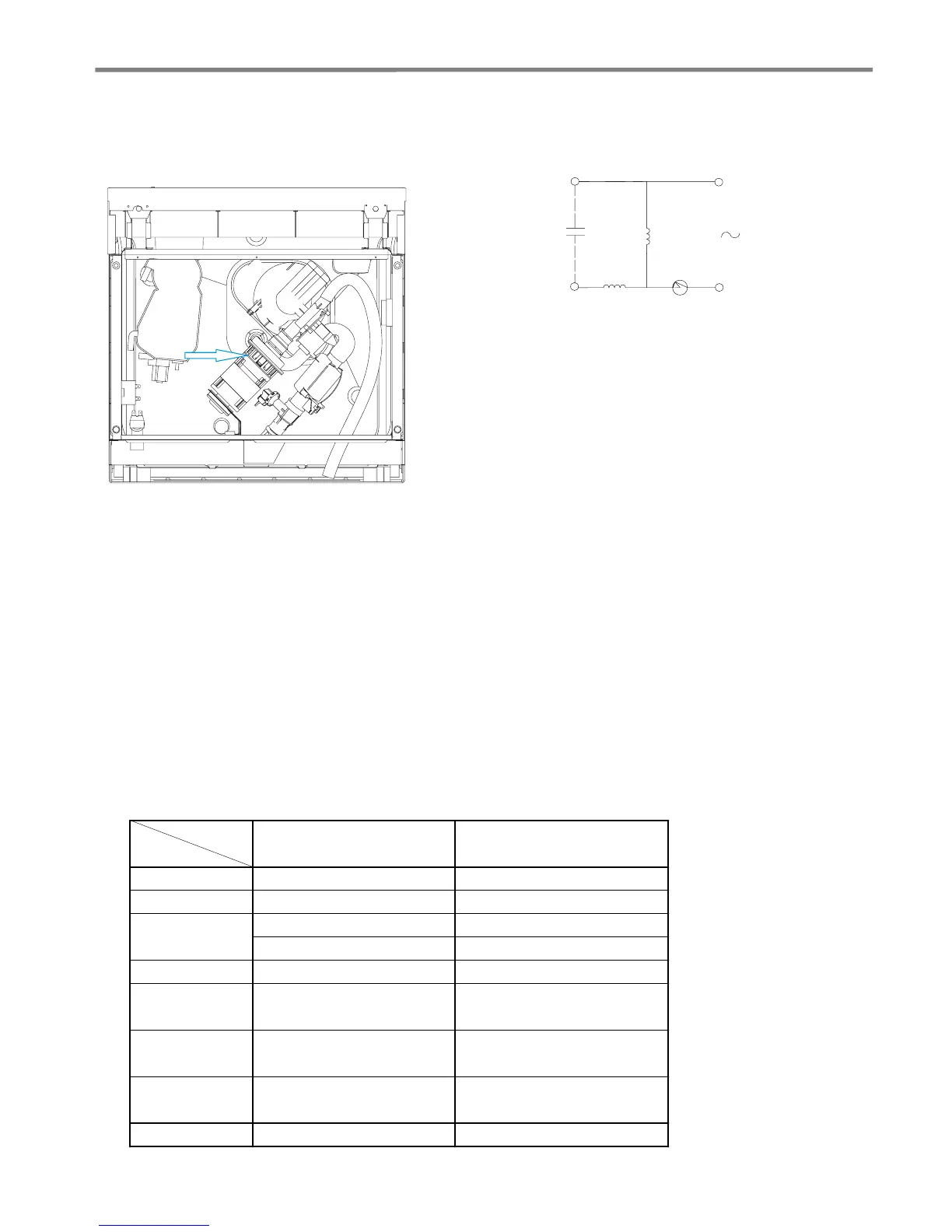

Washing Pump Theory of parts->
BViewottom
Location of Washing Pump
Technical data
The work principle
Washing pump is a kind of asynchronism motor
with capacitor. The stator consist of silicon
steel stack and two coils, main coil and
assistant coil .
The defeat point
1. The motor coil is broken, so the wash pump can’t work. It will cause E3 error.
2. The motor rotor capacitor is weaken, so washing pump can’t start. In this case, it will
send out the electromagnetism noise. If it is continue electrifying motor, the thermal
protector will work. It will cause E3 error.
3. The connector is loose, the wash pump can’t work. It will cause E3 error.
4. The rotor is locked by residues, so the wash pump can’t work . It will cause the E3 error.
5.The drain pump assembly bracket is loose, it will cause noise.
6.If the machine hasn’t been used for long time, there is a possibility the wash pump can’t
starting.
M-main coil
A-assistant coil
Models
Items
YXW65-2B YXW50-2
Nominal voltage 220-240VAC 220-240VAC
Frequency 50Hz 50Hz
Main coil: 84.8 7%Ω Main coil:93.10 7%Ω
Assistant coil:78.6 7%Ω Assistant:95.99 7%Ω
Delivery height 0.8m 1m(230VAC)
Delivery
performance
≥50l/min(230VAC) ≥50l/min(230VAC)
Lock rotor
current
≤1.50A 1.0 10%(230VAC)
Operating
current
0.65A 10% 0.47 10%(230VAC)
Capacitor 5μF 3μF
Resistance
