Flowmeter Theory of parts->

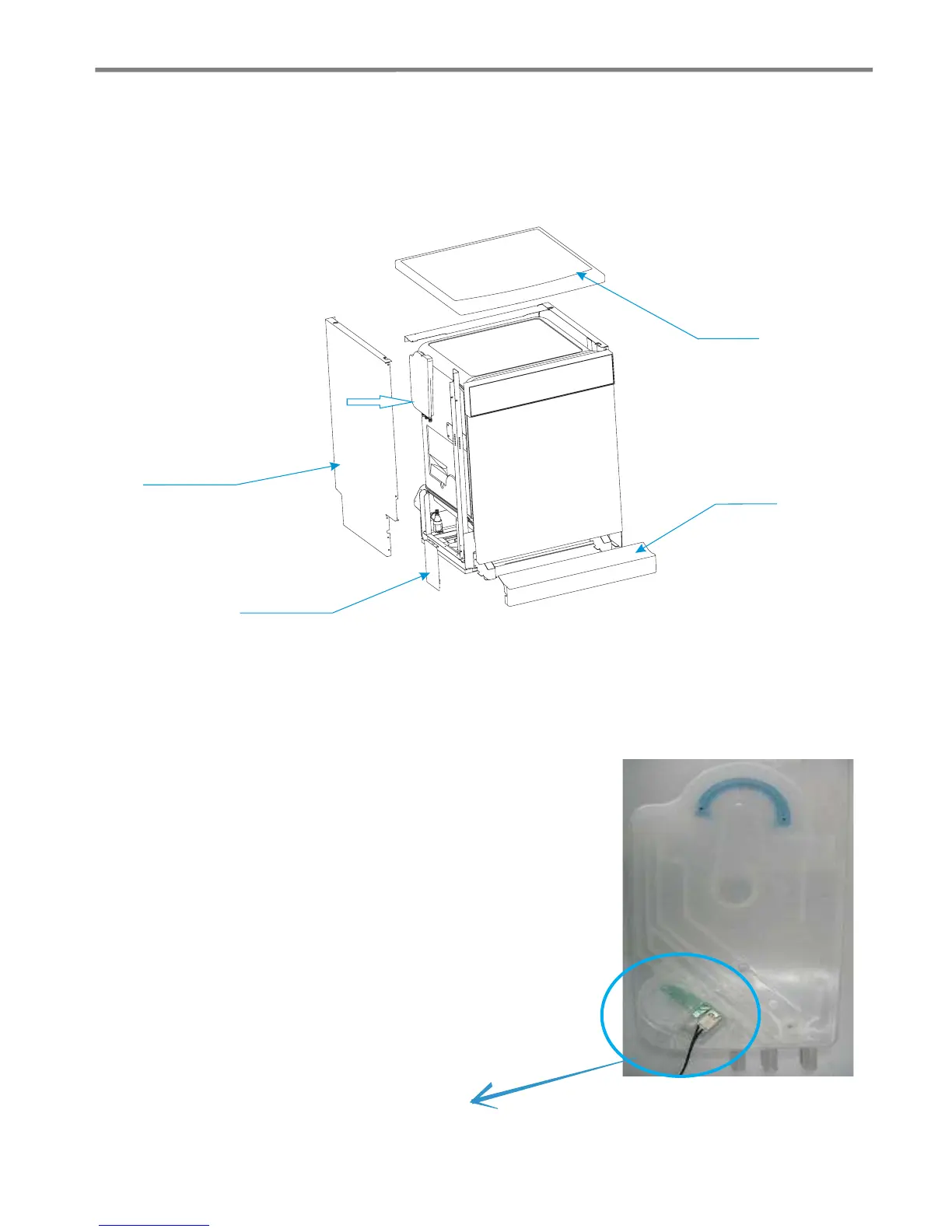

Location of Flowmeter
The work principle
Flowmeter
Flowmeter is integrated into Air Breaker. Function of
Flowmwter is measure how much water has entered in
appliance. it consists of impeller, tongue tube and
terminal, etc.
When water pass through the flowmeter, moving water
can rotate magnetic impeller, the tongue tube can sense
the impeller’s magnetic and send electronic pulses.
Top Panel
Side panel
Left Baseboard
Baseboard
Attention: Build in models have no Baseboard and left and
right baseboard, but adjustable baseboard.
