26

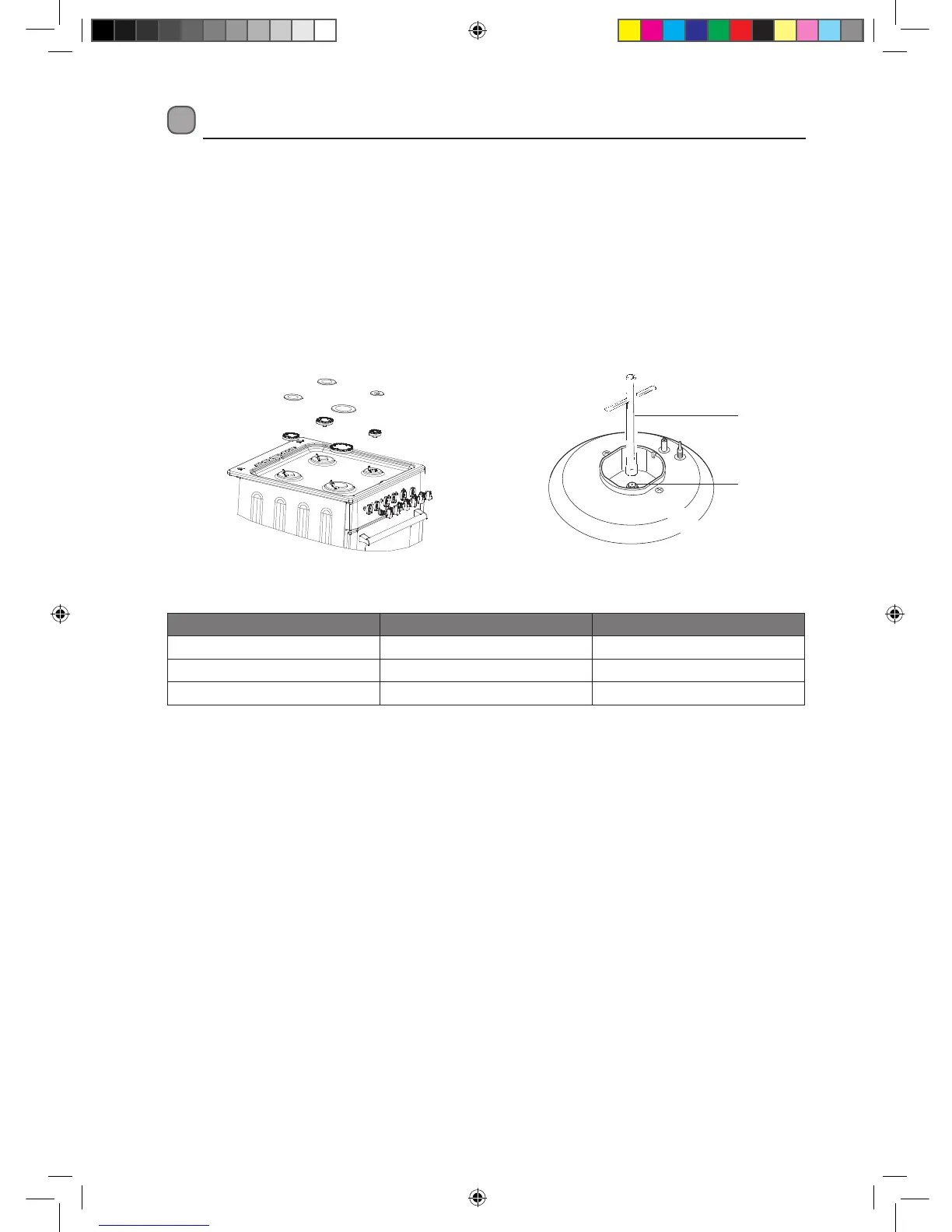

Replacement of Burner Injectors
Select the injectors to be replaced according to the “Table for the choice of the injectors”.
To Replace the Hob Injectors
• Turn off and isolate the Gas and Electric supplies to the cooker.
• Remove the burner ring and cap.
• Unscrew the injectors. For this, use a 7mm socket spanner.
• Replace the injector with the ones from the conversion set, with the corresponding diameters suitable to
the type of gas that is going to be used, according to the information chart (which is also supplied in the
conversion set).
The gas flow adjustment is made by turning a small screw on the control valves.
From LPG to Natural Gas From Natural Gas to LPG
Large Burner 1 turn counter-clockwise Turn fully clockwise
Standard Burner 1 turn counter-clockwise Turn fully clockwise
Small Burner 1 turn counter-clockwise Turn fully clockwise
Adjusting the Reduced Flame Position
The flame length in the minimum position is adjusted with a flat screw located on the side of the valve spindle
under the hob controls. The screw must be loosened by 1 turn when changing from LPG to NG. In changing from
NG to LPG, the same screw must be fully tightened clockwise. Make sure that the appliance is disconnected from
the mains supply and the gas feed is on.
When the flame has a length of at least 4mm, the gas is well distributed. Make sure that the flame does not die
out when passing from the maximum position to the minimum position. Create an artificial wind with your hand
toward the flame to see if the flames are stable.
Injector
Spanner
LFSTG50W_IB_final110420.indd 26 20/04/2011 10:10 PM
