INSTALLATION
9
448
395.4
36
56.2
100
Synthetic / Ceramic
Worktop
ST3.5x16
Hole Cover

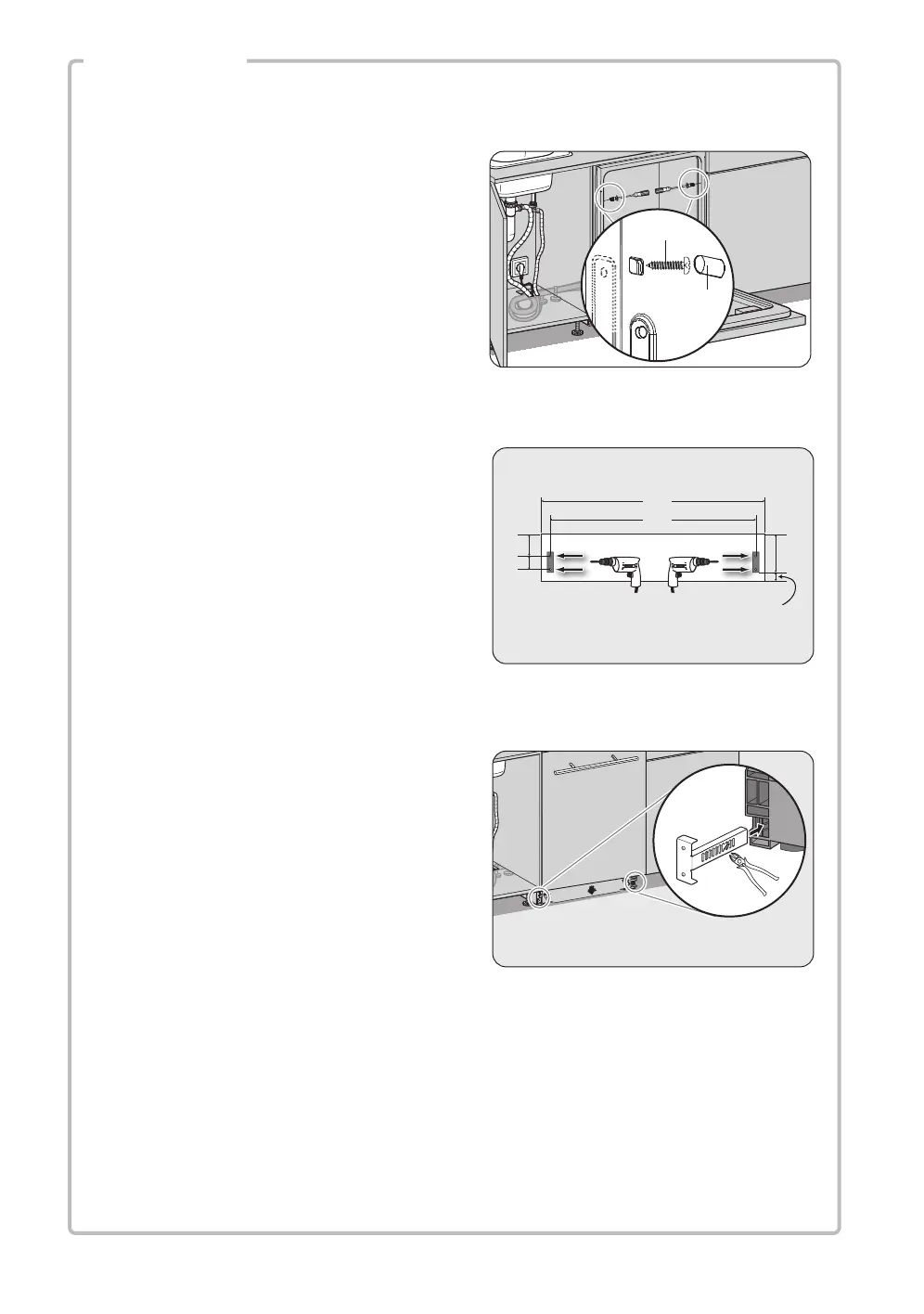

13. To secure the dishwasher under the table
top, tighten the screws as shown.
14. Cut out a 448 mm wide plinth for toe panel.
Tape the supplied toe panel mounting
brackets to the toe panel as shown. Drill the
required holes.
15. Determine the correct position for the
toe panel mounting bracket, remove
the bracket and bend the metal tab. This
ensures that the toe panel won’t slide in
further than you need.
