Logitech Logi Dock User Manual

Volume up/down
Unmute/Mute Video on/o
1X
Time of
meeting
Answer
call
Reject
call
End
call
Invoke /
Close Tune
1X 1X2 sec.

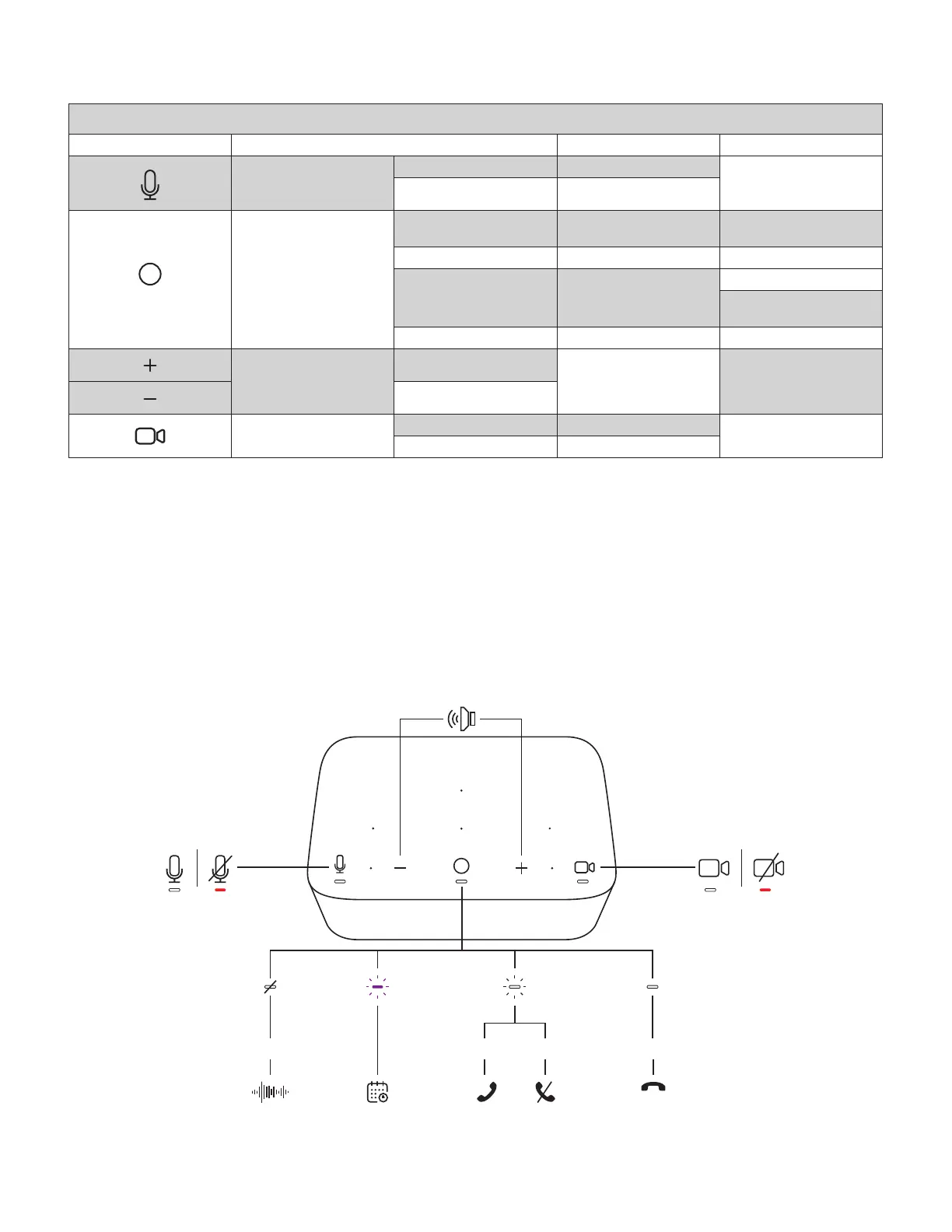

MEETING CONTROLS AND INDICATOR LIGHT
Note:
– When the Zone Wireless (Plus) headset or Zone True Wireless earbuds are
connected to Logi Dock, both speakerphone and headset status will be in sync.
– Mute indicator light is available when Logi Dock, Zone Wireless (Plus) headset or
Zone True Wireless earbuds are the audio source. Video indicator light is available
for UC or Teams-certied devices only.
UC version
Button Usage Indicator light Action
Mute
Mute on Solid RED
Short press
Mute o Solid WHITE
Call Controls
Idle state 
Short press to invoke /
close Tune
Time of meeting Flashing PURPLE 
Incoming call Flashing WHITE
Short press to answer call
2 seconds press to reject
call
Active call Solid WHITE Short press to end call
Volume
Volume up
 Short press
Volume down
Video
Video on Solid WHITE
Short press
Video o Solid RED
6 English

Logitech Logi Dock Specifications

General

Product type	-
Product color	Graphite
Number of persons	1 person(s)
Megapixel	- MP
Image sensor size	- \
Maximum video resolution	3840 x 2160 pixels
Microphone frequency	65 - 8000 Hz
Number of microphones	6
Driver diameter	55 mm
Frequency range	60 - 20000 Hz
Cable lock slot type	Kensington
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	3
DC input voltage	19.5 V
Power source type	AC
Power consumption (max)	230 W
USB Power Delivery up to	100 W
Cables included	AC, DC, USB Type-C to USB Type-C
Power cable length	1.7 m
Ethernet LAN	No
Master (outer) case width	471 mm
Master (outer) case height	184 mm
Master (outer) case length	505 mm
Master (outer) case weight	11940 g
Harmonized System (HS) code	85176990
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Other operating systems supported	ChromeOS
Windows operating systems supported	Windows 10, Windows 11

Weight and Dimensions

Depth	131.5 mm
Width	106 mm
Height	84.8 mm
Weight	942 g
Package depth	247.5 mm
Package width	227 mm
Package height	169 mm
Package weight	2738 g
