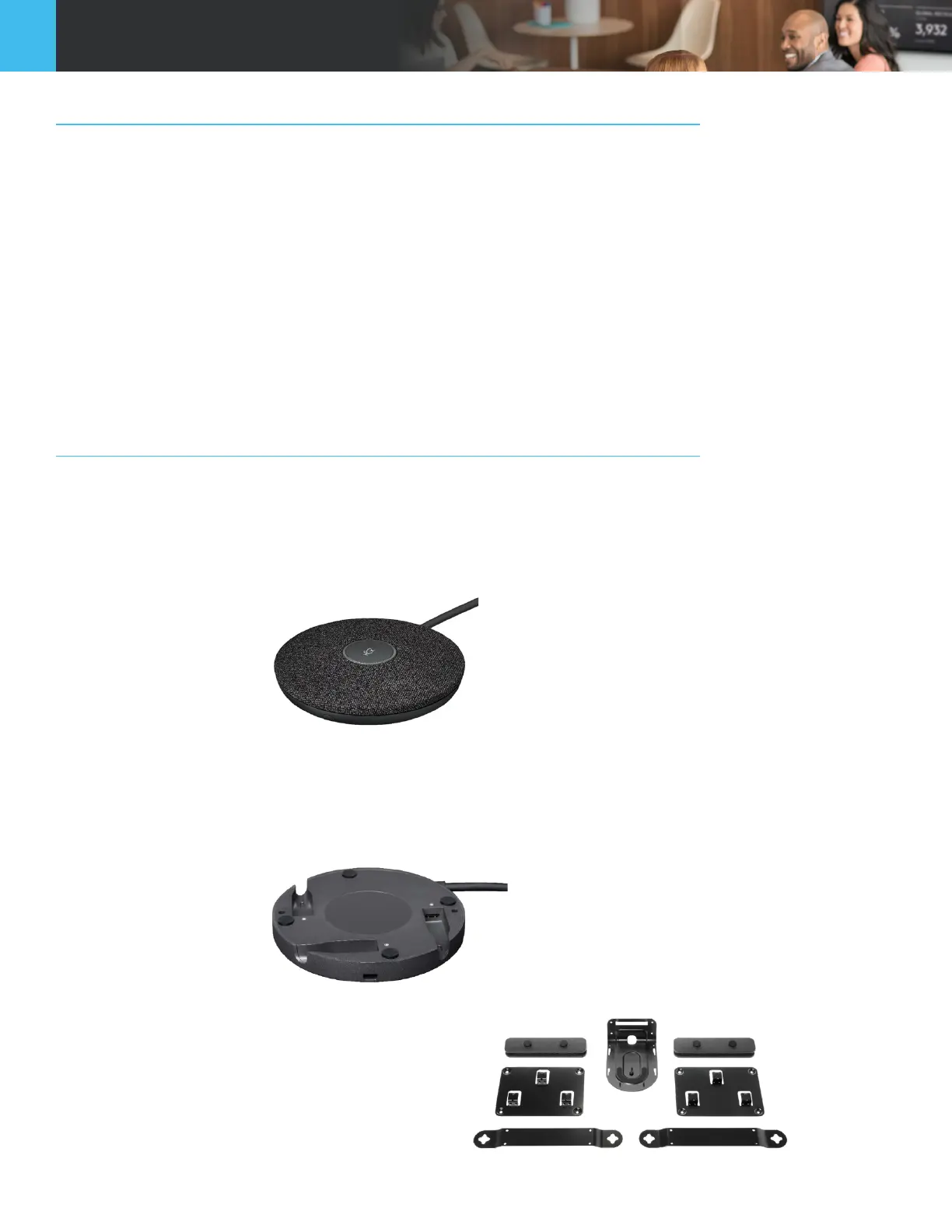

LOGITECH RALLY AND RALLY PLUS IMPLEMENTATION GUIDE


a. ADDITIONAL MIC PODS: Rally supports up to seven (7) Mic Pods. By adding additional
Mic Pods you can assure excellent microphone coverage in varying room sizes and table
congurations.
p22
c. Mounting Kit:
 
 
 
 
 
b. Mic Pod Hub: The Mic Pod Hub has two common uses: The rst is in microphone
routing congurations where the desire is to run most of the cabling below the table.
The second is table congurations that may require the mics to be branched instead
of daisy chained. The Mic Pod Hub has three (3) jacks that can be connected to a
combination of Mic Pods or other Mic Pod Hubs. A maximum of 7 Mic Pod Hubs can be
used.

Rally and the remote control are paired at the factory. . If the Table Hub, Camera or
Remote are replaced, the remote must be re-paired with the system. Further, you can pair
up to 5 remote controls to Rally or Rally Plus to make it easier to control the system in larger
rooms. To pair a remote, do the following:
a. Press and hold button on the back of the camera until the LED ashes blue.
b. Press and hold the button on the side of the Display Hub until the LED ashes.
c. Press and hold the Bluetooth button on the remote for ten (10) seconds to place it in
pairing mode.
d. Once the remote and Display Hub and camera are paired the LED will stop ashing.
e. If the pairing fails, the LEDs will keep ashing. Start from step b and repeat.
