Logitech Squeezebox Boom User Manual

8 Logitech
®

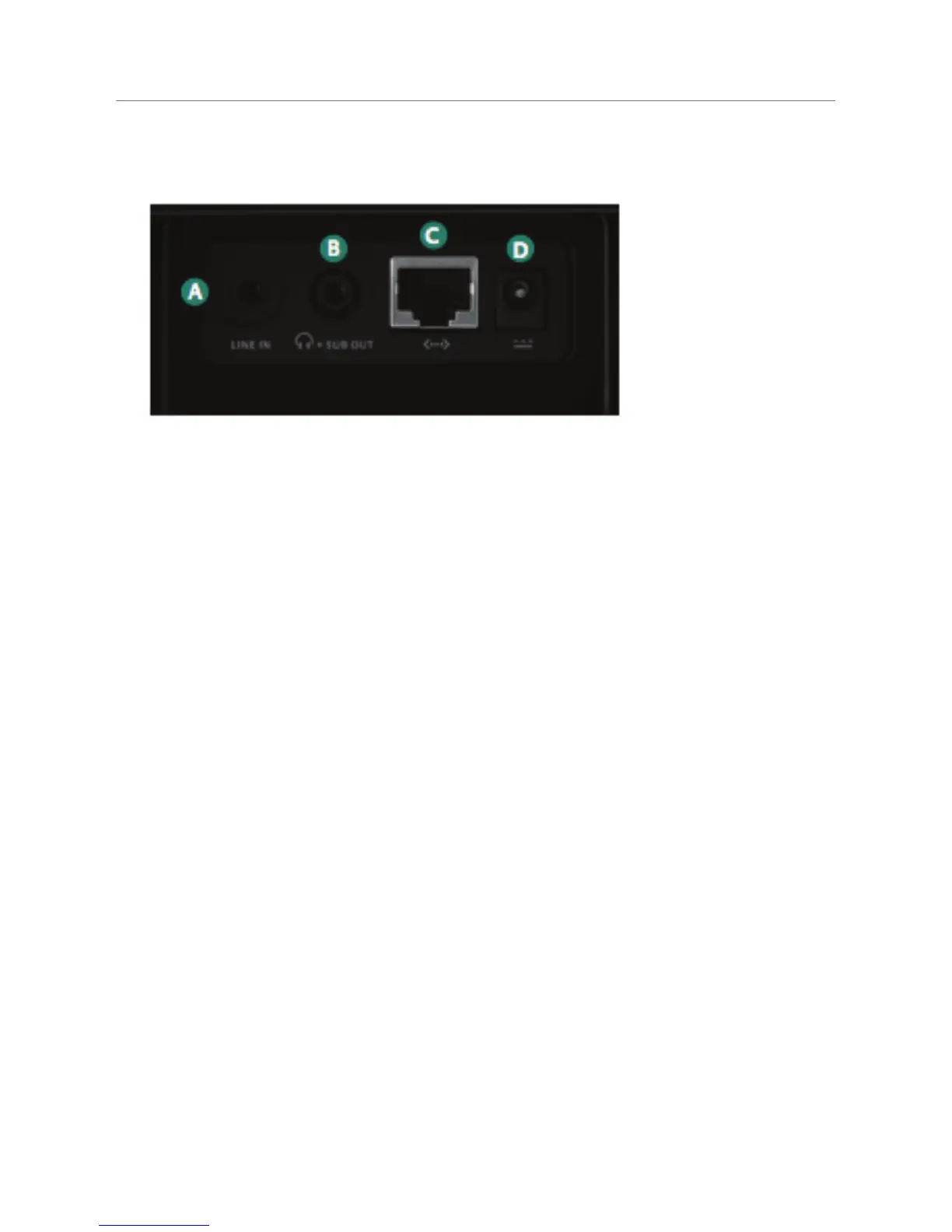

Back Panel Connectors
A. Line in. Ideal for connecting an MP3 player, portable CD player, or other audio
device with a 3.5mm line level output and enjoying Squeezebox Boom’s advance
driver design and acoustics. It’s not necessary to select Line In as a source from
the front panel; Squeezebox Boom will automatically detect the connection of
your device.
B. Headphone or subwoofer out. Connect headphones for private listening,
or a powered subwoofer to add bass reinforcement. Since this is a dual-purpose
connector, you must select Settings > Audio > Line Out from the Home Screen
to select headphone or subwoofer output. If you are using headphones and the
audio comes from only one channel, check to make sure that the subwoofer
setting is not selected.
C. Ethernet. If you prefer to use an ethernet connection rather than Squeezebox
Boom’s built-in wireless, you can use your own ethernet cable to connect
Squeezebox Boom to your network.
D. Power. Be sure to use only the power supply provided with Squeezebox Boom.

Logitech Squeezebox Boom Specifications

General

RMS rated power	30 W
Integrated clock	Yes
Connectivity technology	Wired & Wireless
Compatible operating systems	Windows XP/2000/NT, Windows Vista, Macintosh OSX 10.3.5, Linux/BSD/Solaris (Perl 5.8.3)
Ethernet LAN (RJ-45) ports	1
Networking features	10/100Base-T, 802.11g
Product color	Black
Audio formats supported	AAC, AIFF, FLAC, MP3, Ogg, WAV, WMA
Image formats supported	Not supported
Minimum RAM	256 MB
Minimum processor	Pentium 733MHz
Minimum storage drive space	80 MB
Minimum system requirements	Ethernet / 802.11b/g
