Logitek ROC 10 - Port 4; RS-232

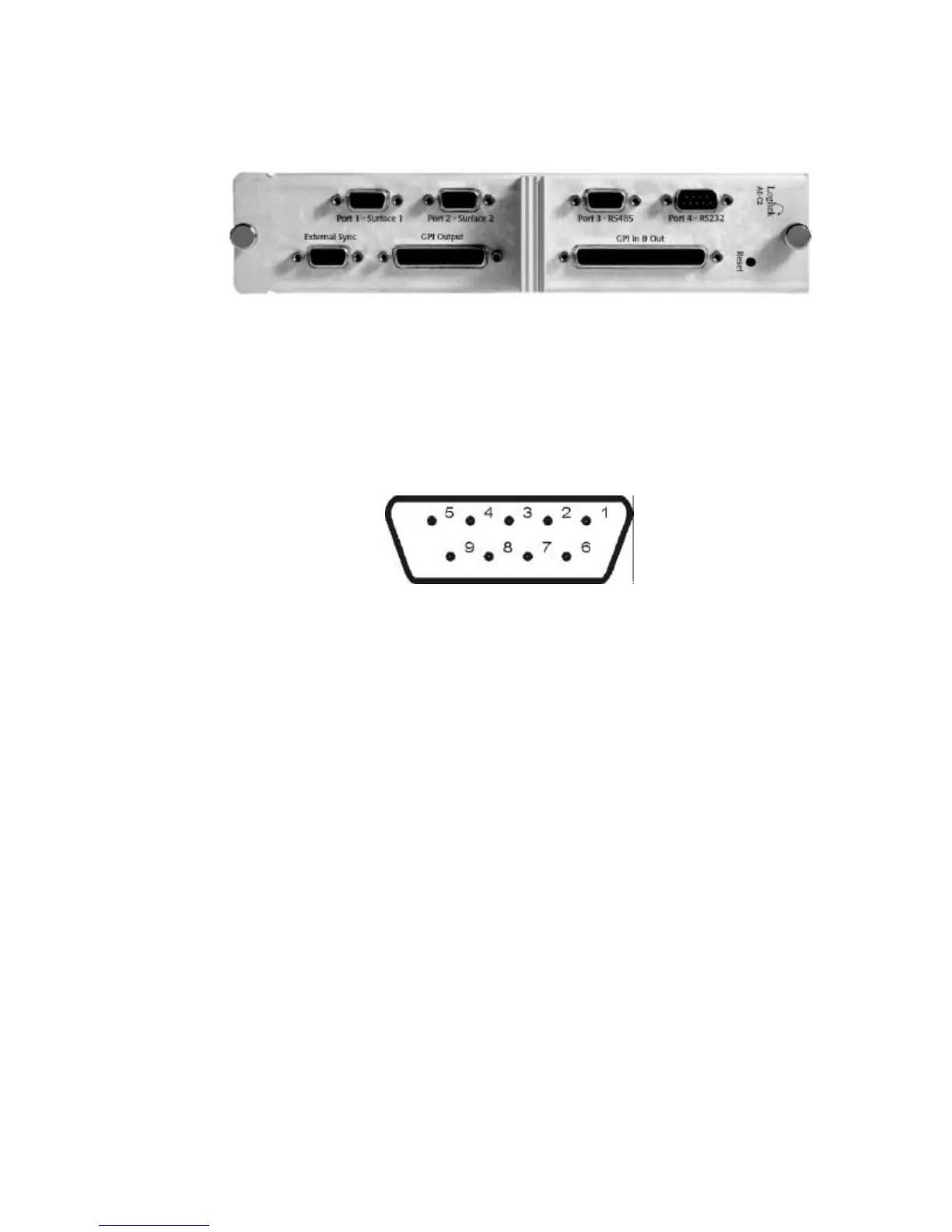

Port 4 / RS-232
The RS-232 port is used to program the Audio Engine by connecting to a
computer through its serial port. Port 4 is also the main point used by broadcast
automation to control the Audio Engine. This port operates at 38.4 Kbps, 8 data
bits, 1 stop bit and even parity. The cable uses a male connector at the Audio
Engine and a female connector at the computer. Wire pin 2 to pin 2, pin 3 to pin
3 and pin 5 to pin 5.
Logitek Digital Consoles
Appendix 23
Audio Engine
Pin 1 No Connect
2 TX
3 RX
4 No Connect
5 Ground
6 No Connect
7 No Connect
8 No Connect
9 No Connect
Computer
Pin 1 No Connect
2 RX
3 TX
4 No Connect
5 Ground
6 No Connect
7 No Connect
8 No Connect
9 No Connect
