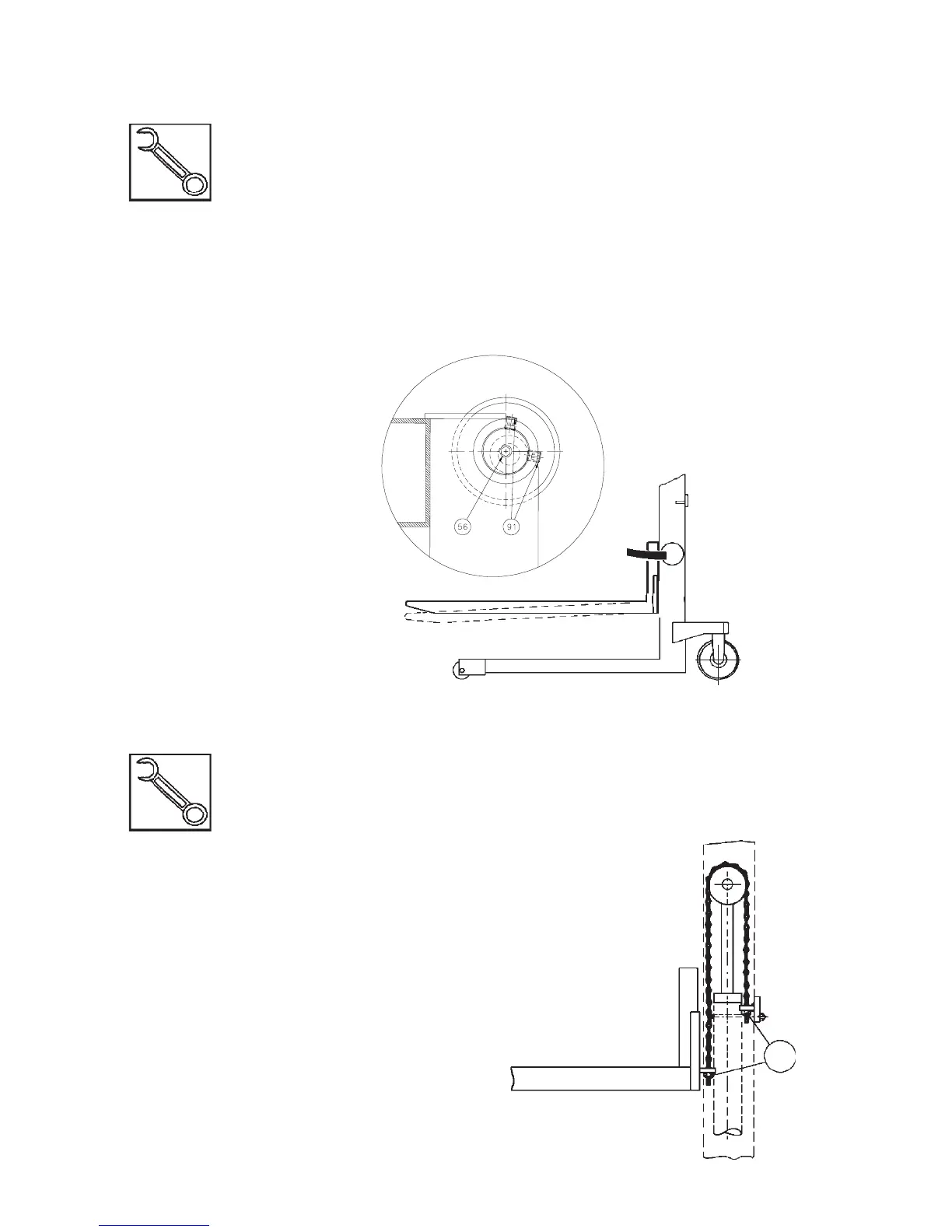

5.3 Fork adjustment
Two of the rollers on the fork bracket are mounted on eccentric
pins so that they can be adjusted. The adjustable rollers are upper
most.
1. Loosen setscrews pos. 91 (5 mm a/flats).
2. Eccentric pin pos. 56 (8 mm a/flats) can now be turned to
give the necessary fork adjustment.
3. Adjustment must be made on both sides to ensure uniform
loading of the rollers.
5.4 Adjustment of lifting chain
The chains shall be adjusted so that they lift equally. Shall be
equally tight. Adjustment are made on nuts, pos. 18
(nut M12, key width 19 mm).
With straddle versions, chains keep the forks clear of the
floor.
