7
Total
00005
Sub:
01,2
batt:
90 - 100%
70 - 90%
50 - 70%
25 - 50%
15 - 25%
0 - 15%
18
27
19
Electric system Electronic control Comments
17. A/D 100% voltage The voltage given by the Hall effect units to enable maximum power
(but see points 1, 2 and 3).
18. Total hours Total controller hours.
19. Subtotal hours Hours operated since last battery charge (see point 15).
20. Number of charges Measures the number of charges by counting how many times the voltage
exceeds the voltage “Battery charging voltage” (see point 15).
21. Number of discharges Measures how many times the voltage falls below the voltage given by
“Battery 15%” (see point 14).
22. Serial No. The controller serial No. - for factory use only.
23. Program version The controller program version No. - for factory use only.
24. Memory The controller memory No. - for factory use only.
25. Error counters The following event counters can be seen in the PC program.
Current limiter forwards/current limiter reverse:
Counts the number of times the maximum current for operations
forwards/reverse has been exceeded, i.e. the controller has been
overloaded. This has error message No. 3 in the mini display and error
messages No. 30 and 31 in the display, see point 26.
Error on Hall units:
Connection to handle is incorrect.
This has error message No. 1 in the mini display and error messages
No. 10 - 14 in the display.
Error in hour counter:
For factory use only.
Overheated:
Counts the number of times the maximum temperature has been
exceeded, i.e. the controller has been overloaded. This has error
message No. 4 in the mini display and error message No. 40 in the display.
Extra counter 1/extra counter 2: Not used.
26. Error messages See“Logitranscontrollerdisplay.”

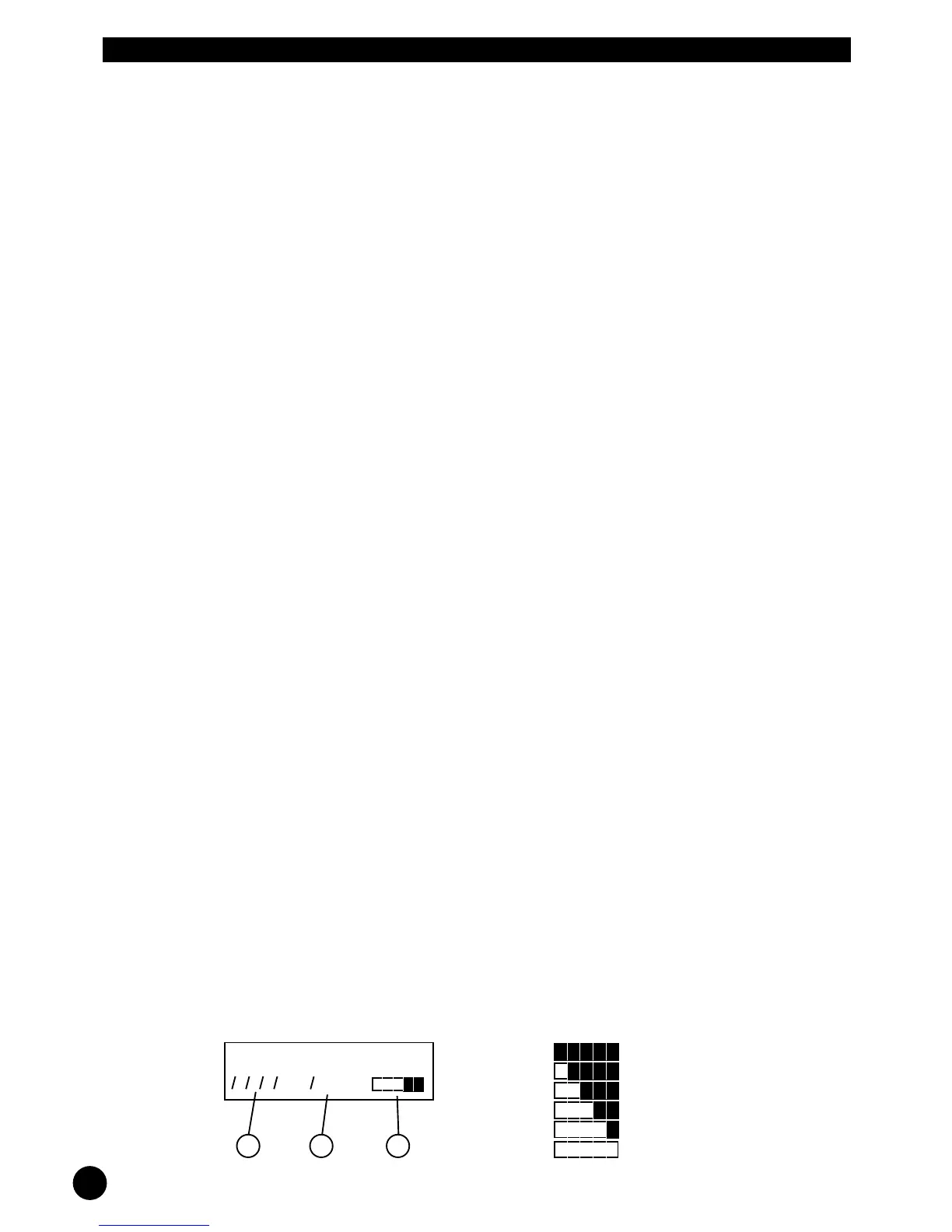

27. Battery meter Indicates on the display/battery indicator the charge state of the battery
depending on the settings of the parameters in points 10 - 14:
