LogTag TRIX-8 V2 Work Instruction Manual Revision 10.17 Page 10/44
1.2 Separate PCBAs from Panel
Carefully break out PCBA’s from panel – be very careful to not apply excessive bending to PCBA to prevent
damage to components. (Ceramic capacitors can easily be damaged by this !!)
NOTE: DO NOT distort or stress the panel too much at any time
1.3 Clean residue around sensor circuit area and crystal

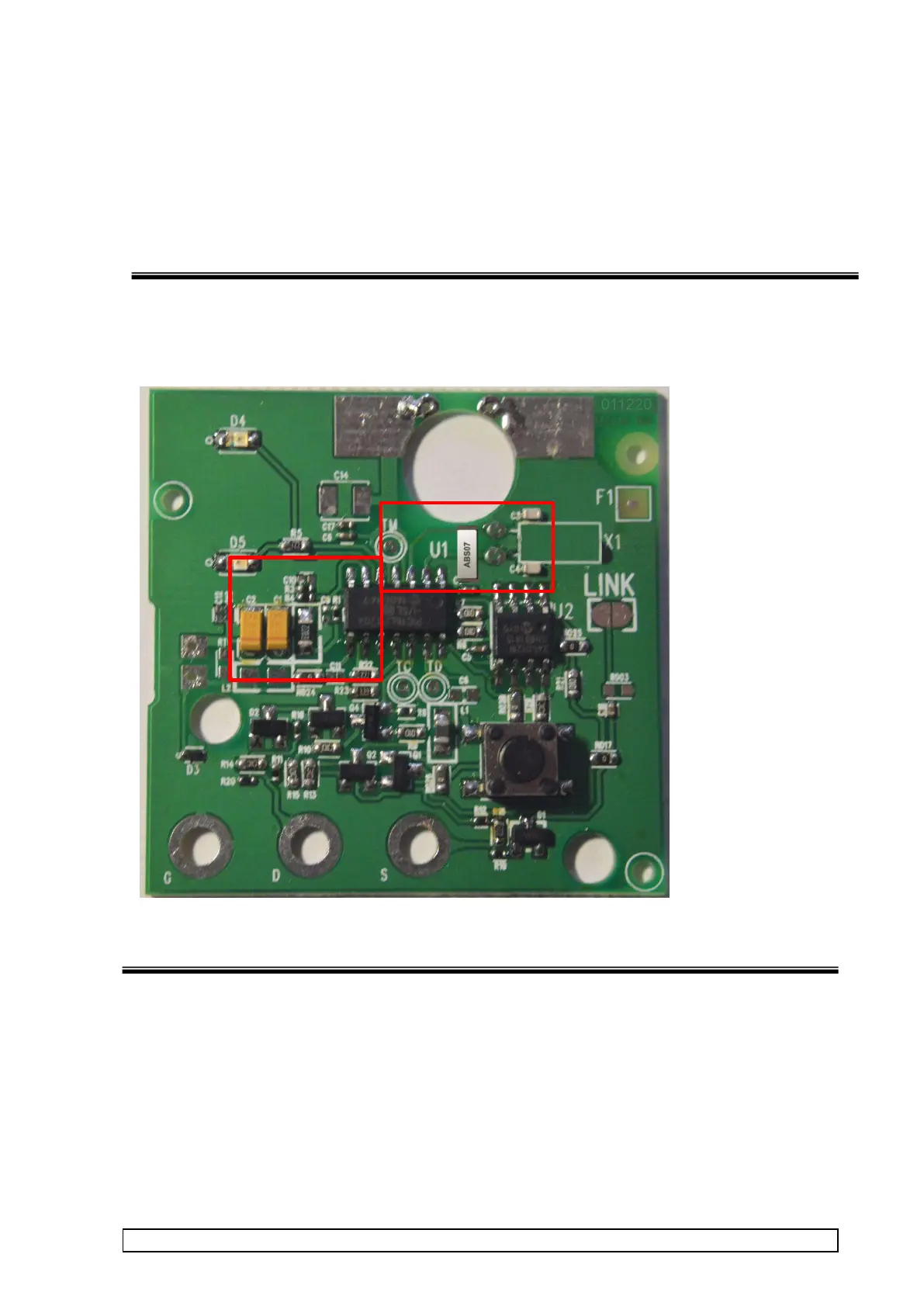

Clean the PCB of soldering residue in the areas indicated in the picture below :-
