LogTag TRIX-8 V2 Work Instruction Manual Revision 10.17 Page 12/44

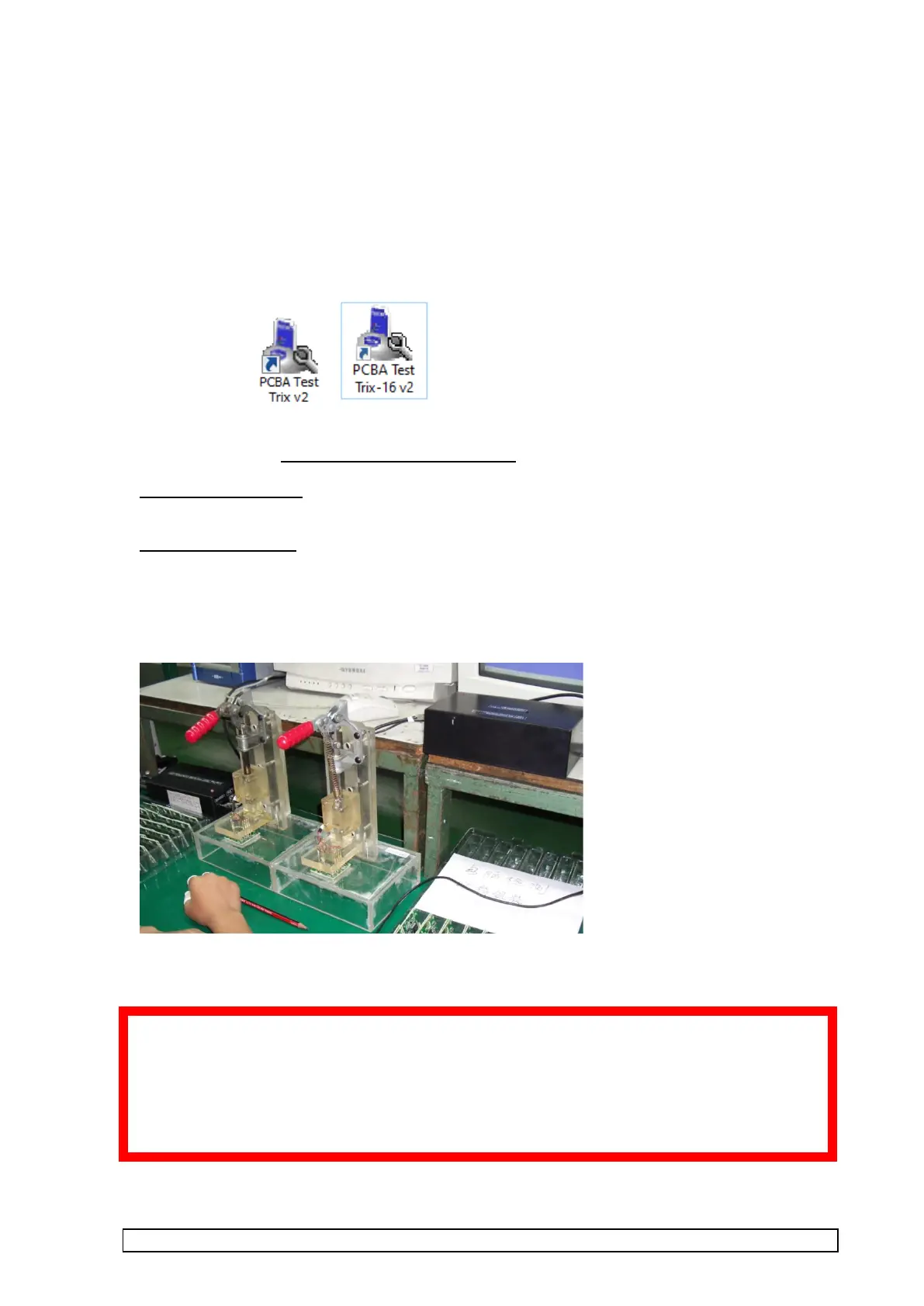

1.5 Test & calibrate LogTag TRIX PCBA (test fixture)
The TRIX PCBA tests use the LogTag production test software.
There are two versions of the TRIX PCBA; TRIX-8 & TRIX-16 :-
• TRIX-8 PCBAs are tested with “PCBA Test Trix v2"
TRIX-16 PCBAs are tested with “PCBA Test Trix-16 v2"
The test icon is :
The software runs on a PC under Windows 7.
Production software Installation version 2.8 build 77 or later is required.
Reason for test stage:
To test & verify complete PCBA function and calibrate the temperature sensor circuit.
Equipment required:-
• PC installed with Windows 7 and the required production software package
• PC’s date/time MUST be correct
• PC must have at least RS232 communications port 1 (COM1) available.
A second test fixture controller can also be run on COM2.
• Test fixture plugged into controller(s).
• At least one Test fixture control unit plugged into RS232 COM1.
• Power supply plugged into & powering test fixture control unit.
NOTE:
If the test fixture is being transferred from another computer during a production run the serial
number file will need to be transferred also to preserve the serial number sequence of LogTags in
the production run.
See Appendix 5 : Serial Number File Maintenance
