LogTag TRIX-8 V2 Work Instruction Manual Revision 10.17 Page 13/44
Setup for TRIX-8/16 PCBA testing
• Turn on PC, plug fixture controller into serial ports COM1 (&COM2 if second controller also used)
• Test Fixture(s) powered from 9V DC power supply
• Start up the PCBA test for the correct version to be tested:
“Test & Cal TRIX-8 / TREX-8 PCBA” software by double clicking the “PCBA Test Trix v2”
“Test & Cal TRIX-16 PCBA” software by double clicking the “PCBA Test Trix-16 v2”
icon :

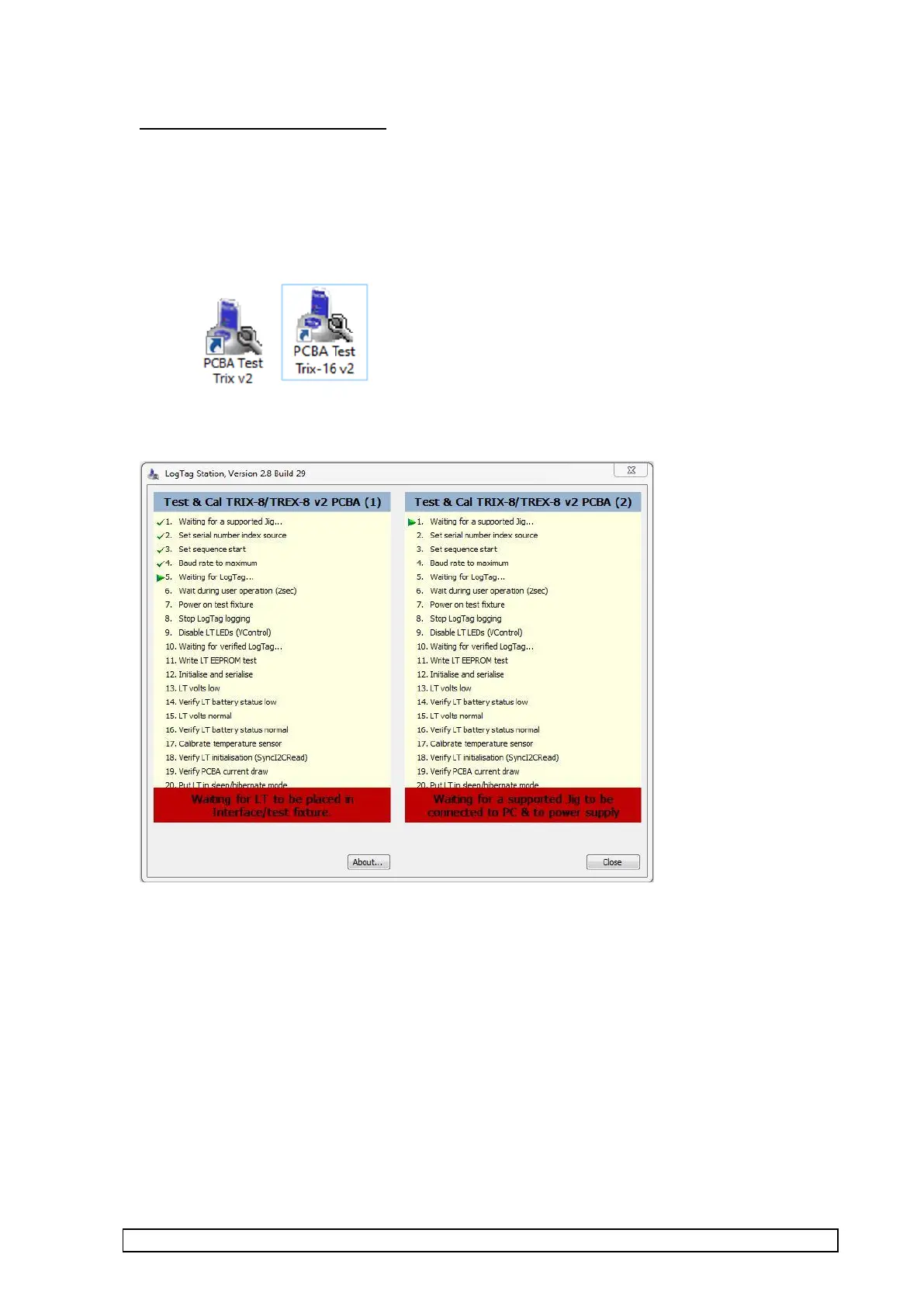

Software opens with the following screen (TRIX-8 shown):-
