LogTag TRIX-8 V2 - Apply RTV and Conformal Coating

LogTag TRIX-8 V2 Work Instruction Manual Revision 10.17 Page 19/44
1.9 Apply RTV & conformal coat
Conformal coating : Humiseal conformal coating 1B31.
Thinner for Humiseal 1B31.
Sealant : Dow Corning 3140 Non corrosive RTV sealant.
Non-acid cure RTV is required.
Procedure:

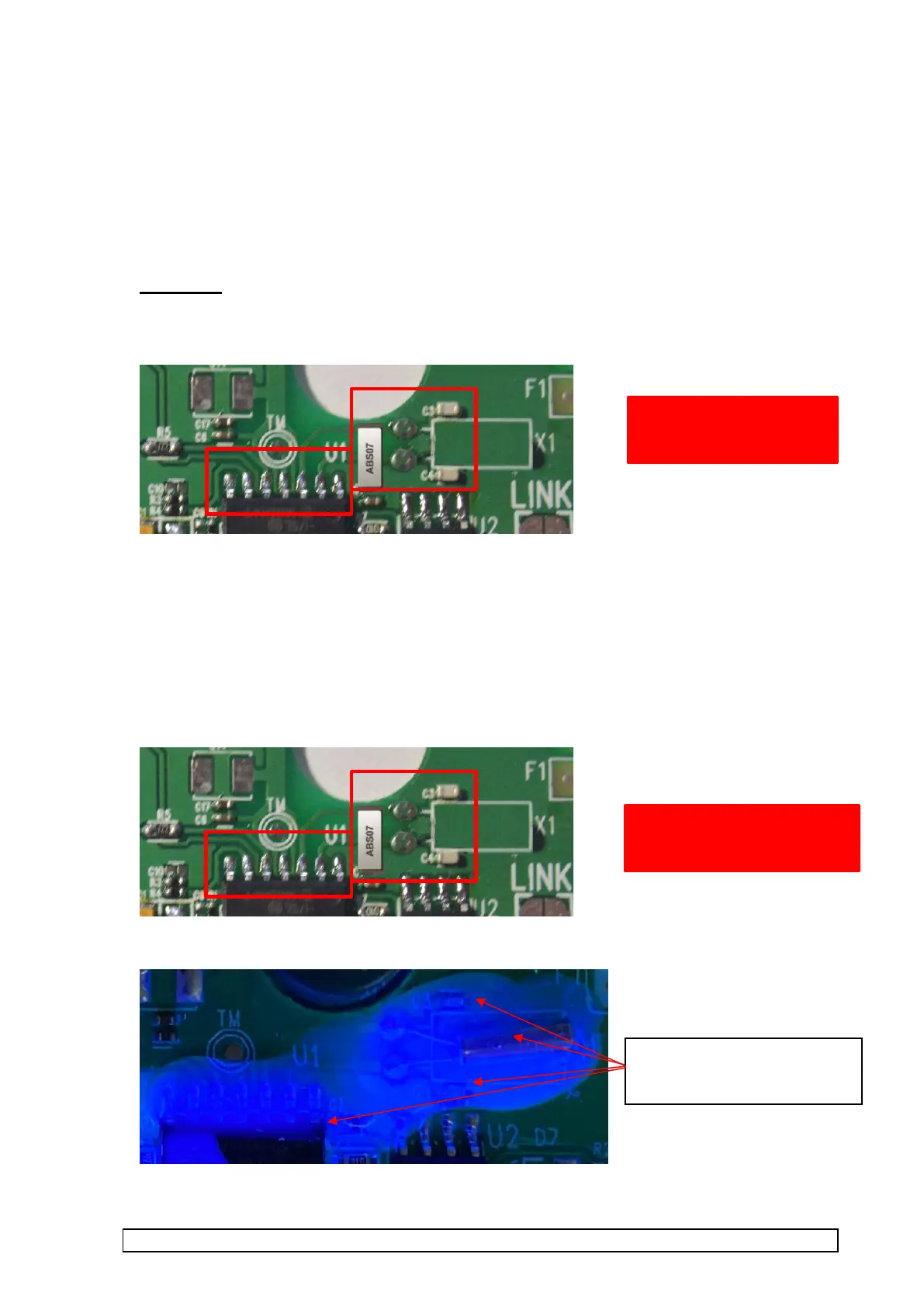

1. Apply RTV to the crystal C3, C4 and the top of U1 as shown.
2. Allow to dry for 8 hours before proceeding to next step.
3. Using the dispensing robot, conformal coat over the RTV’d crystal, C3, C4, top of U1. Also, apply 2
passes of conformal coat over the ADC circuit in different directions to fully cover the tantalum
capacitors.
Place RTV in
marked area
Conformal coat area
marked in red
Make sure to fully cover the
RTV’d crystal, C3, C4, and top
of U1
