LogTag TRIX-8 V2 Work Instruction Manual Revision 10.17 Page 20/44

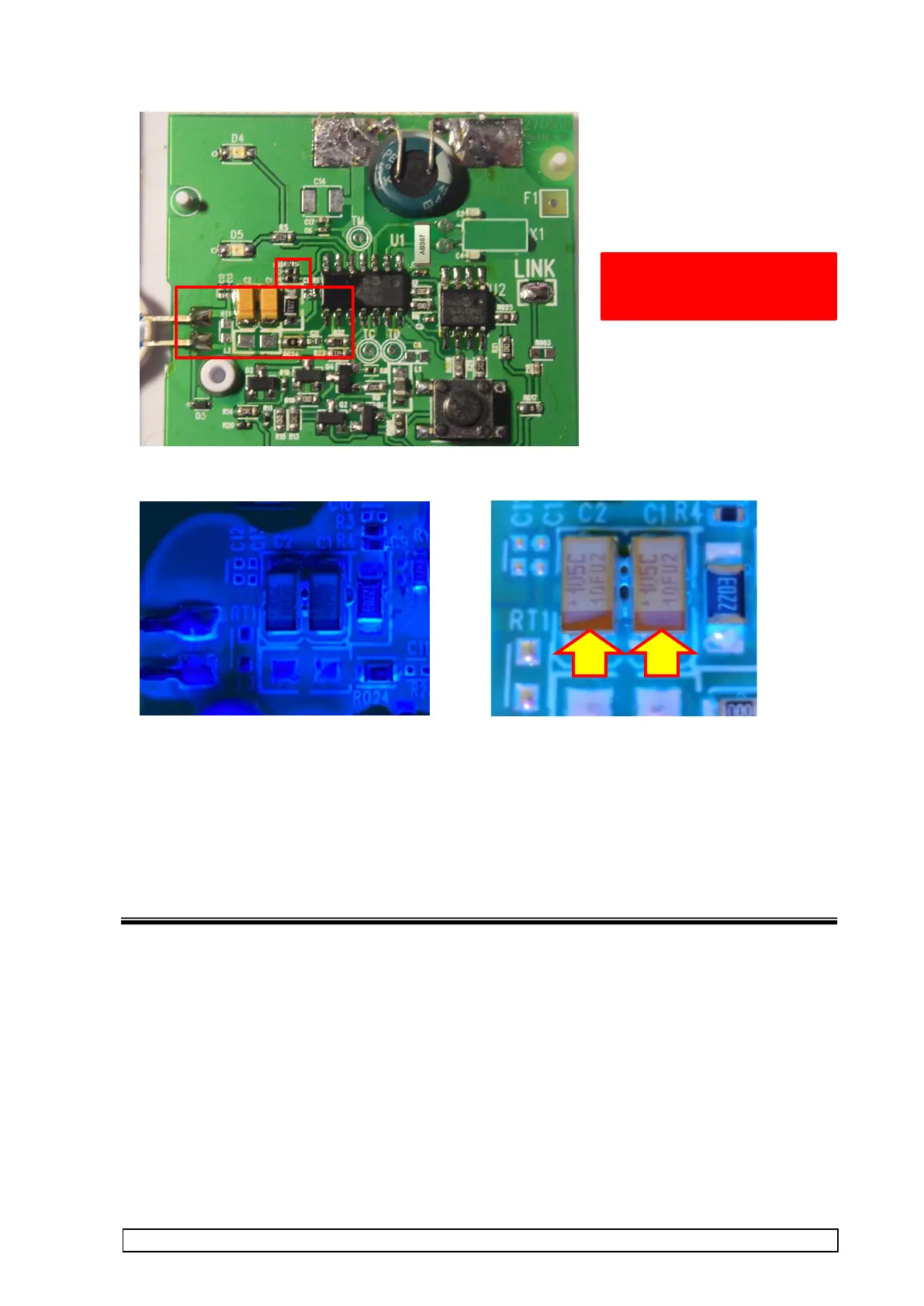

Photos below are samples of Correct and Wrong conformal coating:
Correct : Tantalum caps are fully coated Wrong: Tantalum caps are not fully coated at the bottom
4. Allow to dry for 3 hours before proceeding to next step.
Conformal coat area
marked in red
