LogTag TRIX-8 V2 - Appendix 1: PCBA Component Map

LogTag TRIX-8 V2 Work Instruction Manual Revision 10.17 Page 39/44

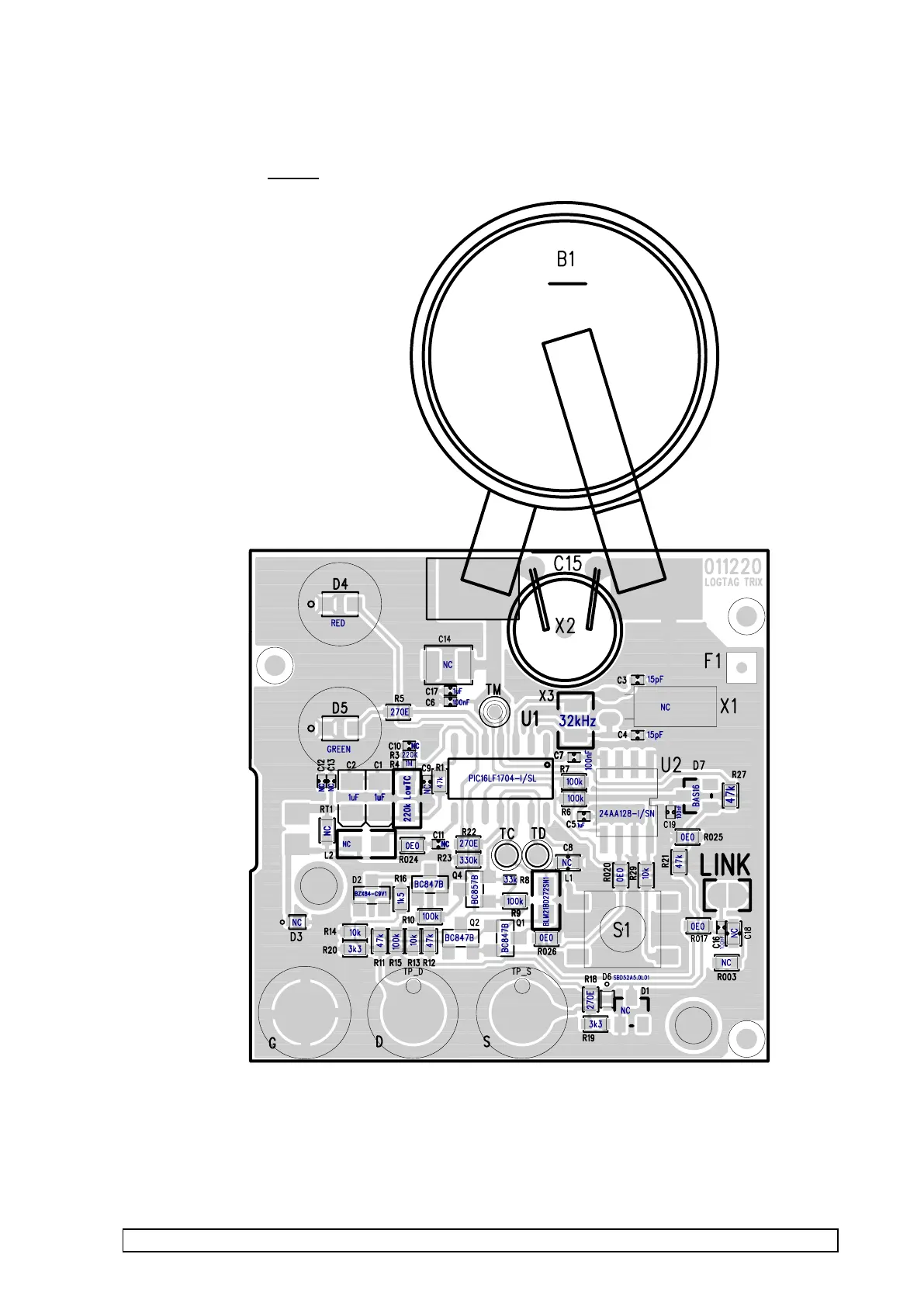

APPENDIX 1 : LogTag TRIX-8/16 V2 PCBA Component Map
PCBID : 011220 ONLY
Where :-
D4 = RED 0805 LED – Lucky Light Part# GB-SM0805USW-TR
D5 = GREEN 0805 LED – Lucky Light Part# GB-SM0805UYGW-TR
NC = No Component placed
U2 = TRIX-16 = 24AA256-I/SN, TRIX-8 = 24AA128-I/SN
