LogTag UTRIX Work Instruction Manual Revision 1.07 MP Release Page 16/52
1.7 Fit USB connector
The USB plug has side tabs that are bent over the underside of the PCBA using a mounting jig and the
sides of the plug top soldered to pads on the PCBA.

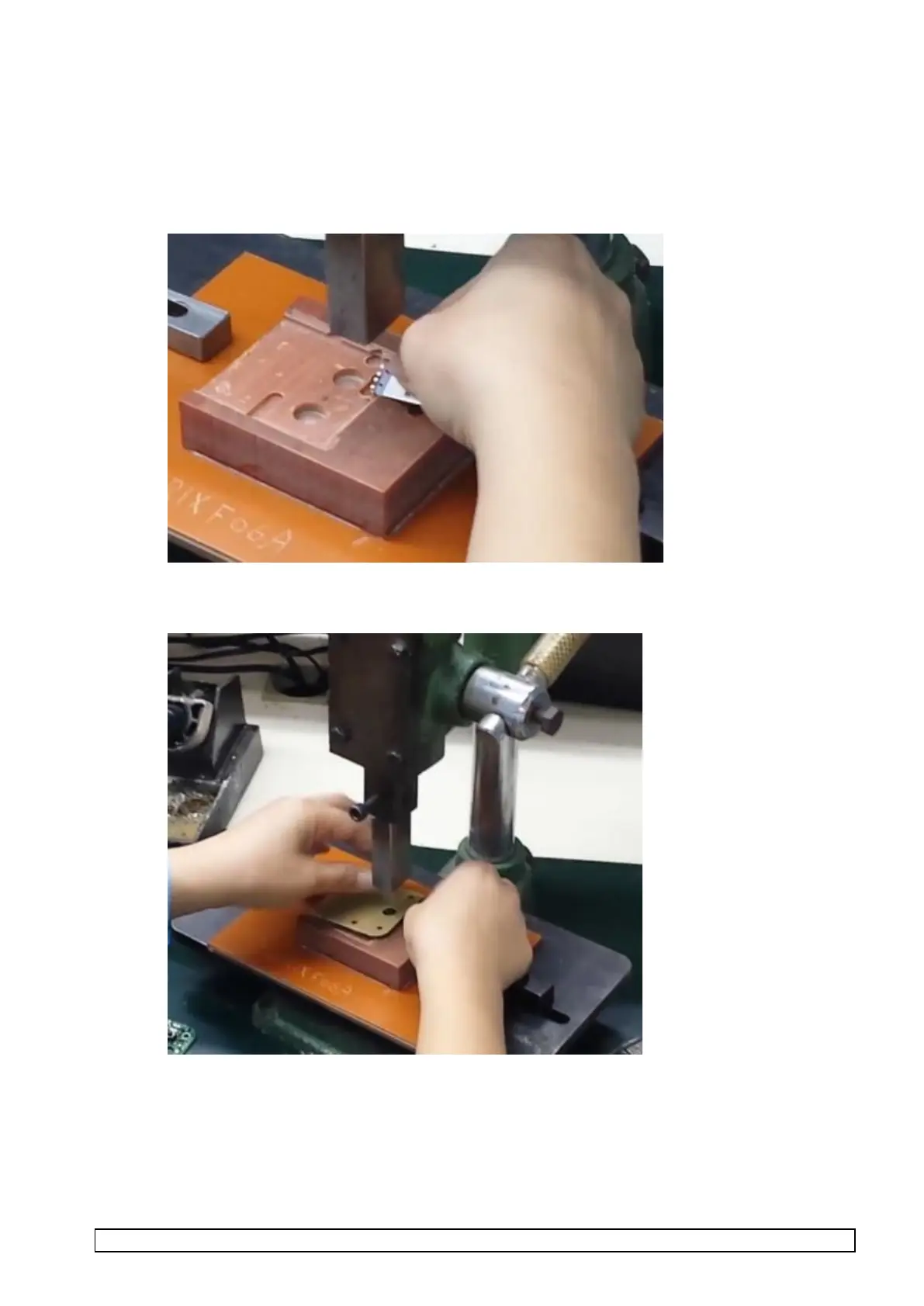

1. Place USB connector into USB connector mounting jig
2. Place PCBA, making sure to align the mounting tabs with the holes in the PCBA
