LogTag UTRIX Work Instruction Manual Revision 1.07 MP Release Page 27/52
2.6 Screw in case screws
USE Philips B type DIA2.0 x 6mm length, Ni Plate
Screw into case with just enough torque to bed screw heads into countersunk holes.
NOTE: Screw heads must not be above surface of case.
Max screw torque: 2 Inch-pound (Lbin) / 0.225 newton metre (Nm = J = kgm2/s2)

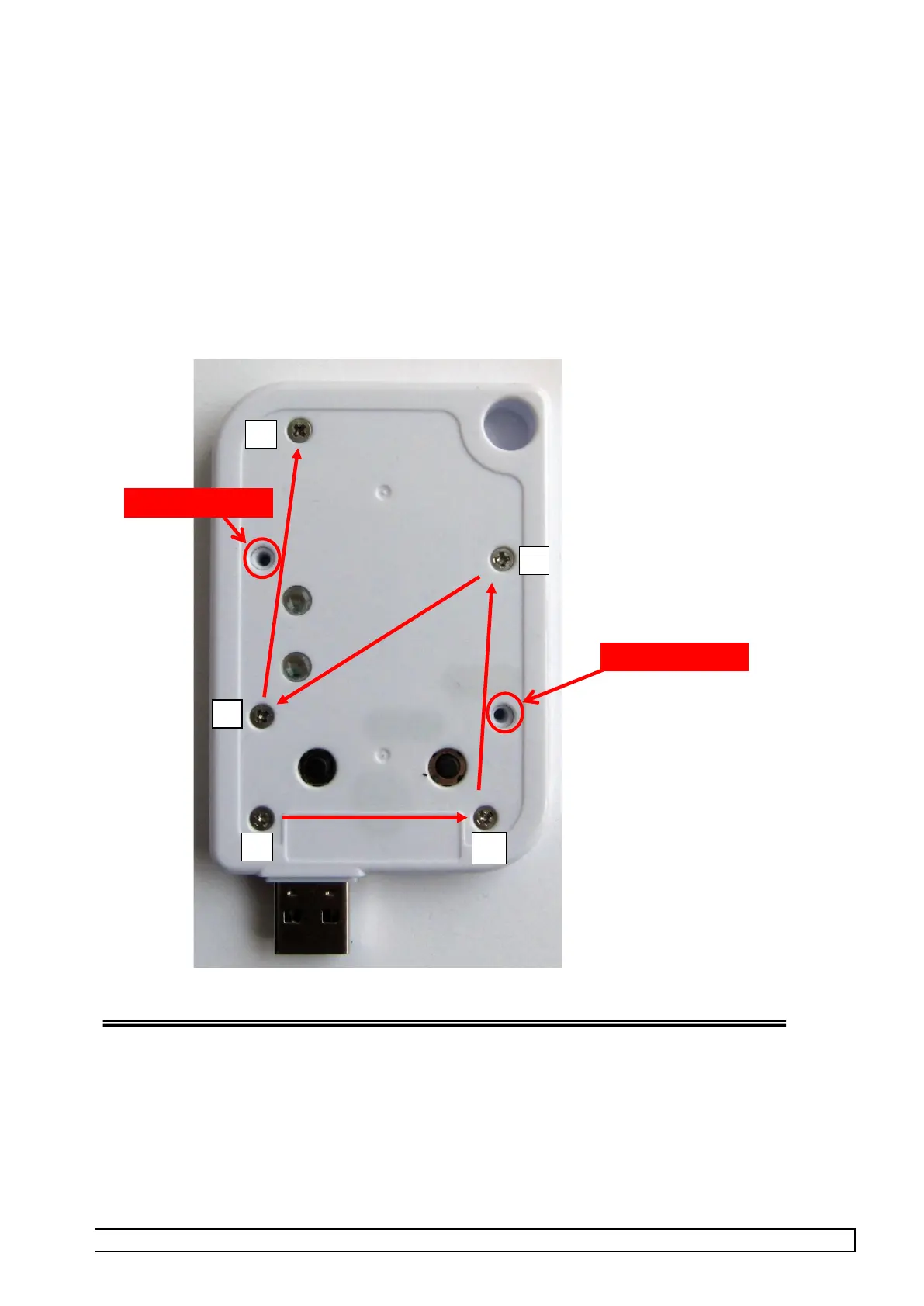

Screw in the order 1-5 shown in illustration below:
5
2
3
4
1
NOT REQUIRED
NOT REQUIRED
