7.5 Raised side rail (71025KP)
The raised side rails are intended for increasing patient safety by preventing
the patient from falling over the side rail. The use of the raised side rails allows
for the use of a thicker mattress in compatible nursing beds. There are
separate instructions for the installation and use of the raised side rail (Raised
side rail – for nursing beds 71025KP).

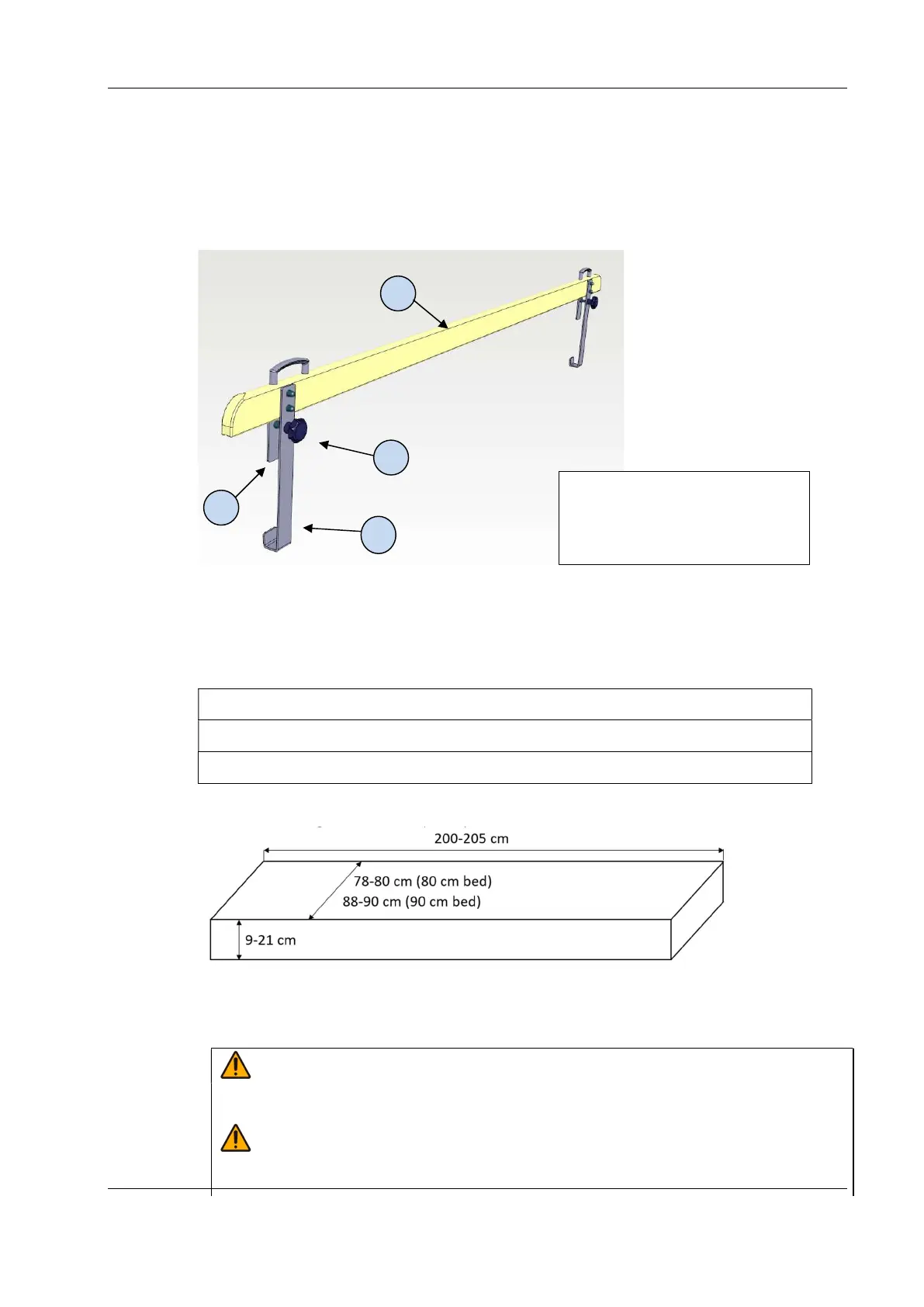

Image 42. Components of the raised side rail
The use of the raised side rails allows for the use of a mattress with a
maximum height of 21 cm in the nursing bed.
Use the following mattress dimensions recommended by the manufacturer:
Bed size
Width
x
Length
x
Height
80
cm bed
78
–
80
cm x
200
-
205
cm x min. 9
–
max. 21
cm
90 cm bed 88–90 cm x 200-205 cm x min. 9 – max. 21 cm
Density of the mattress should be at least 40 kg/m³ and firmness of
mattresses edge, the CLD (40%) -value, should be at least 3.5 KPa.
Image 43. Mattress dimensions for 80/90 cm wide beds with raised side
rails
Read and follow the instructions of the raised side rail for correct
installation and use.
Inspect suitableness of the raised side rail to the nursing bed always
before installation.
1
2
3
4
1. Side rail -wood
2. Fixing bracket (2 pcs)
3. Counterpart (2 pcs)
4. Finger nut (2 pcs)
