.8.

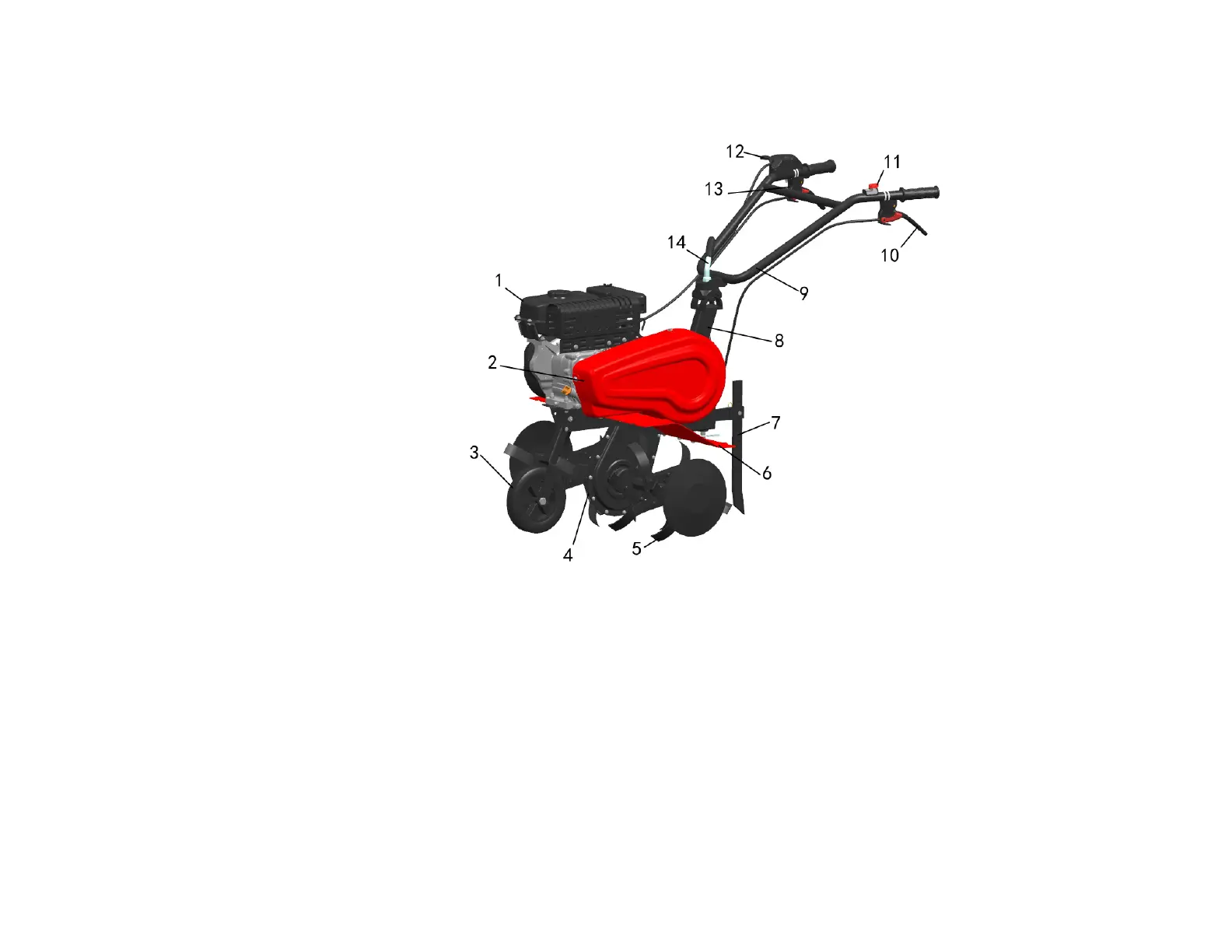

ii. Names of major parts and components of tiller
Figure 1
1. Gasoline engine 2. Belt guard 3. Front wheel assembly
4. Reduction box 5. Tilling blade 6. Fender
7. Damping lever 8. Bracket 9. Handle pipe assembly
10. Clutch handle，forward 11.Extinguishing switch 12. Accelerator valve regulator
13. Clutch handle，reverse 14. Lifting part
