4. Adjustment of belt tension
●If belt tension isn’t in the normal tension range, it needs adjustment. Please loosen the engine’s 4
mounting bolts(See Fig.10 and Fig.11)。
●After loosen the engine’s 4 mounting bolts, then if belt is too loose, push the engine forward, and if
belt is too tight, move backward the engine till belt tension falls in the normal range, finally tighten
engine’s mounting bolts and connection plate’s mounting bolts. (See Fig.12)

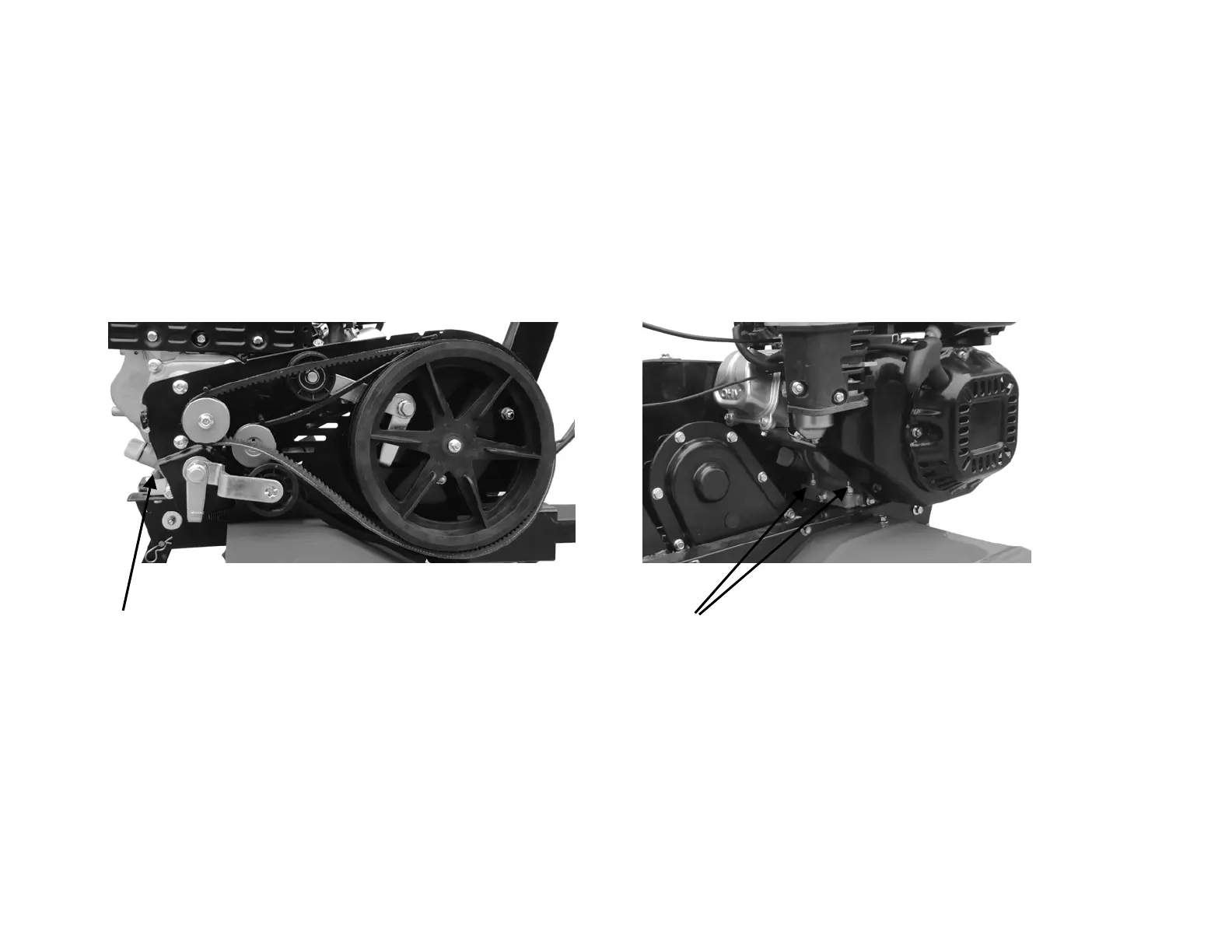

Figure 10 Figure 11
Engine mounting bolt Engine mounting bolt
5. Adjustment of accelerator cable
● Idling within normal speed range: l800±l00 Rpm; within high speed range: 3600±50 rmp, and it
can be adjusted using a speed counter.
● Method of confirming speed and adjustment of it
